SEM ICONDUCTOR
500 mW DO-34 Hermetically
Sealed Glass Zener Voltage
Regulators
Absolute Maximum Ratings
Parameter
Power Dissipation
Storage Temperature Range
Operating Junction Temperature
Lead Temperature (1/16” from case for 10 seconds)
T
A
= 25°C unless otherwise noted
Value
500
-65 to +200
+200
+230
Units
mW
°C
°C
°C
AXIAL LEAD
DO34
DEVICE MARKING DIAGRAM
These ratings are limiting values above which the serviceability of the diode may be impaired.
L
: Logo
Device Code : TCMZxxx
Specification Features:
Zener Voltage Range 2.0 to 56 Volts
DO-34 Package (JEDEC DO-204)
Through-Hole Device Type Mounting
Hermetically Sealed Glass
Compression Bonded Construction
All external surfaces are corrosion resistant and leads are readily solderable
Cathode indicated by polarity band
ELECTRICAL SYMBOL
Cathode
Anode
Electrical Characteristics
Device Type
TCMZ2V0
TCMZ2V2
TCMZ2V4
TCMZ2V7
TCMZ3V0
TCMZ3V3
TCMZ3V6
TCMZ3V9
TCMZ4V3
TCMZ4V7
TCMZ5V1
TCMZ5V6
TCMZ6V2
TCMZ6V8
TCMZ7V5
TCMZ8V2
TCMZ9V1
TCMZ10V
TCMZ11V
TCMZ12V
TCMZ13V
TCMZ15V
V
Z
@ I
ZT
(Volts)
Nominal
2.0
2.2
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
T
A
= 25°C unless otherwise noted
I
ZT
(mA)
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
Z
ZT
@ I
ZT
(Ω)
Max
100
100
100
110
120
120
100
100
100
80
80
60
60
20
20
20
25
30
30
30
35
40
I
R
@ V
R
(µA)
Max
120
120
120
100
50
20
10
5
5
5
5
5
5
2
0.5
0.5
0.5
0.2
0.2
0.2
0.2
0.2
V
R
(Volts)
0.5
0.7
1
1
1
1
1
1
1
1
1.5
2.5
3
3.5
4
5
6
7
8
9
10
11
March 2003 / A
Page 1
TCMZ2V0 through TCMZ56V Series
TAK CHEONG
L xxx
®
TAK CHEONG
SEM ICONDUCTOR
T
A
= 25°C unless otherwise noted
I
ZT
(mA)
Z
ZT
@ I
ZT
(Ω)
Max
I
R
@ V
R
(µA)
Max
V
R
(Volts)
V
Z
@ I
ZT
(Volts)
Nominal
Electrical Characteristics
Device Type
TCMZ16V
16
5
40
0.2
12
TCMZ18V
18
5
45
0.2
13
TCMZ20V
20
5
45
0.2
15
TCMZ22V
22
5
30
0.2
17
TCMZ24V
24
5
35
0.2
19
TCMZ27V
27
5
45
0.2
21
TCMZ30V
30
5
55
0.2
23
TCMZ33V
33
5
65
0.2
25
TCMZ36V
36
5
75
0.2
27
TCMZ39V
39
5
85
0.2
30
TCMZ43V
43
5
90
0.2
33
TCMZ47V
47
5
90
0.2
36
TCMZ51V
51
5
110
0.2
39
TCMZ56V
56
5
110
0.2
43
V
F
Forward Voltage = 1.2 V Maximum @
I
F
= 200 mA for all types
Notes:
1. The type numbers listed have zener voltage min/max limits as shown and have a standard tolerance on the nominal zener
voltage of 5%.
2. For detailed information on price, availability and delivery of nominal zener voltages between the voltages shown and tighter
voltage tolerances, contact your nearest Tak Cheong Electronics representative.
3. The zener impedance is derived from the 60-cycle ac voltage, which results when an ac current having an rms value equal to
10% of the dc zener current (I
ZT
or
I
ZK
) is superimposed to
I
ZT
or
I
ZK.
Electrical Symbol Definition
Symbol
V
Z
I
ZT
Z
ZT
I
ZK
Z
ZK
I
R
V
R
I
F
V
F
Parameter
Reverse Zener Voltage @
I
ZT
Reverse Current
Maximum Zener Impedance @
I
ZT
Reverse Current
Maximum Zener Impedance @
I
ZK
Reverse Leakage Current @
V
R
Breakdown Voltage
Forward Current
Forward Voltage @
I
F
Typical Characteristics
I
(mA)
I
F
V
Z
V
R
(V)
I
R
I
ZT
V
F
(mV)
V
(nA)
(mA)
Ordering Information
Device
TCMZxxx
TCMZxxx.TB
TCMZxxx.TR
TCMZxxx
Package
Bulk
Tape and Ammo
Tape and Reel
Quantity
10,000
5,000
10,000
Others (…contact Tak Cheong sales representatives)

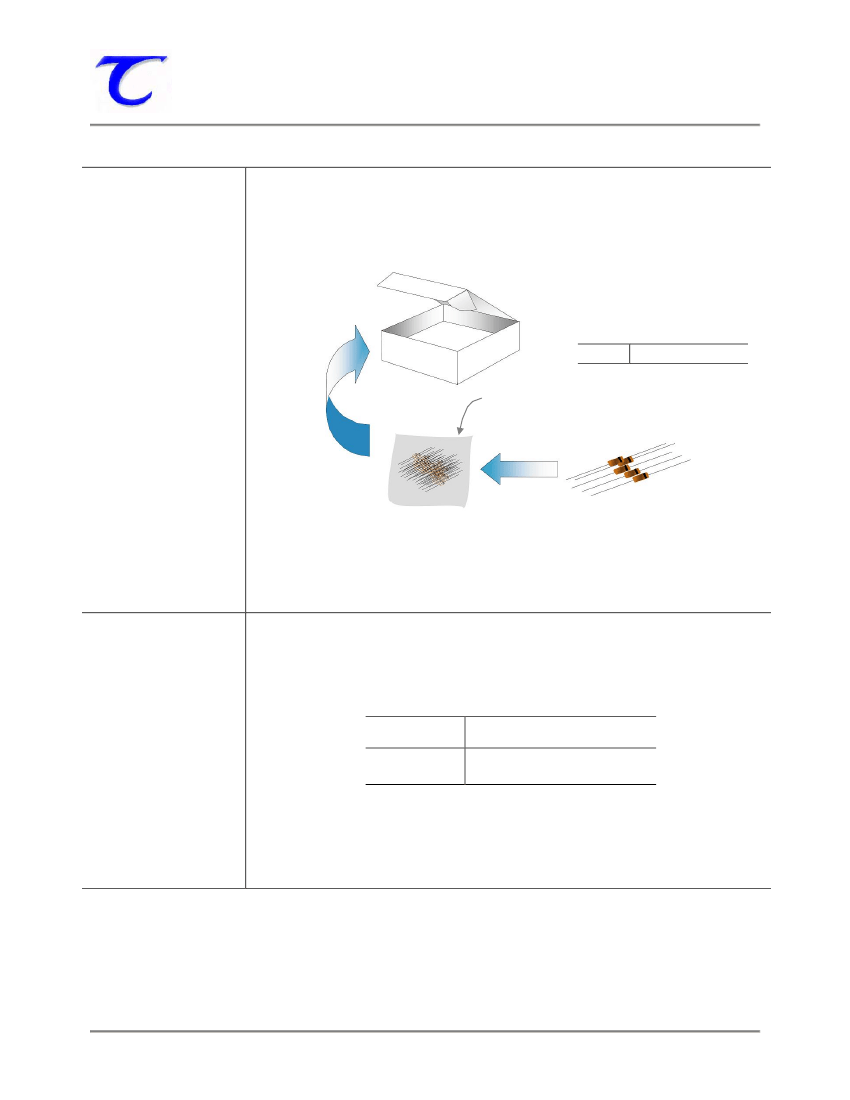

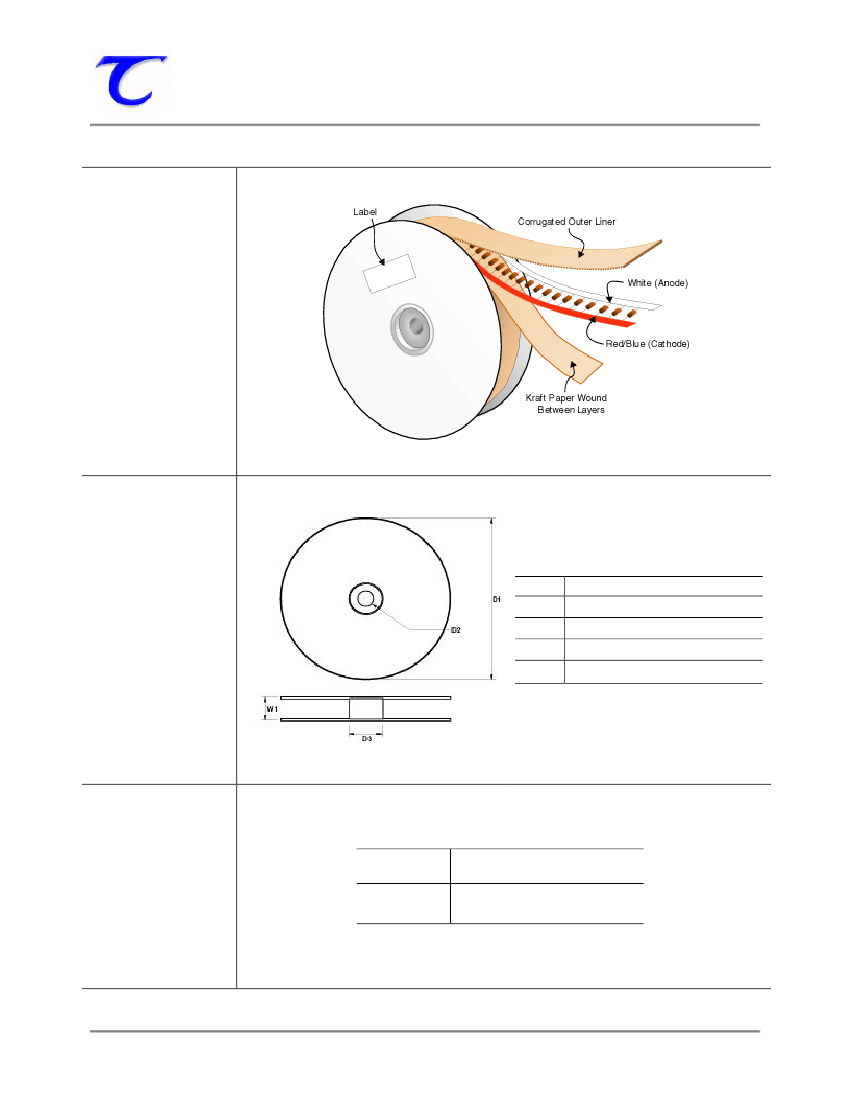

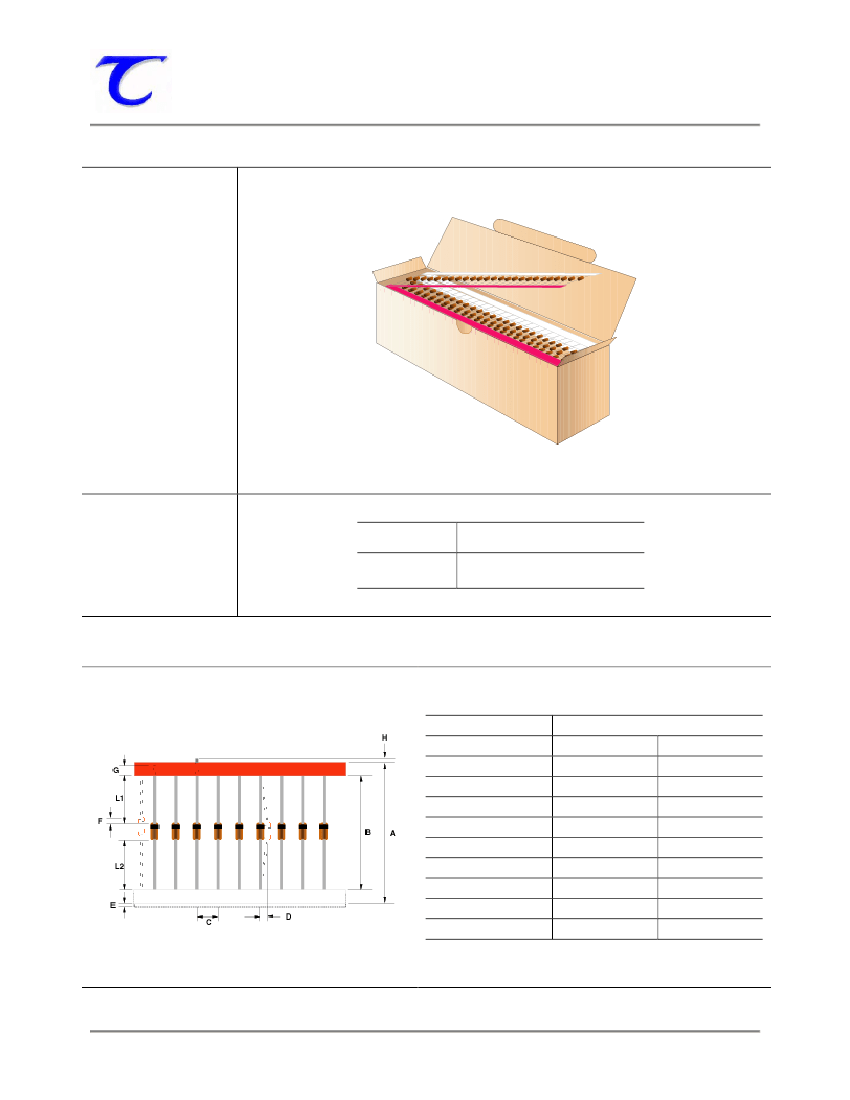

Axial-Lead Tape Packaging Standards
This axial-lead component’s packaging requirements use in automatic testing and assembly equipment. And this standard practices for
lead-tape packaging of axial-lead components meets the requirements of EIA Standard RS-296-D “Lead-taping of Components on Axial
Lead Configuration for Automatic Insertion”.
March 2003 / A
Page 2
