PH3S17-212GDB4/2.3-U datasheet, PDF

Datasheet> All Categories > The connector> The connector> PH3S17-212GDB4/2.3-U

PH3S17-212GDB4/2.3-U: DescriptionBoard Connector, 24 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size237KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

PH3S17-212GDB4/2.3-U Overview

Board Connector, 24 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle

PH3S17-212GDB4/2.3-U Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Amtek Technology Co., Ltd.
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.118 inch
subject depth	0.067 inch
body length	0.6 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
JESD-609 code	e4
Manufacturer's serial number	PH3S
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.091 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	24

Preview

Download Datasheet

View All

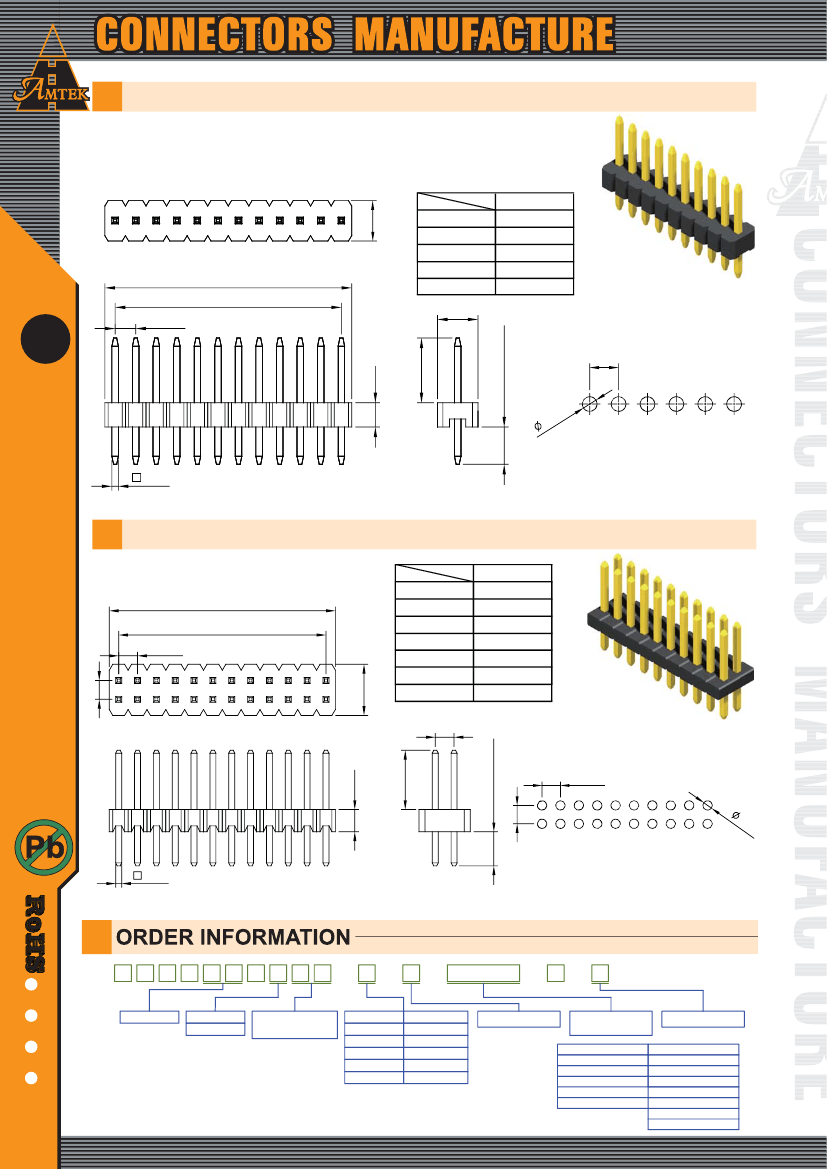

Pin Header 1.27mm SQ Pin=0.4mm 1 Row H=1.0/1.5/1.7/2.0/2.5mm Straight Type

Specifications

Current Rate:1 AMP

Insulation Resistance:1000MΩ Min.

Contact Resistance:20mΩ Max.

Dielectric Voltage:500V AC for one minute

Operation Temperature:-40°C to +105°C

Material

Insulator:Polyester,UL 94V-0

◎

Standard:Nylon 6T

Terminal:Copper Alloy

Plating:Gold Plated

1.27 x No. of Positions±0.40

1.27x(No. of Contacts-1)±0.15

1.27

H=1.0mm

H=1.5mm

H=1.7mm

H=2.0mm

H=2.5mm

Dim W

2.10

2.50

A(4.00)±0.25

B(2.30)±0.25

1.27

A(4.00)±0.25

B(2.30)±0.25

1.27

in Header 1.27mm

2-17

1.27

0.6

Recommended PCB Layout

(PCB TOLERANCE ±0.05)

0.40

Part No.:PH3S10/15/17/20/25-1XX-U

Pin Header 1.27mm SQ Pin=0.4mm 2 Row H=0.85/1.0/1.5/1.6/1.7/2.0/2.5mm Straight Type

1.27 x No. of Positions±0.40

1.27x(No. of Contacts/2-1)±0.15

1.27

H=0.85mm

H=1.0mm

H=1.5mm

H=1.6mm

H=1.7mm

H=2.0mm

H=2.5mm

Dim W

3.40

3.00

1.27

0.6

0.40

Recommended PCB Layout

(PCB TOLERANCE ±0.05)

Part No.:PH3S08/10/15/16/17/20/25-2XX-U

P H 3 S X X - X X X

Insulator Height

1:Single Row

2:Dual Row

No. of Contacts Per Row

(02~50)

◎G:Gold

Flash

GA:Gold 5u"

GB:Gold 10u"

GC:Gold 20u"

GD:Gold 30u"

T:Tin Plated

S:Selective

SA:Selective 5u"

SB:Selective 10u"

SC:Selective 20u"

SD:Selective 30u"

TE:Tin 200u"

A/B

◎B:Black

Insulator

Fill in Dimensions For

Special Design

Single Row Insulator Height

U:RoHS + Nylon 6T

Dual Row Insulator Height

10:Insulator Height H=1.0mm 08:Insulator Height H=0.85mm

15:Insulator Height H=1.5mm 10:Insulator Height H=1.0mm

17:Insulator Height H=1.7mm

20:Insulator Height H=2.0mm

25:Insulator Height H=2.5mm

15:Insulator Height H=1.5mm

16:Insulator Height H=1.6mm

17:Insulator Height H=1.7mm

20:Insulator Height H=2.0mm

25:Insulator Height H=2.5mm

◎:Standard

Recommended

www.amtek-co.com.tw
