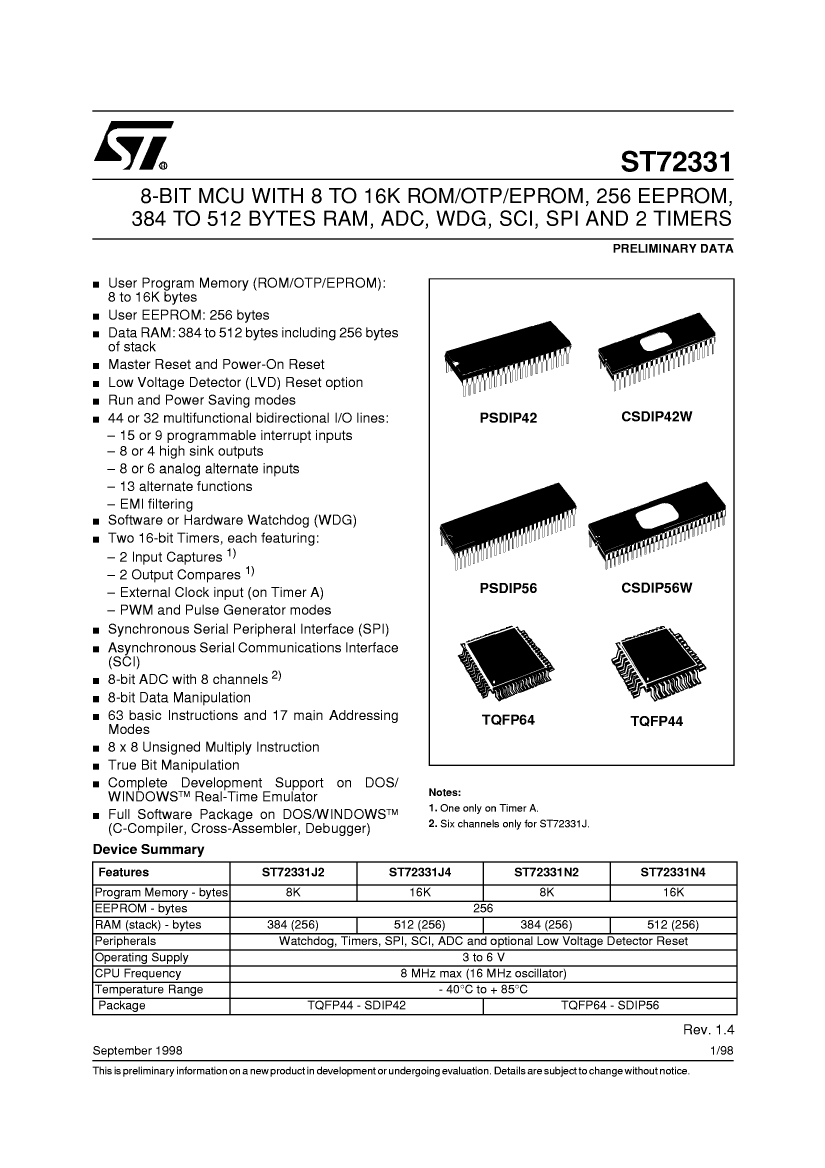

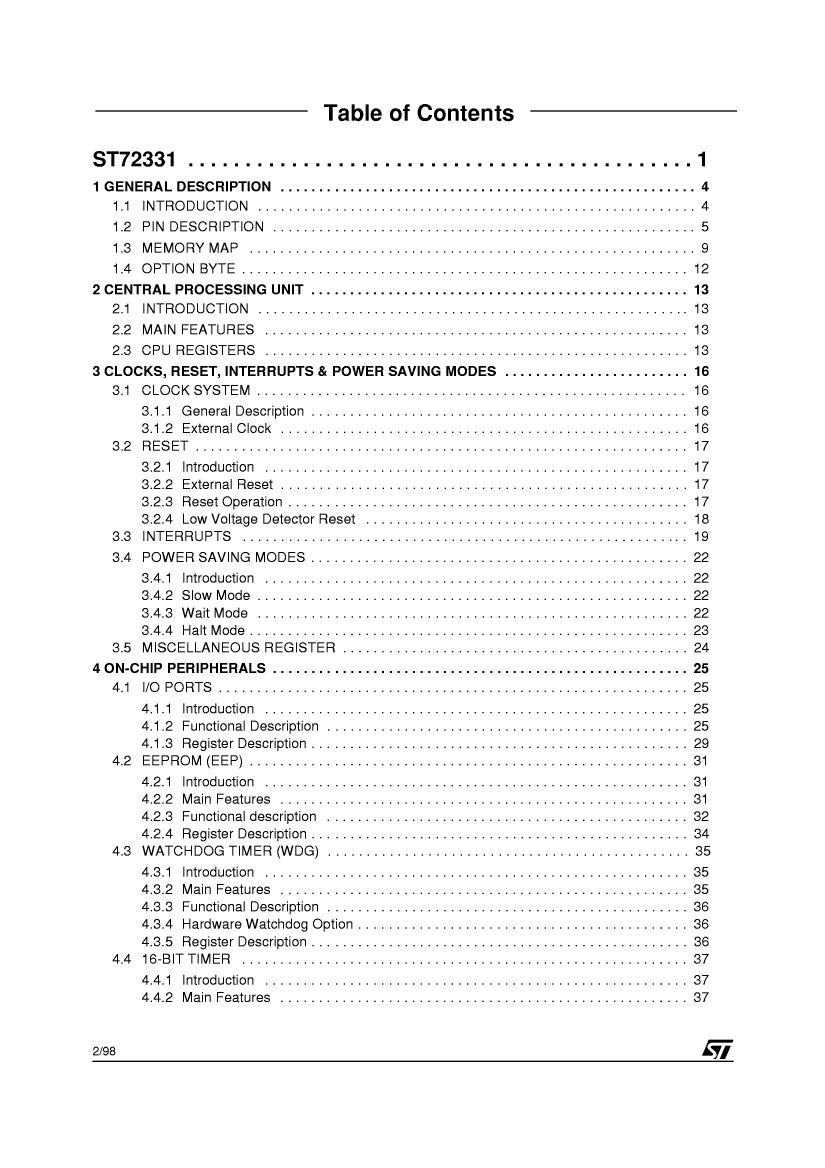

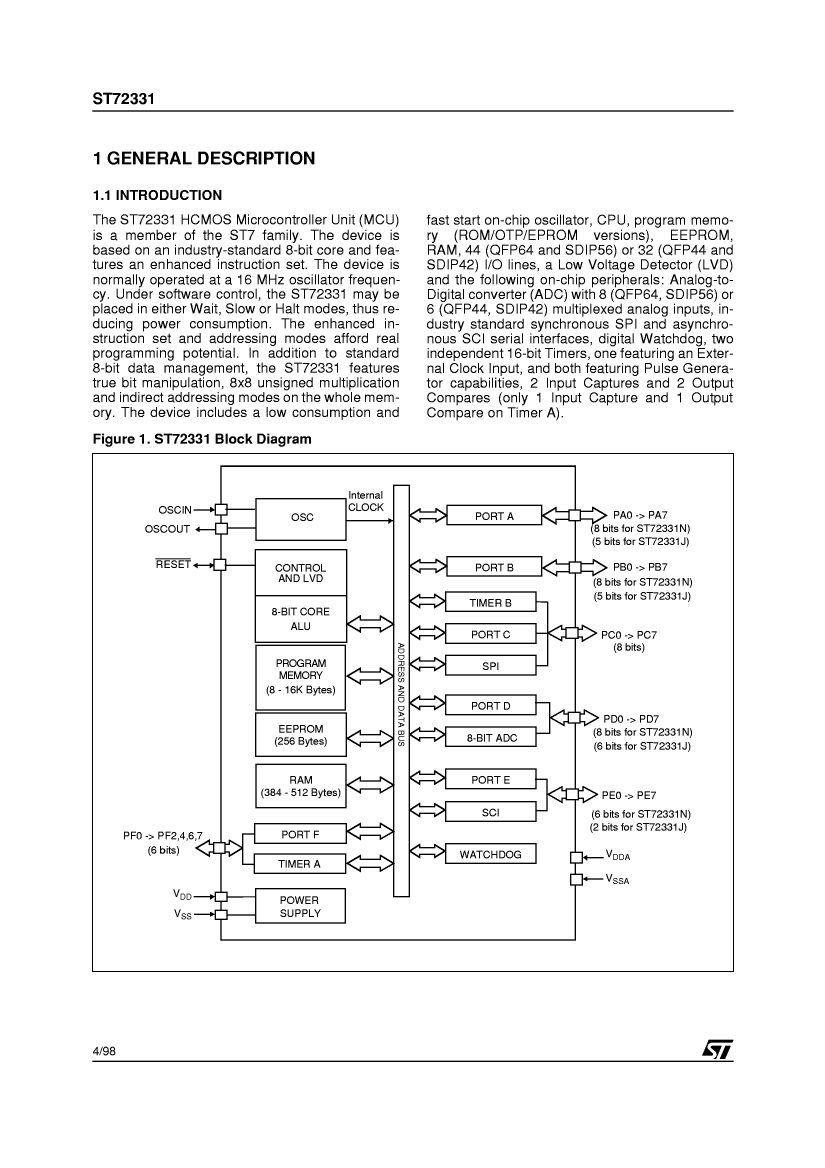

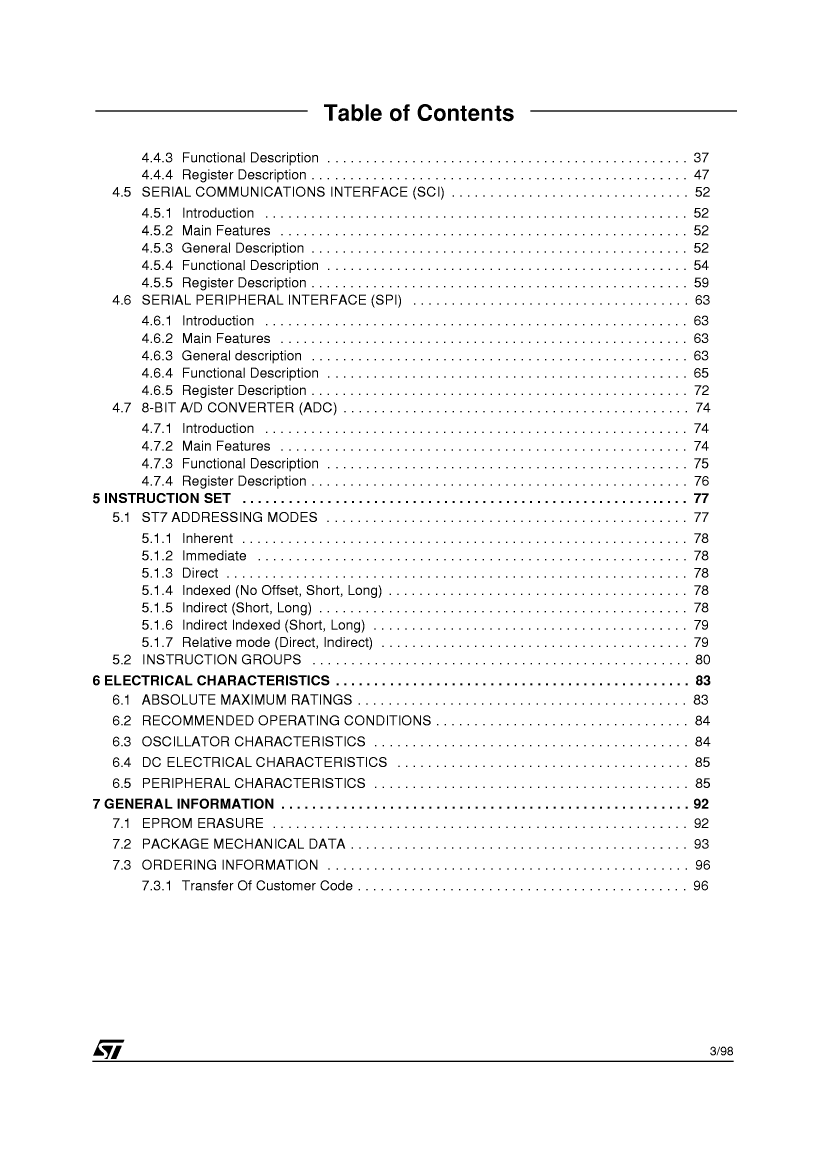

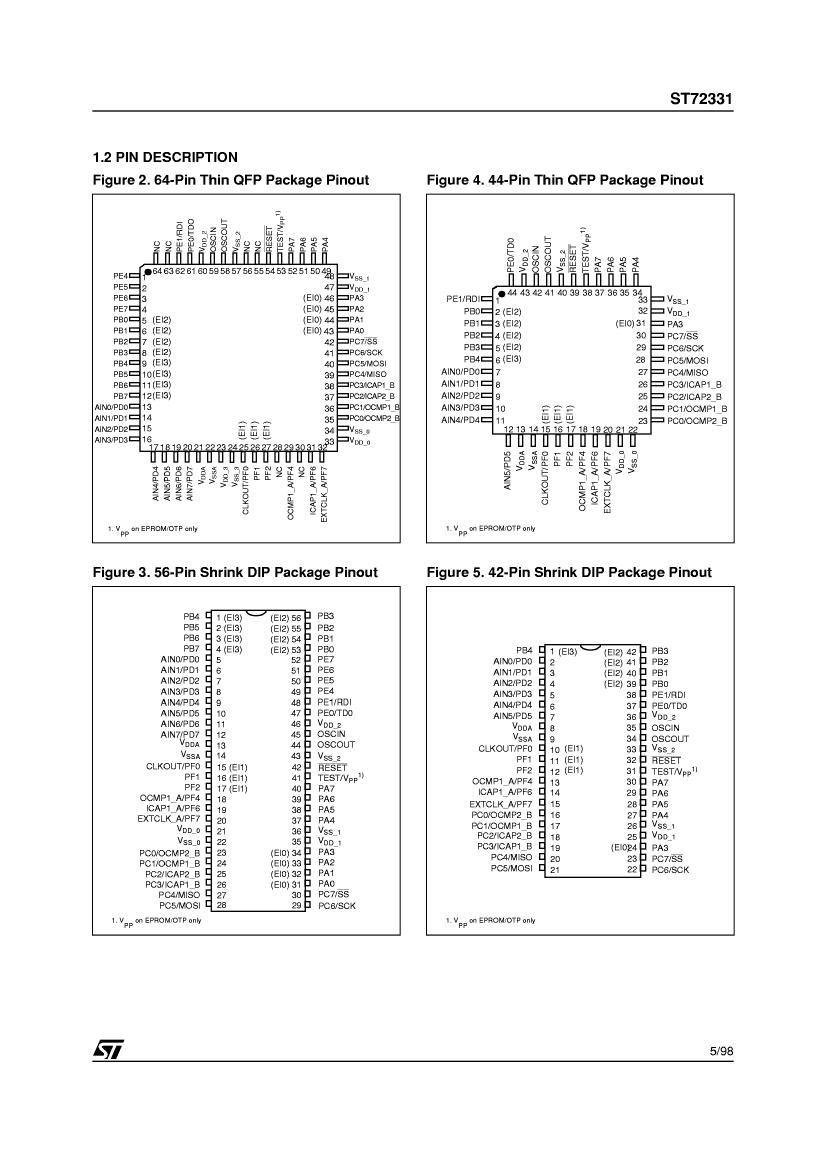

ST72331J2B1/XXX: Description8-BIT, MROM, 8MHz, MICROCONTROLLER, PDIP42, 0.600 INCH, SHRINK, PLASTIC, DIP-42; CategoryThe embedded processor and controller Microcontrollers and processors; File Size3MB，98 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

ST72331J2B1/XXX Overview

8-BIT, MROM, 8MHz, MICROCONTROLLER, PDIP42, 0.600 INCH, SHRINK, PLASTIC, DIP-42

ST72331J2B1/XXX Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Parts packaging code	DIP
package instruction	0.600 INCH, SHRINK, PLASTIC, DIP-42
Contacts	42
Reach Compliance Code	not_compliant
Has ADC	YES
Address bus width
bit size	8
CPU series	ST72
maximum clock frequency	16 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDIP-T42
JESD-609 code	e0
length	36.83 mm
Number of I/O lines	32
Number of terminals	42
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	SDIP
Encapsulate equivalent code	SDIP42,.6
Package shape	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.5/5.5 V
Certification status	Not Qualified
RAM (bytes)	384
rom(word)	8192
ROM programmability	MROM
Maximum seat height	5.08 mm
speed	8 MHz
Maximum slew rate	20 mA
Maximum supply voltage	6 V
Minimum supply voltage	3.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	1.778 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

Preview

Download Datasheet

ST72331J2B1/XXX Related Products

	ST72331J2B1/XXX	ST72331J4T6/XXX	ST72331J4T1/XXX	ST72331J2B6/XXX	ST72331N4T6/XXX	ST72331N4T1/XXX	ST72331N2B6/XXX	ST72331N2B1/XXX
Description	8-BIT, MROM, 8MHz, MICROCONTROLLER, PDIP42, 0.600 INCH, SHRINK, PLASTIC, DIP-42	8-BIT, MROM, 8MHz, MICROCONTROLLER, PQFP44, PLASTIC, TQFP-44	8-BIT, MROM, 8MHz, MICROCONTROLLER, PQFP44, PLASTIC, TQFP-44	8-BIT, MROM, 8MHz, MICROCONTROLLER, PDIP42, 0.600 INCH, SHRINK, PLASTIC, DIP-42	8-BIT, MROM, 8MHz, MICROCONTROLLER, PQFP64, PLASTIC, TQFP-64	8-BIT, MROM, 8MHz, MICROCONTROLLER, PQFP64, PLASTIC, TQFP-64	8-BIT, MROM, 8MHz, MICROCONTROLLER, PDIP56, 0.600 INCH, SHRINK, PLASTIC, DIP-56	8-BIT, MROM, 8MHz, MICROCONTROLLER, PDIP56, 0.600 INCH, SHRINK, PLASTIC, DIP-56
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DIP	QFP	QFP	DIP	QFP	QFP	DIP	DIP
package instruction	0.600 INCH, SHRINK, PLASTIC, DIP-42	PLASTIC, TQFP-44	PLASTIC, TQFP-44	0.600 INCH, SHRINK, PLASTIC, DIP-42	PLASTIC, TQFP-64	PLASTIC, TQFP-64	0.600 INCH, SHRINK, PLASTIC, DIP-56	0.600 INCH, SHRINK, PLASTIC, DIP-56
Contacts	42	44	44	42	64	64	56	56
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
Has ADC	YES	YES	YES	YES	YES	YES	YES	YES
bit size	8	8	8	8	8	8	8	8
CPU series	ST72	ST72	ST72	ST72	ST72	ST72	ST72	ST72
maximum clock frequency	16 MHz	16 MHz	16 MHz	16 MHz	16 MHz	16 MHz	16 MHz	16 MHz
DAC channel	NO	NO	NO	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO	NO	NO	NO
JESD-30 code	R-PDIP-T42	S-PQFP-G44	S-PQFP-G44	R-PDIP-T42	S-PQFP-G64	S-PQFP-G64	R-PDIP-T56	R-PDIP-T56
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
length	36.83 mm	10 mm	10 mm	36.83 mm	14 mm	14 mm	51.75 mm	51.75 mm
Number of I/O lines	32	32	32	32	44	44	44	44
Number of terminals	42	44	44	42	64	64	56	56
Maximum operating temperature	70 °C	85 °C	70 °C	85 °C	85 °C	70 °C	85 °C	70 °C
PWM channel	YES	YES	YES	YES	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SDIP	LQFP	LQFP	SDIP	LQFP	LQFP	SDIP	SDIP
Encapsulate equivalent code	SDIP42,.6	QFP44,.47SQ,32	QFP44,.47SQ,32	SDIP42,.6	QFP64,.66SQ,32	QFP64,.66SQ,32	SDIP56,.6	SDIP56,.6
Package shape	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE	IN-LINE, SHRINK PITCH	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE	IN-LINE, SHRINK PITCH	IN-LINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	3.5/5.5 V	3.5/5.5 V	3.5/5.5 V	3.5/5.5 V	3.5/5.5 V	3.5/5.5 V	3.5/5.5 V	3.5/5.5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	384	512	512	384	512	512	384	384
rom(word)	8192	16384	16384	8192	16384	16384	8192	8192
ROM programmability	MROM	MROM	MROM	MROM	MROM	MROM	MROM	MROM
Maximum seat height	5.08 mm	1.6 mm	1.6 mm	5.08 mm	1.6 mm	1.6 mm	6.35 mm	6.35 mm
speed	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz
Maximum slew rate	20 mA	20 mA	20 mA	20 mA	20 mA	20 mA	20 mA	20 mA
Maximum supply voltage	6 V	6 V	6 V	6 V	6 V	6 V	6 V	6 V
Minimum supply voltage	3.5 V	3.5 V	3.5 V	3.5 V	3.5 V	3.5 V	3.5 V	3.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	NO	YES	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.778 mm	0.8 mm	0.8 mm	1.778 mm	0.8 mm	0.8 mm	1.778 mm	1.778 mm
Terminal location	DUAL	QUAD	QUAD	DUAL	QUAD	QUAD	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	15.24 mm	10 mm	10 mm	15.24 mm	14 mm	14 mm	15.24 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Maker	STMicroelectronics	-	-	-	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
