SC3BH6FX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SC3BH6FX

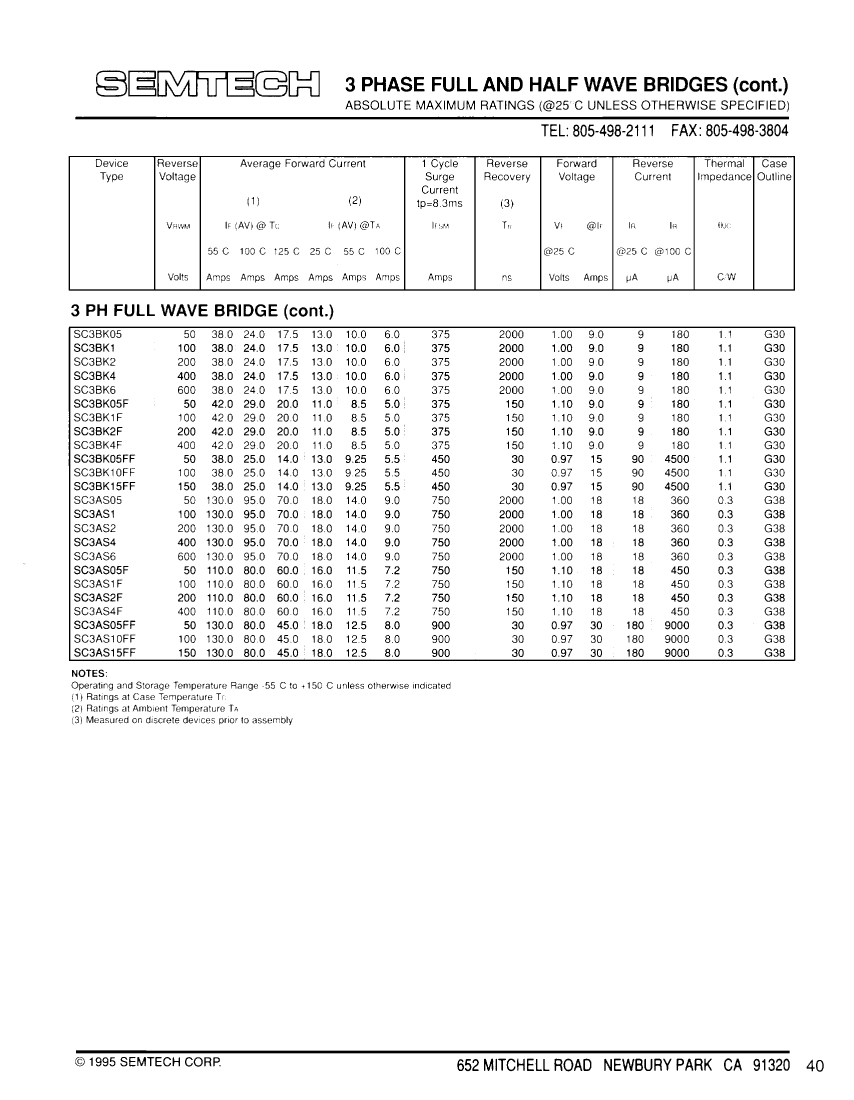

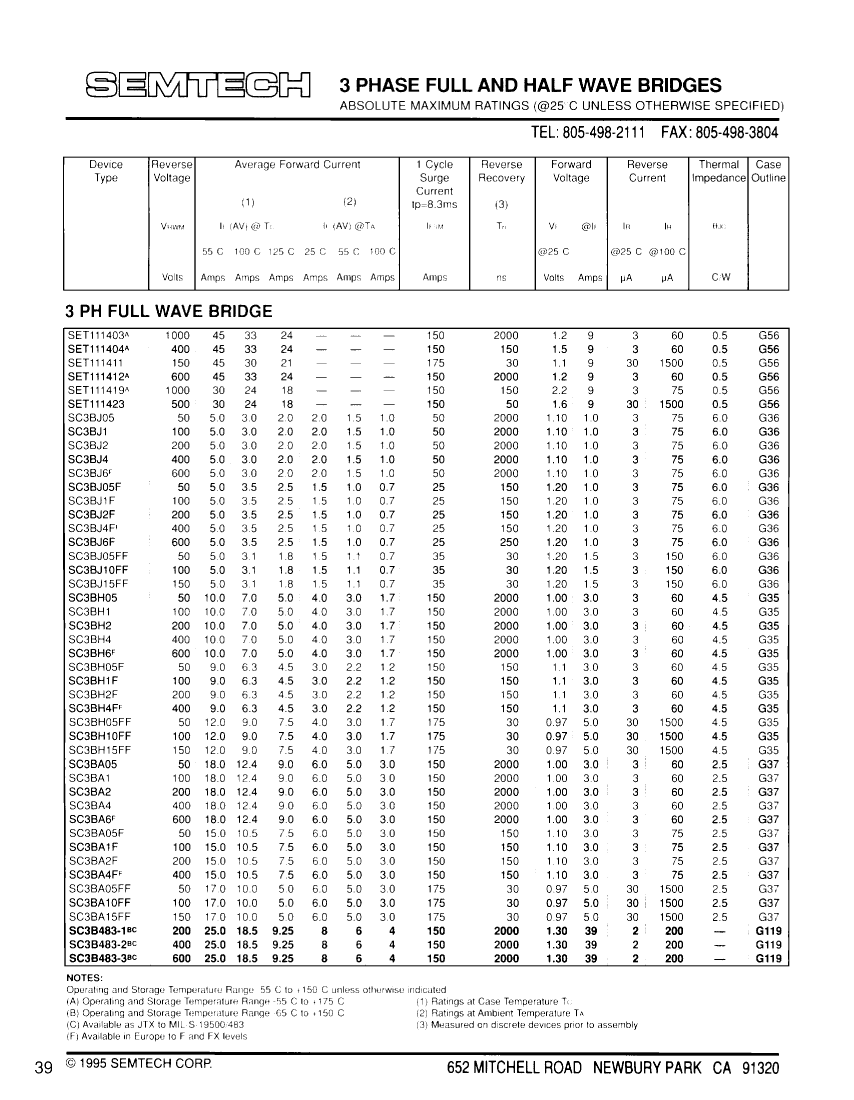

SC3BH6FX: DescriptionBridge Rectifier Diode, 3 Phase, 4A, Silicon, G35, 5 PIN; CategoryDiscrete semiconductor diode; File Size109KB，2 Pages; ManufacturerSEMTECH; Websitehttp://www.semtech.com

Download Datasheet Parametric Compare View All

SC3BH6FX Overview

Bridge Rectifier Diode, 3 Phase, 4A, Silicon, G35, 5 PIN

SC3BH6FX Parametric

Parameter Name	Attribute value
Maker	SEMTECH
package instruction	G35, 5 PIN
Contacts	5
Manufacturer packaging code	G35
Reach Compliance Code	unknown
Configuration	BRIDGE, 6 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
JESD-30 code	R-PUFM-X5
Maximum non-repetitive peak forward current	150 A
Number of components	6
Phase	3
Number of terminals	5
Maximum output current	4 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UPPER

Preview

Download Datasheet

View All

SC3BH6FX Related Products

	SC3BH6FX	SC3BA4FF	SC3BA4FFX	SC3BJ4FF	SC3BJ4FFX	SC3BH4FFX	SC3BA6FX	SC3BH4FF	SC3BJ6FX	SC3BA6F
Description	Bridge Rectifier Diode, 3 Phase, 4A, Silicon, G35, 5 PIN	Bridge Rectifier Diode, 3 Phase, 6A, Silicon, G37, 5 PIN	Bridge Rectifier Diode, 3 Phase, 6A, Silicon, G37, 5 PIN	Bridge Rectifier Diode, 3 Phase, 1.5A, Silicon, G36, 5 PIN	Bridge Rectifier Diode, 3 Phase, 1.5A, Silicon, G36, 5 PIN	Bridge Rectifier Diode, 3 Phase, 3A, Silicon, G35, 5 PIN	Bridge Rectifier Diode, 3 Phase, 6A, Silicon, G37, 5 PIN	Bridge Rectifier Diode, 3 Phase, 3A, Silicon, G35, 5 PIN	Bridge Rectifier Diode, 3 Phase, 2A, Silicon, G36, 5 PIN	Bridge Rectifier Diode, 3 Phase, 6A, Silicon, G37, 5 PIN
Maker	SEMTECH	SEMTECH	SEMTECH	SEMTECH	SEMTECH	SEMTECH	SEMTECH	SEMTECH	SEMTECH	SEMTECH
package instruction	G35, 5 PIN	G37, 5 PIN	G37, 5 PIN	G36, 5 PIN	G36, 5 PIN	G35, 5 PIN	R-PUFM-D5	G35, 5 PIN	G36, 5 PIN	G37, 5 PIN
Contacts	5	5	5	5	5	5	5	5	5	5
Manufacturer packaging code	G35	G37	G37	G36	G36	G35	G37	G35	G36	G37
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Configuration	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
JESD-30 code	R-PUFM-X5	R-PUFM-D5	R-PUFM-D5	R-PUFM-X5	R-PUFM-X5	R-PUFM-X5	R-PUFM-D5	R-PUFM-X5	R-PUFM-X5	R-PUFM-D5
Maximum non-repetitive peak forward current	150 A	150 A	150 A	25 A	25 A	150 A	150 A	150 A	50 A	150 A
Number of components	6	6	6	6	6	6	6	6	6	6
Phase	3	3	3	3	3	3	3	3	3	3
Number of terminals	5	5	5	5	5	5	5	5	5	5
Maximum output current	4 A	6 A	6 A	1.5 A	1.5 A	3 A	6 A	3 A	2 A	6 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	UNSPECIFIED	SOLDER LUG	SOLDER LUG	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	SOLDER LUG	UNSPECIFIED	UNSPECIFIED	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
