P Series
Low Profile Key Switches
Features/Benefits
•
Low profile design
•
Multi-pole and multi-position
•
Panel and PCB mounting
•
Variety of termination styles
•
RoHS Compliant
Typical Applications
•
CATV
•
Low cost security devices
•
Lawn equipment
Models Available
Specifications
CONTACT RATING: Q contact material: 4 AMPS @ 125 V AC or
28 V DC; 2 AMPS @ 250 V AC (UL/CSA). See page L-46 for
additional ratings.
ELECTRICAL LIFE: 10,000 make-and-break cycles at full load.
CONTACT RESISTANCE: Below 10 mΩ typ. initial
@ 2-4 V DC, 100 mA, for both silver and gold plated contacts.
INSULATION RESISTANCE: 109
Ω
min.
DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level.
INDEXING: 45º or 90º, 2-3 positions. Other functions available,
consult Customer Service Center.
OPERATING & STORAGE TEMPERATURE: -30ºC to 65ºC
Materials
HOUSING: One piece, 6/6 nylon (UL94V-2), black. Finish, matte.
KEY: One nickel plated brass key.
CONTACTS AND TERMINALS: Q contact material: Copper, silver
plated. See page K-46 for additional contact materials.
CONTACT SPRING: Music wire or stainless steel.
TERMINAL SEAL: Epoxy.
NOTE:
Any models supplied with Q, B or G contact material are RoHS compliant.
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switchlocks, consult Customer Service Center.
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages K-41 thru K-42. For additional options not shown in catalog, consult Customer Service Center.
K
Rotary
Switch Function
P10113
SP, 90° Index, Keypull pos. 1
P20013
DP, 45° Index, Keypull pos. 1
P20113
DP, 90° Index, Keypull pos. 1
P1011U
SP, 90° Index, keypull pos. 1 & 2
P2011U
DP, 90° Index, keypull pos. 1 & 2
Keying
3
One nickel plated brass key
2
Two nickel plated brass keys
Type
W
Low profile key switch
Finish
M
Matte finish
Terminations
03
Solder lug with hole
02
PC Thru-hole
WC
Wire lead
Mounting Style
N
With nut
Contact Material
Q
Silver
B
Gold
G
Gold over silver
Seal
NONE
No seal
E
Epoxy seal
Color
2
Black
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
K–40
www.ck-components.com
P Series
Low Profile Key Switches
SWITCH FUNCTION
CONNECTED TERMINALS
(see terminal location below.)
NO.
POLES
MODEL
NO.
POS.1
POS. 2
POS. 3
KEY PULL
POSITIONS
SWITCH
CONFIGURATION
INDEXING
DP
P20013
P10113
P20113
P1011U
P2011U
8-1,4-5
1-2,5-6
2-3, 6-7
Position 1
45˚
SP
DP
8-1
8-1,4-5
1-3
1-3,5-7
Position 1
90º
8-1
8-1,4-5
1-3
1-3,5-7
Position 1 & 2
SP
DP
LEGEND
= Detent Positions (45º or 90º ).
= Key pull possible in these positions.
= Stop positions.
TERMINAL NUMBERS
Terminal numbers
molded on bottom
of housing.
All models
with all options when ordered with ‘G’ or ‘Q’ contact material.
K
Rotary
TERM. NOS MOLDED
ON HOUSING
KEYING
3
2
ONE NICKEL PLATED BRASS KEY
TWO NICKEL PLATED BRASS KEYS
NOTE:
All models provided with the same key code.
For replacement keys or special features, consult Customer
Service Center.
LOCK COLOR
TYPE
LOCK TYPE
W
LOW PROFILE KEY SWITCH
OPTION
CODE
NOTE:
Standard housing color is black.
Special colors or mixed housing and key
plug colors available, consult Customer
Service Center.
COLOR
BLACK
2
Third Angle
Projection
Dimensions are shown: mm
Specifications and dimensions subject to change
K–41
www.ck-components.com
P Series
Low Profile Key Switches
FINISH
M
MATTE FINISH
TERMINATIONS
03
SOLDER LUG WITH HOLE

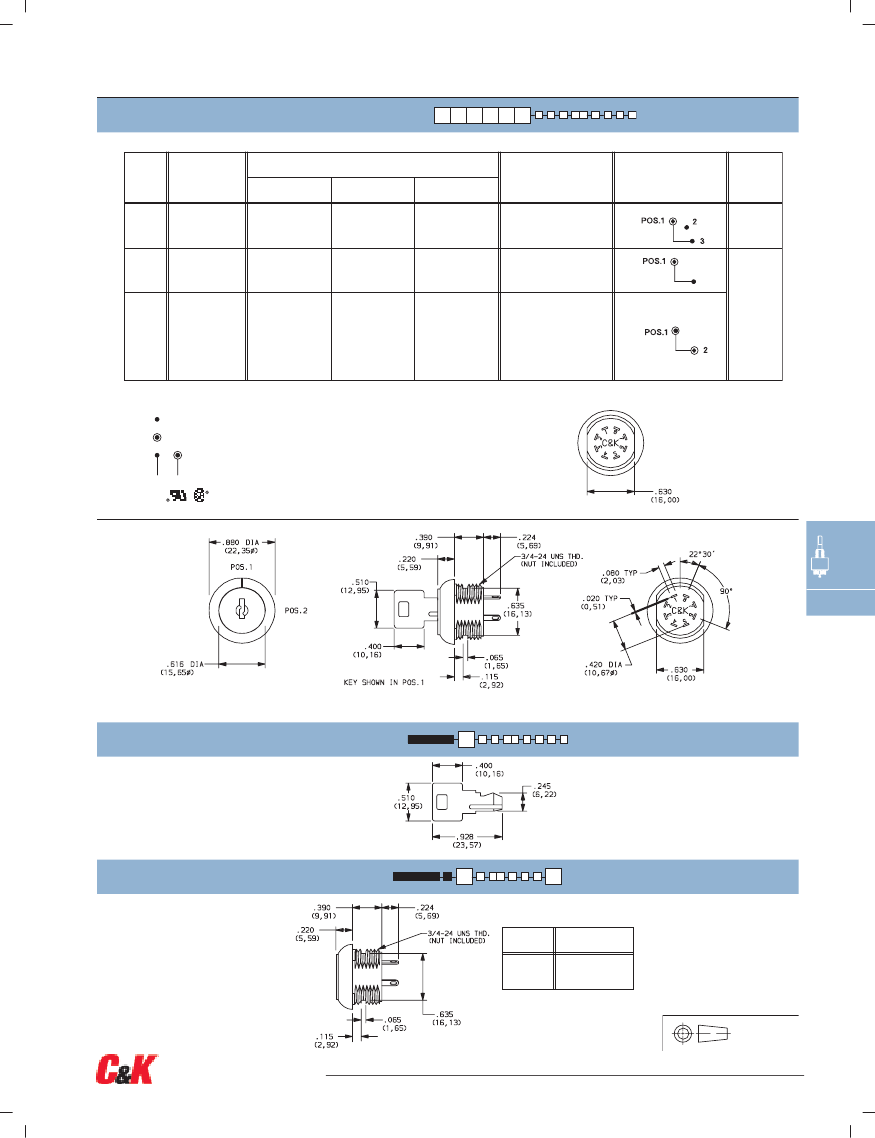

.224
(5,89)
.085
(2,16)
02
.210
(5,33)
PC THRU-HOLE
.062
(1,57)
PC MOUNTING
45
0
TYP.
WC
22 AWG
INSULATED
WIRE
WIRE LEAD
.080
(2,03)
.020 THK,
(0,51)
.046
(1,17)
.050
(1,27)
.020 THK,
(0,51)
.080
(2,03)
.062 DIA.
(1,57 )
TYP.
6.00
(15,24)
.420 DIA
(10,67 )
.50
(12,7)
Black wire standard, other
colors, gages, and lengths
available, consult Customer
Service Center. UL style 1015.
MOUNTING STYLE
N
WITH NUT
PANEL MOUNTING
3/4-24 UNS
.760 DIA.
(19,30 )
.875
(22,23)
.640
(16,26)
1.010
(25,65)
K
Rotary
.125 thk.
(3,18)
Nut part number: 175050700
MOUNTING
STYLE
N (with nut)
PANEL THICKNESS
.215 (5,46) max.
CONTACT MATERIAL
OPTION
CODE
CONTACT AND
TERMINAL MATERIAL
SILVER
2
GOLD
1
RATING
POWER
LOW LEVEL/DRY CIRCUIT
4 AMPS @ 125 V AC or 28 V DC;
2 AMPS @ 250 AC V AC (UL/CSA).
0.4 VA MAX. @ 20 V AC or DC MAX
0.4 VA MAX. @ 20 V AC or DC MAX. or 4 AMPS @ 125 V AC
or 28 V DC; 2 AMPS @ 250 V AC (UL/CSA)
Q
B
G
GOLD OVER SILVER
3
LOW LEVEL/DRY CIRCUIT
OR POWER
* Note: See Technical Data section of this catalog for RoHS compliant and compatible definition and specifications.
1
CONTACTS &
2
CONTACTS &
TERMINALS: Copper, with gold plate over nickel plate.
TERMINALS: Copper, silver plated (Standard with all
termination options).
3
CONTACTS & TERMINALS: Copper, with gold plate over silver plate.
NOTE:
Any models supplied with Q, B or G contact material are RoHS compliant.
All models
with all options when ordered with ‘G’ or ‘Q’ contact material.
NOTE:
‘G’ contact material is equivalent to both ‘B’ and ‘Q” contact materials.
SEAL
NONE
NO SEAL
E
EPOXY SEAL
EPOXY
.075 MAX.
(1,91)
Third Angle
Projection
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
K–42
www.ck-components.com
