SA16CA-TP: DescriptionTrans Voltage Suppressor Diode, 500W, 16V V(RWM), Bidirectional, 1 Element, Silicon, DO-15, ROHS COMPLIANT, PLASTIC PACKAGE-2; CategoryDiscrete semiconductor diode; File Size258KB，4 Pages; ManufacturerMicro Commercial Components (MCC); Environmental Compliance

Download Datasheet Parametric Compare View All

SA16CA-TP Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SA16CA-TP	-	-	View	Buy Now

SA16CA-TP Overview

Trans Voltage Suppressor Diode, 500W, 16V V(RWM), Bidirectional, 1 Element, Silicon, DO-15, ROHS COMPLIANT, PLASTIC PACKAGE-2

SA16CA-TP Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Micro Commercial Components (MCC)
Parts packaging code	DO-15
package instruction	O-PALF-W2
Contacts	2
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	EXCELLENT CLAMPING CAPABILITY, UL RECOGNIZED
Maximum breakdown voltage	19.7 V
Minimum breakdown voltage	17.8 V
Breakdown voltage nominal value	18.75 V
Shell connection	ISOLATED
Maximum clamping voltage	26 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-15
JESD-30 code	O-PALF-W2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak reverse power dissipation	500 W
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	BIDIRECTIONAL
Maximum power dissipation	3 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	16 V
surface mount	NO
technology	AVALANCHE
Terminal surface	Matte Tin (Sn)
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

MCC

Micro Commercial Components

omponents

20736 Marilla

Street Chatsworth

!"#

$ % !"#

SA5.0(C)(A)

THRU

SA170(C)(A)

500WATTS TRANSIENT

VOLTAGE SUPPRESSOR

5.0 TO 170 VOLTS

Features

•

Glass passivated chip

Low leakage

Uni and Bidirectional unit

Excellent clamping capability

UL Recognized file # E331408

Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates

Compliant. See ordering information)

Fast Response Time

Halogen

free available upon request by adding suffix "-HF"

MECHANICAL DATA

•

Epoxy meets UL 94 V-0 flammability rating

Moisture Sensitivity Level 1

Marking: Unidirectional-type number and cathode band

Bidirectional-type number only

Weight: 0.4 grams

DO-15

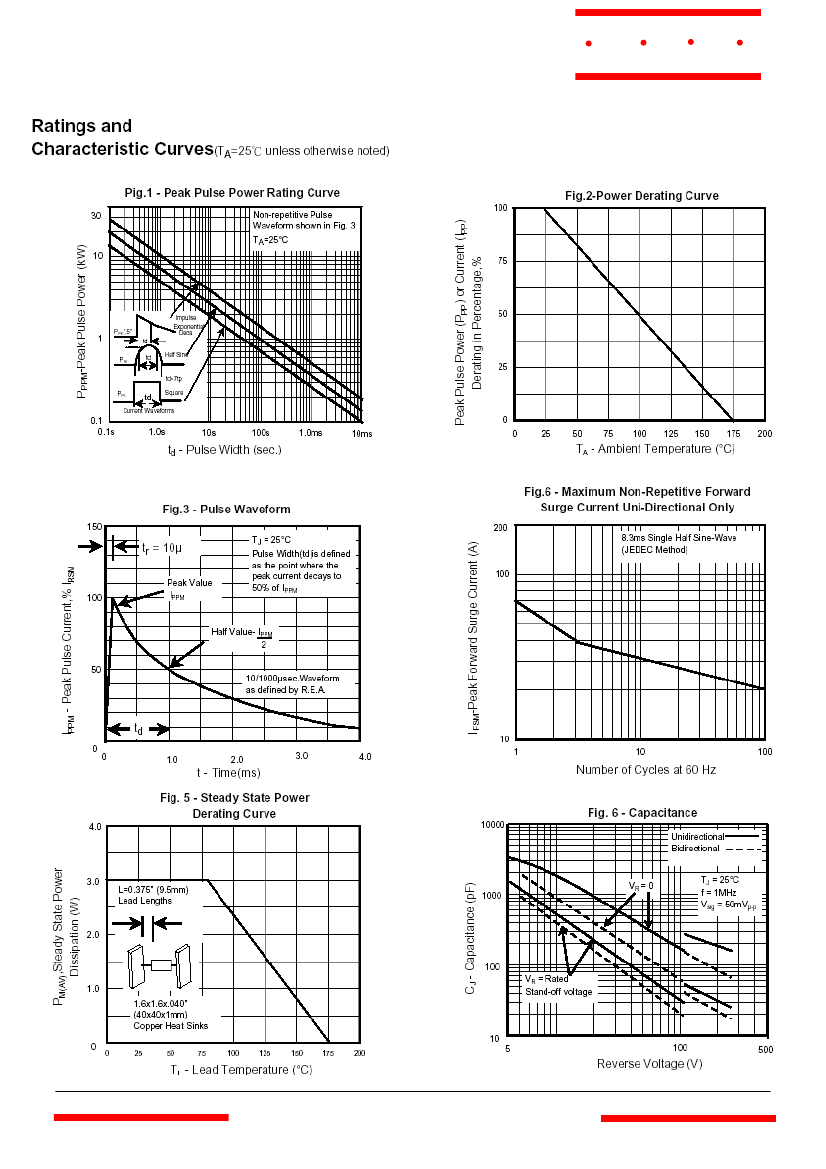

Maximum Ratings

Operating Temperature: -55 C to +175 C

Storage Temperature: -55 C to +175 C

For capacitive load, derate current by 20%

Cathode

Mark

Electrical Characteristics @ 25

C Unless Otherwise Specified

Peak Pulse

Power Dissipation

Maximum

Instantaneous

Forward Voltage

PPM

500W

3.5V

=25 C

=35A;

=25

Steady State Power

M(AV)

3.0

=75

Dissi pation

*Pulse test: Pulse width 300 usec, Duty cycle 1%

Note:

1. Lead in Glass Exemption Applied, see EU Directive Annex 5.

DIM

MIN

0.230

0.104

0.026

1.000

MAX

0.300

0.140

0.034

-----

MIN

5.80

2.60

0.70

25.40

MAX

7.60

3.60

0.90

-----

DIMENSIONS

INCHES

NOTE

Revision:

www.mccsemi.com

1 of 4

2013/07/18

MCC

Micro Commercial Components

Ordering Information :

Device

Part Number-TP

Part Number-AP

Part Number-BP

Note : Adding "-HF" suffix for halogen free, eg. Part Number-TP-HF

Packing

Tape&Reel:

4Kpcs/Reel

Ammo Packing:

3Kpcs/Ammo

Box

Bulk:
