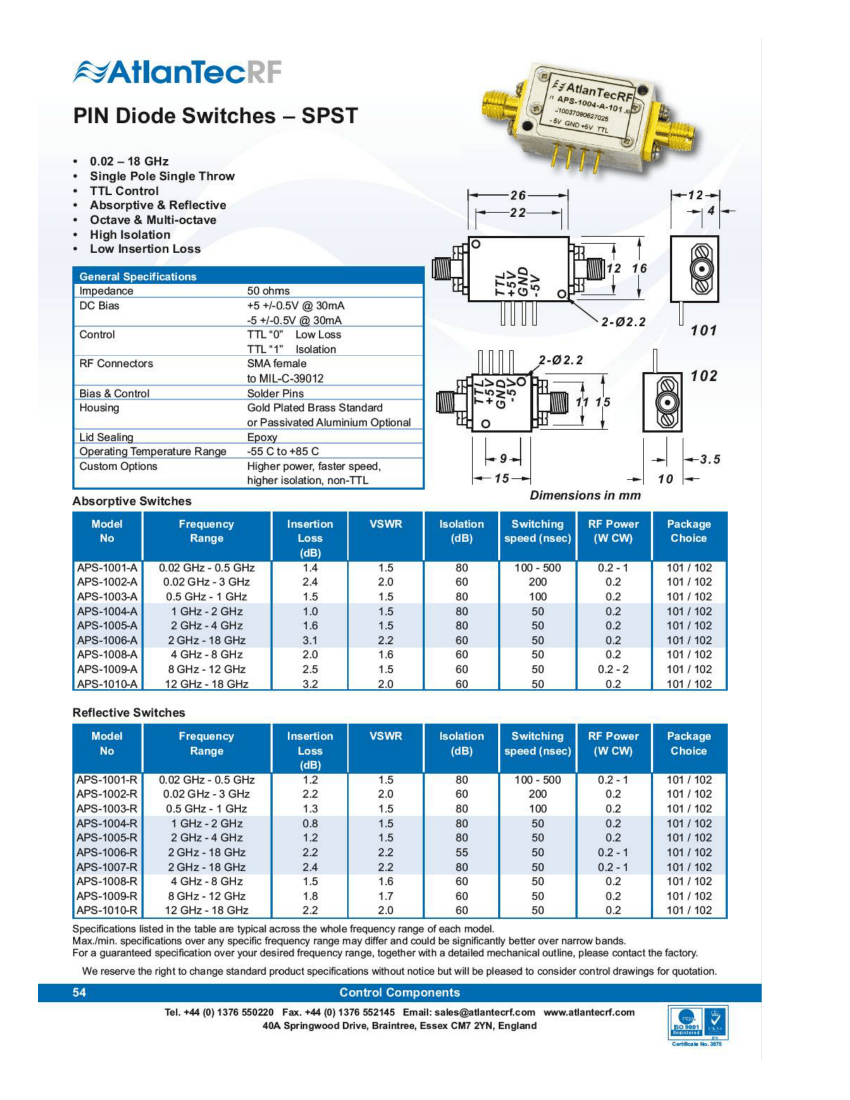

APS-1010-R-102 datasheet, PDF - EEWORLD Datasheet

APS-1010-R-102: DescriptionSPST, 12000MHz Min, 18000MHz Max, 2.2dB Insertion Loss-Max; CategoryWireless rf/communication Radio frequency and microwave; File Size2MB，1 Pages; ManufacturerAtlantic Microwave Ltd

Download Datasheet Parametric Compare View All

APS-1010-R-102 Overview

SPST, 12000MHz Min, 18000MHz Max, 2.2dB Insertion Loss-Max

Parameter Name	Attribute value
Maker	Atlantic Microwave Ltd
Reach Compliance Code	unknown
Other features	SMA-F, HIGH ISOLATION
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	23.01 dBm
Maximum insertion loss	2.2 dB
Maximum operating frequency	18000 MHz
Minimum operating frequency	12000 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	SPST
Maximum voltage standing wave ratio	2

APS-1010-R-102 Related Products

	APS-1010-R-102	APS-1002-R-101	APS-1002-A-101	APS-1002-R-102	APS-1001-A-101	APS-1001-R-102
Description	SPST, 12000MHz Min, 18000MHz Max, 2.2dB Insertion Loss-Max	SPST, 20MHz Min, 3000MHz Max, 2.2dB Insertion Loss-Max	SPST, 20MHz Min, 3000MHz Max, 2.4dB Insertion Loss-Max	SPST, 20MHz Min, 3000MHz Max, 2.2dB Insertion Loss-Max	SPST, 20MHz Min, 500MHz Max, 1.4dB Insertion Loss-Max	SPST, 20MHz Min, 500MHz Max, 1.2dB Insertion Loss-Max
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	SMA-F, HIGH ISOLATION	SMA-F, HIGH ISOLATION	SMA-F, HIGH ISOLATION	SMA-F, HIGH ISOLATION	SMA-F, HIGH ISOLATION	SMA-F, HIGH ISOLATION
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
structure	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL
Maximum input power (CW)	23.01 dBm	23.01 dBm	23.01 dBm	23.01 dBm	30 dBm	30 dBm
Maximum insertion loss	2.2 dB	2.2 dB	2.4 dB	2.2 dB	1.4 dB	1.2 dB
Maximum operating frequency	18000 MHz	3000 MHz	3000 MHz	3000 MHz	500 MHz	500 MHz
Minimum operating frequency	12000 MHz	20 MHz	20 MHz	20 MHz	20 MHz	20 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	SPST	SPST	SPST	SPST	SPST	SPST
Maximum voltage standing wave ratio	2	2	2	2	1.5	1.5
