712-13-146-41-001100 datasheet, PDF

Datasheet> All Categories > The connector> socket> 712-13-146-41-001100

712-13-146-41-001100: DescriptionIC Socket, SIP46, 46 Contact(s), ROHS COMPLIANT; CategoryThe connector socket; File Size218KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

712-13-146-41-001100 Overview

IC Socket, SIP46, 46 Contact(s), ROHS COMPLIANT

712-13-146-41-001100 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Other features	SIP SOCKET
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Gold (Au)
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	SIP46
JESD-609 code	e4
Number of contacts	46
Base Number Matches	1

Preview

Download Datasheet

View All

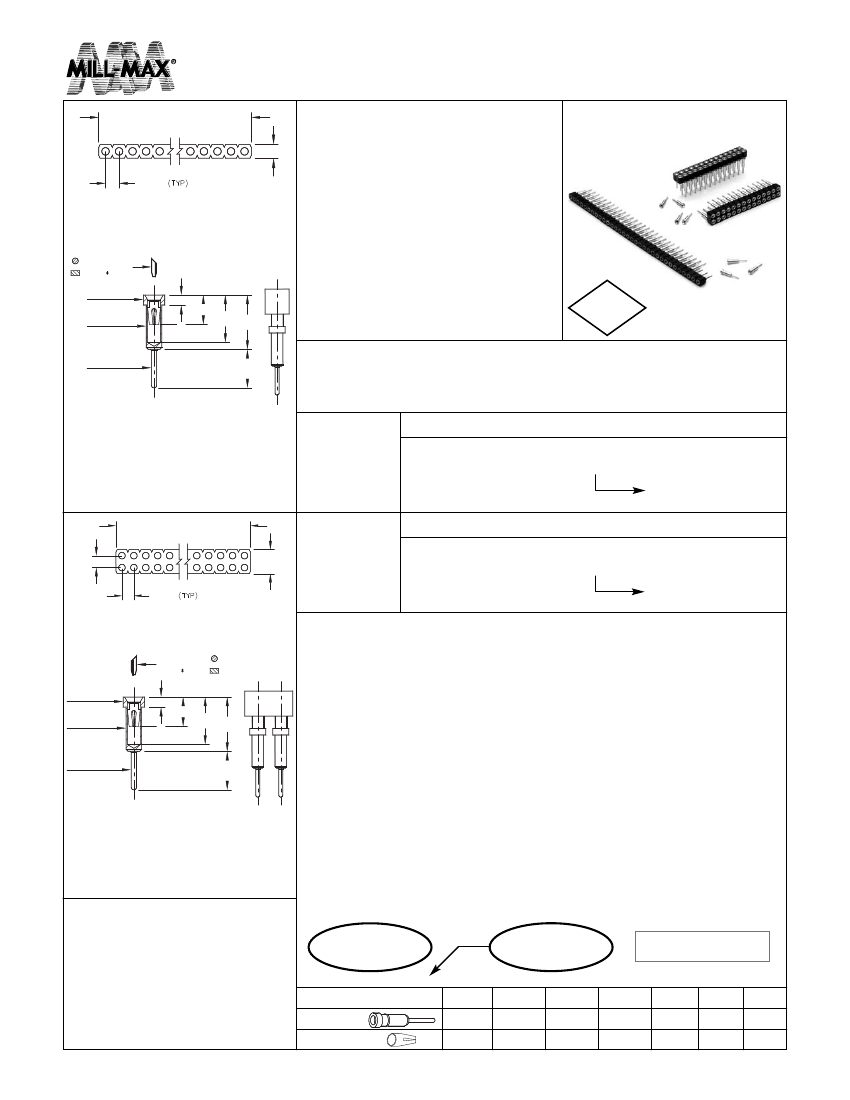

SINGLE-IN-LINE SOCKETS

2,54 Grid Carrier with Solder Tail

Single and Double Row

Number of Pins X 2,54

Series 712

2,54

•

Standard solder tail receptacles can be

mounted as a low profile receptacle or

by the solder tail for use in smaller

diameter holes.

•

Series 712 uses MM #0255 pins.

See page 136 for details.

0,38-0,64

0,25 0,46

1,83 DIA.

1,35 DIA.

0,79

•

Hi-Rel, 4-finger BeCu #30 contact is

rated at 3 amps. See page 218 for

details.

2,62

3,81 4,39

•

Insulators are high temp. thermoplastic.

2002/95/EC

RoHS

0,51 DIA.

3,15

Ordering Information

Single Row (0,71 OR 1,4 min. mounting holes)

Fig. 1

Number of Pins X 2,54 / 2

Fig. 1

712-XX-1_ _-41-001000

Specify # of pins

01-64

Double Row (0,71 OR 1,4 min. mounting holes)

5,08

2,54

Fig. 2

712-XX-2_ _-41-001000

Specify # of pins

02-64

2,54

0,38-0,64

0,25 0,46

1,83 DIA.

1,35 DIA.

0,79

2,62

3,81 4,39

0,51 DIA.

3,15

Fig. 2

For Electrical,

Mechanical & Enviromental

Data, See pg. 4

XX=Plating Code

See Below

For RoHS compliance

select



plating code.

SPECIFY PLATING CODE XX=



0,25µm Au

0,76µm Au

5,08µm Sn/Pb

0,76µm Au



5,08µm Sn

0,76µm Au



Sleeve (Pin)

Contact (Clip)

w w w. m i l l - m a x . c o m



516-922-6000
