NML08J47NTRF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> NML08J47NTRF

NML08J47NTRF: DescriptionGeneral Purpose Inductor, 0.047uH, 5%, 1 Element, SMD, 0805, CHIP, 0805, ROHS COMPLIANT; CategoryPassive components inductor; File Size64KB，5 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric View All

NML08J47NTRF Overview

General Purpose Inductor, 0.047uH, 5%, 1 Element, SMD, 0805, CHIP, 0805, ROHS COMPLIANT

NML08J47NTRF Parametric

Parameter Name	Attribute value
Maker	Nichicon
package instruction	0805
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	0805
DC Resistance	0.7 Ω
Nominal inductance(L)	0.047 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Manufacturer's serial number	NML
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Minimum quality factor (at nominal inductance)	18
Maximum rated current	0.3 A
self resonant frequency	900 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	TIN
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	100 MHz
Tolerance	5%

Preview

Download Datasheet

View All

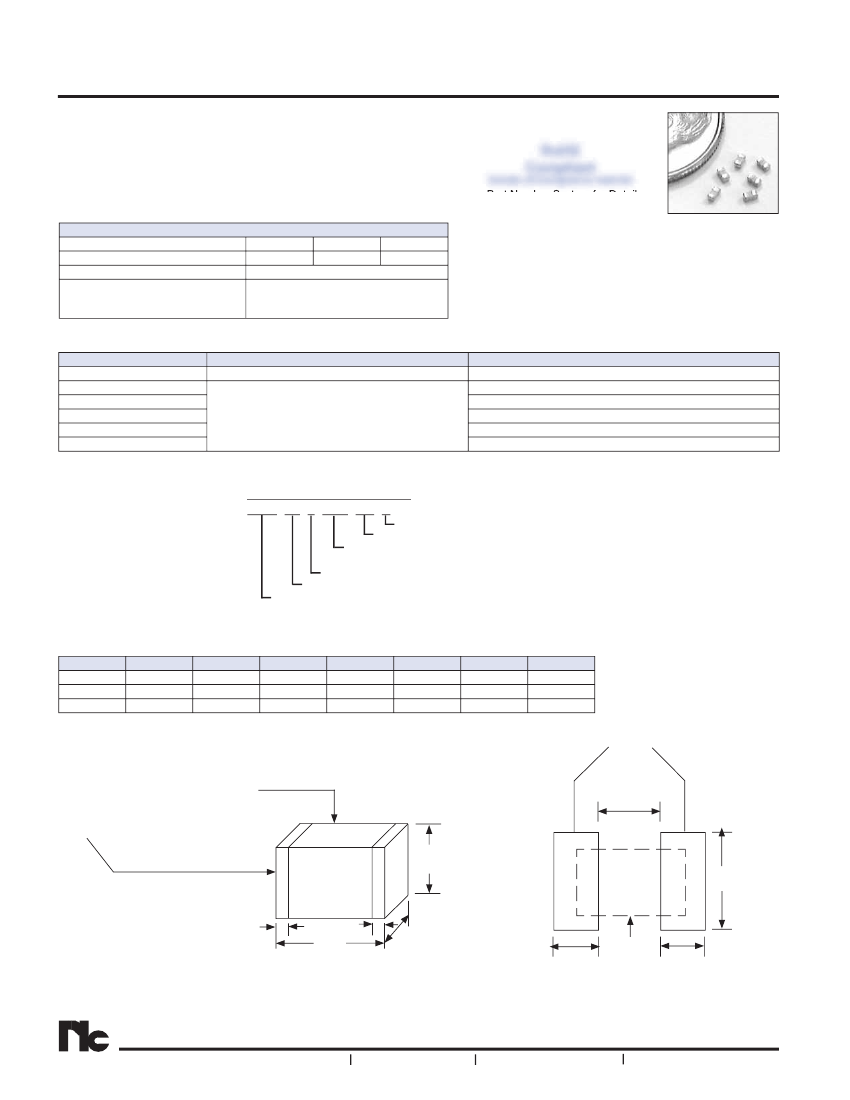

Multilayer Chip Inductors

FEATURES

• Designed for High Frequency Applications

• Available in EIA 0201, 0402 and 0603 Case Sizes

• High Q and SRF Characteristics

• Tight Tolerance D (0.3nH) and J ( 5%)

• Tape and Reel Packaging for Automatic Pick & Place

SPECIFICATIONS

NML

Multilayer High Frequency Inductors

Speciﬁcations

0201

0402

0603

Inductance Range

0.3 ~ 56nH 1 ~ 220nH 1 ~ 330nH

Operating Temperature Range

-40°C ~ +85°C

Q-Factor, Self Resonant Frequency,

See Individual

DC Resistance, Rated DC Current

Product Listings

and Inductance Tolerance

NML Series

RoHS

Compliant

includes all homogeneous materials

*See Part Number System for Details

ENVIRONMENTAL CHARACTERISTICS

Test

Speciﬁcation

Test Method & Condition

Solderability

75% Min. Coverage

After 5 Sec. Dip in +230°C Solder Pot (Post Flux)

After 500 Hrs at +40°C and 90~95% RH (No Load)

Humidity Resistance

Soldering Effect

After 10 Sec. at +270°C (1 Minute, 150°C Pre-Heat)

(1) No Evidence of Damage

Thermal Shock

(2) Inductance Shall Be Within ±10% of Initial Value

After 5 Cycles , +85°C to -40°C within 3 minutes

High Temperature Load Life (3) Q Factor Shall Be Within ±20% of Initial Value

After 500 hours at +85°C with Rated DC Current

Humidity Load Life

After 500 Hrs at +40°C with 90~95% RH at Rated DC Current

PART NUMBER SYSTEM

NML 04 J 22N TR F

RoHS compliant

Packaging: TR = Tape/Reel

Inductance Code (N=decimal point) in nano-henries

(Ex. 2N2 = 2.2nH, 33N=33nH, R10=100nH)

Tolerance Code (C=±0.2nH, D=±0.3nH, G=±2%, J=±5%, K=±10%)

Size Code: 02=0201, 04=0402, 06=0603

Series

COMPONENT AND LAND PATTERN DIMENSIONS

Series

NML02

NML04

NML06

0.6 ± 0.03

1.0 ± 0.10

1.6 ± 0.15

0.3 ± 0.03

0.5 ± 0.10

0.8 ± 0.15

0.33 max.

0.5 ± 0.10

0.8 ± 0.15

0.1 ~ 0.2

0.1 ~ 0.3

0.2 ~ 0.6

0.20 ~ 0.30 0.25 ~ 0.30 0.15 ~ 0.35

0.35 ~ 0.45 0.40 ~ 0.50 0.30 ~ 0.50

0.70 ~ 0.80 0.60 ~ 0.80 0.70 ~ 1.00

Solder

Pads

Body Composition:

/SiO

Termination Material:

Sn over NI barrier over Ag base

Component
