2N5781LEADFREE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2N5781LEADFREE

2N5781LEADFREE: DescriptionSmall Signal Bipolar Transistor, 3.5A I(C), 65V V(BR)CEO, 1-Element, PNP, Silicon, TO-39, TO-39, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size489KB，2 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric Compare View All

2N5781LEADFREE Overview

Small Signal Bipolar Transistor, 3.5A I(C), 65V V(BR)CEO, 1-Element, PNP, Silicon, TO-39, TO-39, 3 PIN

2N5781LEADFREE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	TO-39
package instruction	CYLINDRICAL, O-MBCY-W3
Contacts	3
Reach Compliance Code	compli
ECCN code	EAR99
Maximum collector current (IC)	3.5 A
Collector-emitter maximum voltage	65 V
Configuration	SINGLE
Minimum DC current gain (hFE)	4
JEDEC-95 code	TO-39
JESD-30 code	O-MBCY-W3
JESD-609 code	e3
Number of components	1
Number of terminals	3
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	NO
Terminal surface	MATTE TIN (315)
Terminal form	WIRE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	10
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	8 MHz
Maximum off time (toff)	2500 ns
Maximum opening time (tons)	500 ns
Base Number Matches	1

Preview

Download Datasheet

View All

2N5781 PNP

2N5784 NPN

COMPLEMENTARY SILICON

POWER TRANSISTORS

w w w. c e n t r a l s e m i . c o m

DESCRIPTION:

The CENTRAL SEMICONDUCTOR 2N5781 and

2N5784 types are Complementary Silicon Power

Transistors designed for general purpose switching and

amplifier applications.

MARKING: FULL PART NUMBER

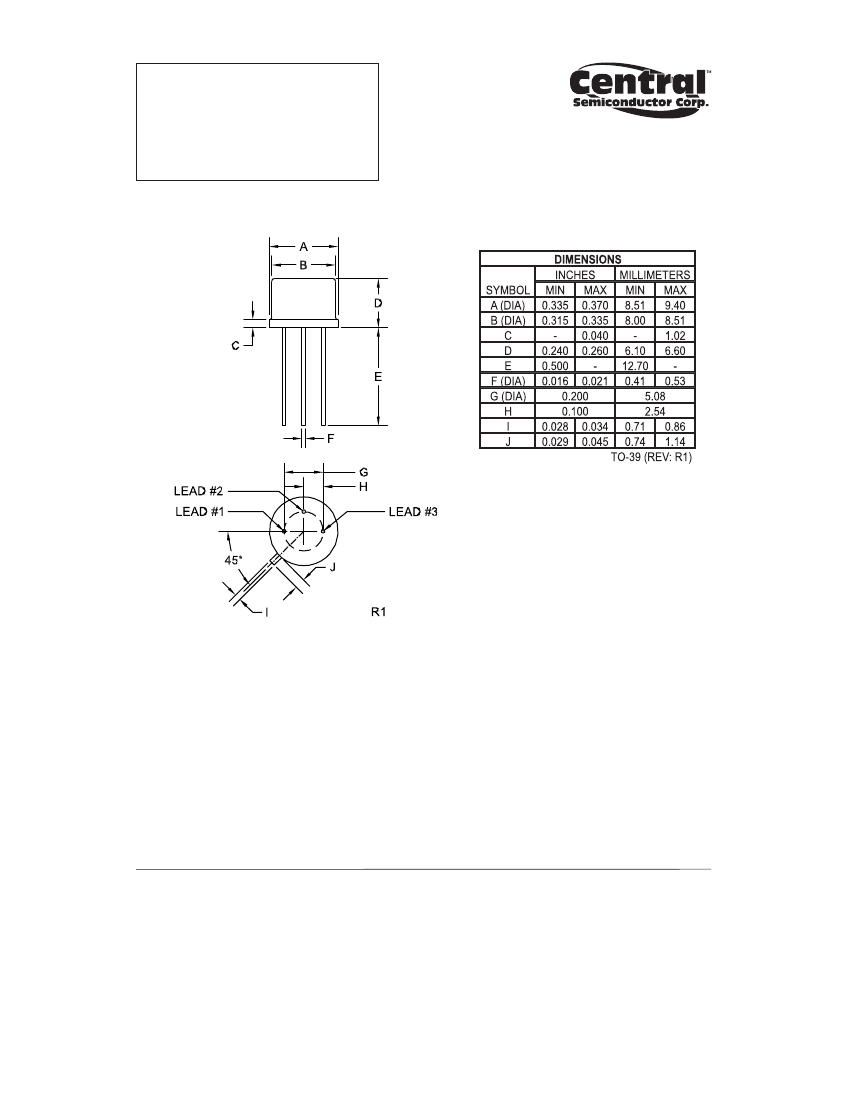

TO-39 CASE

MAXIMUM RATINGS:

(TC=25°C)

Collector-Base Voltage

Collector-Emitter Voltage

Emitter-Base Voltage

Continuous Collector Current

Continuous Base Current

Power Dissipation

Power Dissipation (TA=25°C)

Operating and Storage Junction Temperature

Thermal Resistance

SYMBOL

VCBO

VCER

VCEO

VEBO

TJ, Tstg

5.0

3.5

1.0

-65 to +200

17.5

175

MAX

1.0

100

UNITS

°C

°C/W

UNITS

μA

ELECTRICAL CHARACTERISTICS:

(TC=25°C unless otherwise noted)

SYMBOL

TEST CONDITIONS

MIN

ICEV

VCE=75V, VBE=1.5V

ICEV

VCE=75V, VBE=1.5V, TC=150°C

ICER

VCE=65V, RBE=100Ω

ICER

VCE=65V, RBE=100Ω, TC=150°C

ICEO

VCE=50V

IEBO

VEB=5.0V

BVCER

IC=10mA, RBE=100Ω

BVCEO

IC=10mA

VCE(SAT)

IC=1.0A, IB=100mA

VBE(ON)

VCE=2.0V, IC=1.0A

hFE

VCE=2.0V, IC=1.0A

VCE=2.0V, IC=3.2A

4.0

hFE

VCE=2.0V, IC=100mA, f=4.0MHz (2N5781)

8.0

VCE=2.0V, IC=100mA, f=200kHz (2N5784)

1.0

hfe

VCE=2.0V, IC=100mA, f=1.0kHz

ton

VCC=30V, IC=1.0A, IB1=IB2=100mA (2N5781)

ton

VCC=30V, IC=1.0A, IB1=IB2=100mA (2N5784)

toff

VCC=30V, IC=1.0A, IB1=IB2=100mA (2N5781)

toff

VCC=30V, IC=1.0A, IB1=IB2=100mA (2N5784)

0.5

1.5

150

4.0

0.5

5.0

2.5

MHz

μs

R1 (25-January 2011)

2N5781LEADFREE Related Products

	2N5781LEADFREE	2N5784LEADFREE
Description	Small Signal Bipolar Transistor, 3.5A I(C), 65V V(BR)CEO, 1-Element, PNP, Silicon, TO-39, TO-39, 3 PIN	Small Signal Bipolar Transistor, 3.5A I(C), 65V V(BR)CEO, 1-Element, NPN, Silicon, TO-39, TO-39, 3 PIN
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Parts packaging code	TO-39	TO-39
package instruction	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3
Contacts	3	3
Reach Compliance Code	compli	compli
ECCN code	EAR99	EAR99
Maximum collector current (IC)	3.5 A	3.5 A
Collector-emitter maximum voltage	65 V	65 V
Configuration	SINGLE	SINGLE
Minimum DC current gain (hFE)	4	4
JEDEC-95 code	TO-39	TO-39
JESD-30 code	O-MBCY-W3	O-MBCY-W3
JESD-609 code	e3	e3
Number of components	1	1
Number of terminals	3	3
Package body material	METAL	METAL
Package shape	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL
Peak Reflow Temperature (Celsius)	260	260
Polarity/channel type	PNP	NPN
Certification status	Not Qualified	Not Qualified
surface mount	NO	NO
Terminal surface	MATTE TIN (315)	Matte Tin (Sn)
Terminal form	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM
Maximum time at peak reflow temperature	10	10
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
Nominal transition frequency (fT)	8 MHz	8 MHz
Maximum off time (toff)	2500 ns	15000 ns
Maximum opening time (tons)	500 ns	5000 ns
Base Number Matches	1	1
