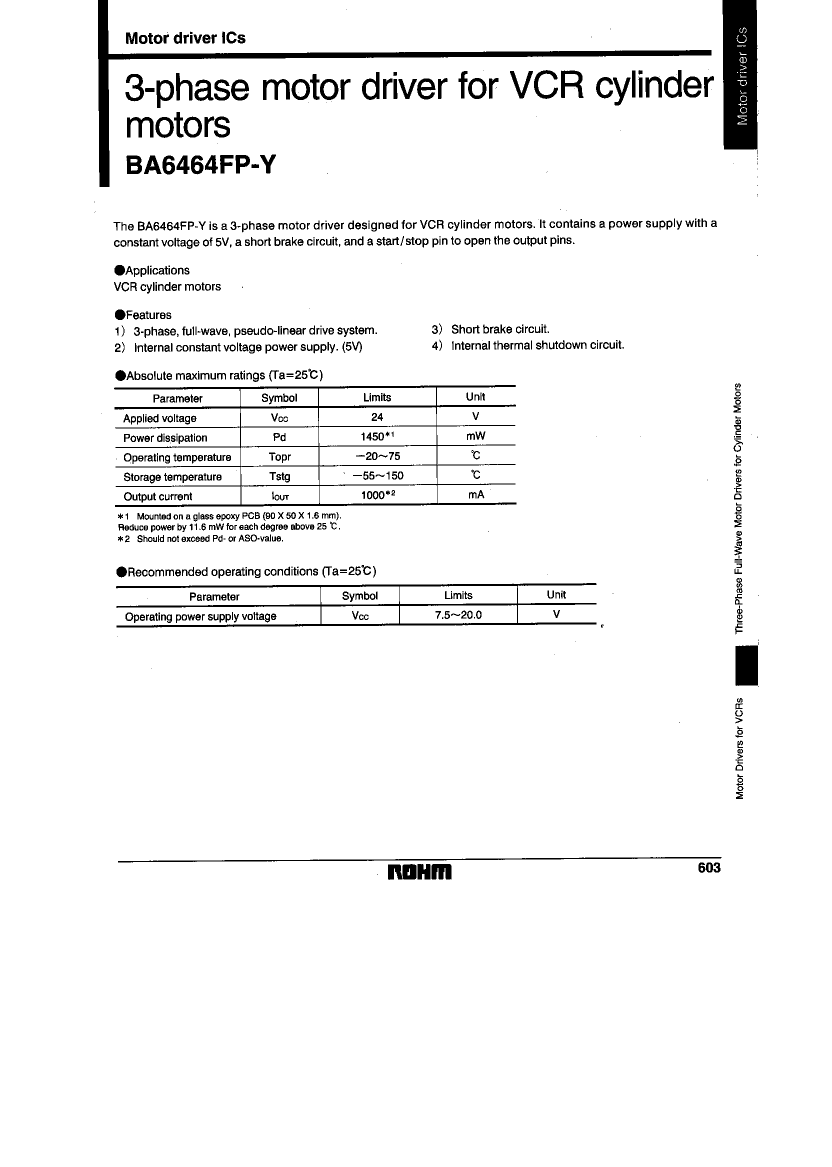

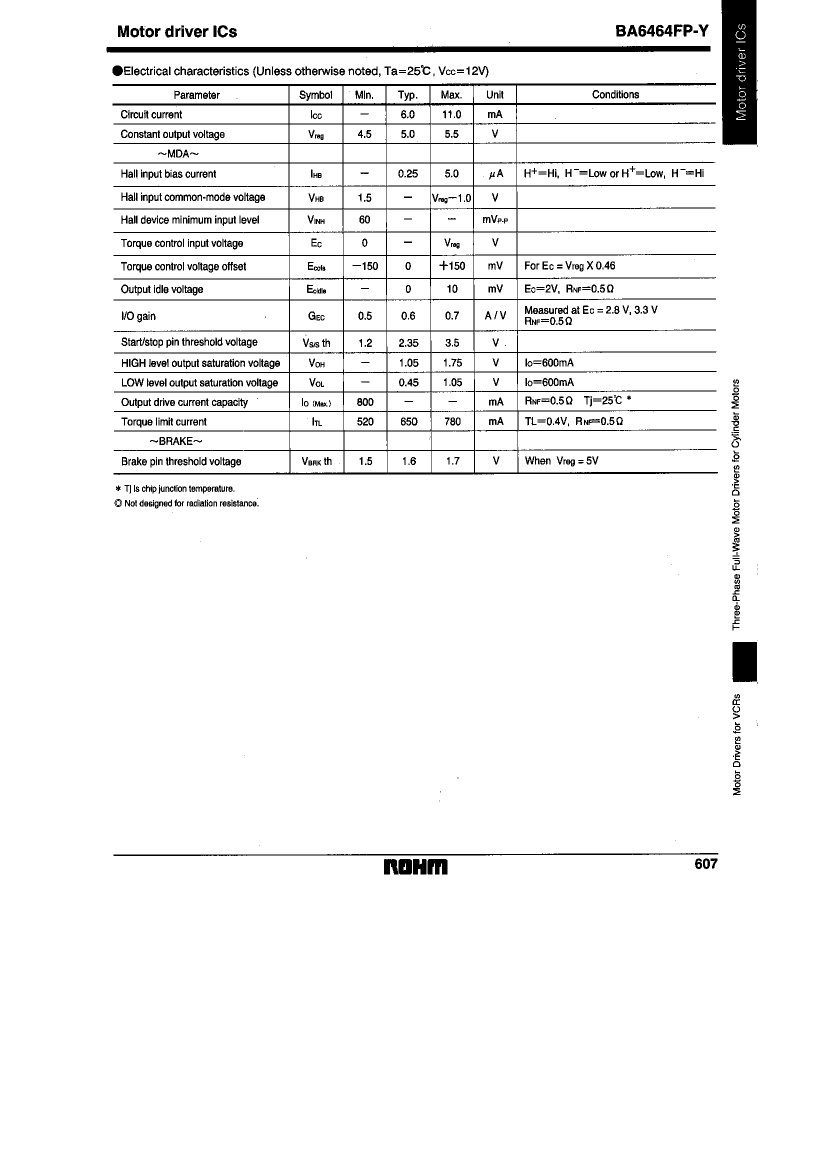

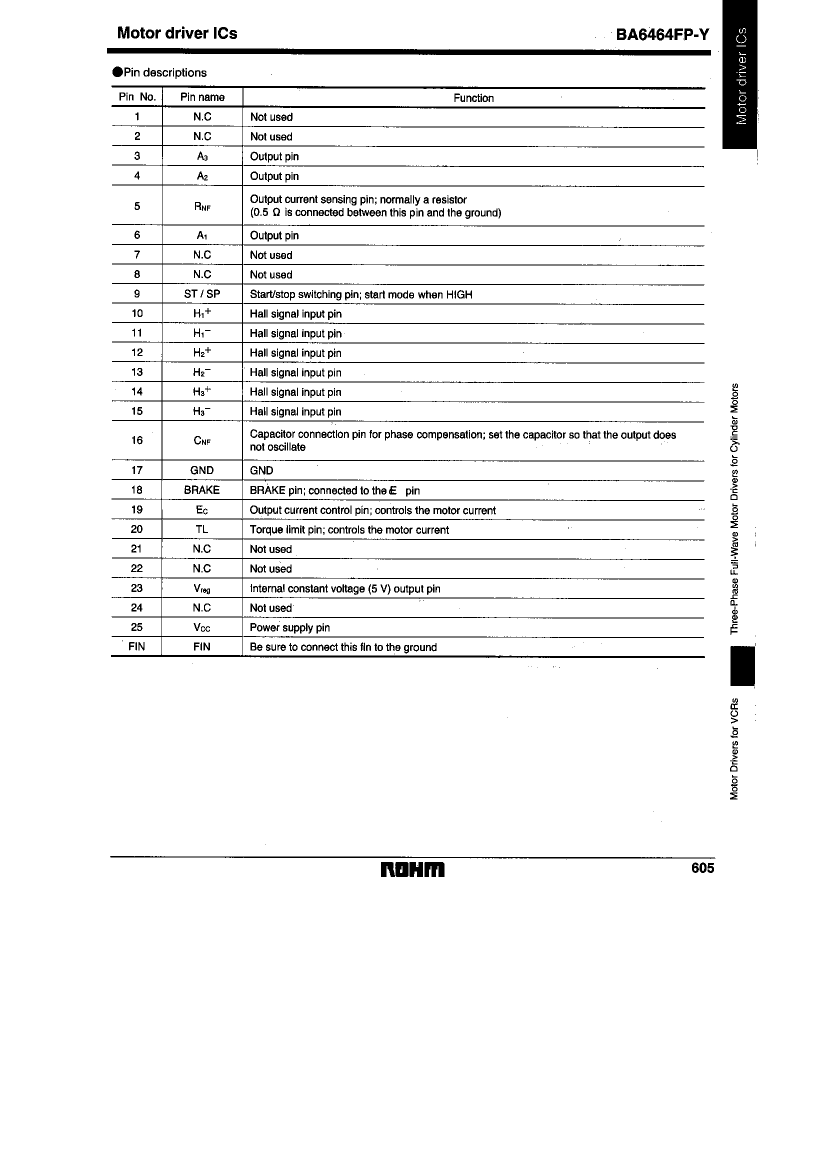

BA6464FP-Y Overview

Brushless DC Motor Controller, 1A, BIPolar, PDSO27, HSOP-25

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ROHM Semiconductor
Parts packaging code	SOIC
package instruction	HSSOP, SOP34,.3,32
Contacts	25
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	BRUSHLESS DC MOTOR CONTROLLER
JESD-30 code	R-PDSO-G27
JESD-609 code	e0
length	13.6 mm
Number of functions	1
Number of terminals	27
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
encapsulated code	HSSOP
Encapsulate equivalent code	SOP34,.3,32
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	12 V
Certification status	Not Qualified
Maximum seat height	2.11 mm
Maximum supply voltage (Vsup)	20 V
Minimum supply voltage (Vsup)	7.5 V
Nominal supply voltage (Vsup)	12 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	5.4 mm
