AT17C256-10JIT/R datasheet, PDF

AT17C256-10JIT/R: DescriptionConfiguration Memory, 256KX1, Serial, CMOS, PQCC20, PLASTIC, MS-018AA, LCC-20; Categorystorage storage; File Size195KB，7 Pages; ManufacturerAtmel (Microchip)

Download Datasheet Parametric View All

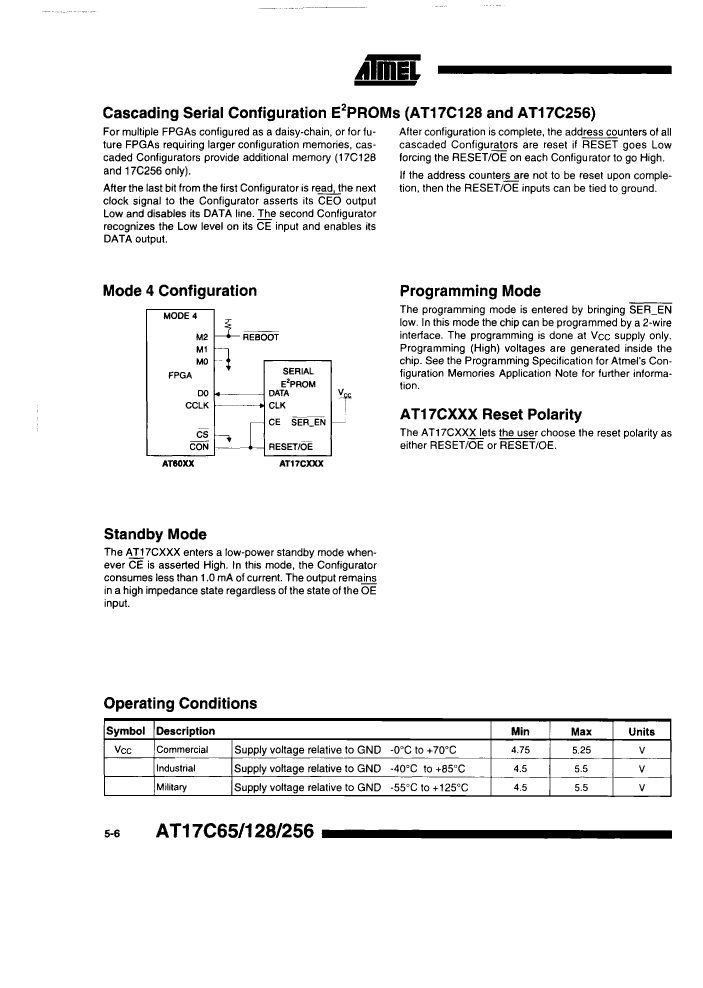

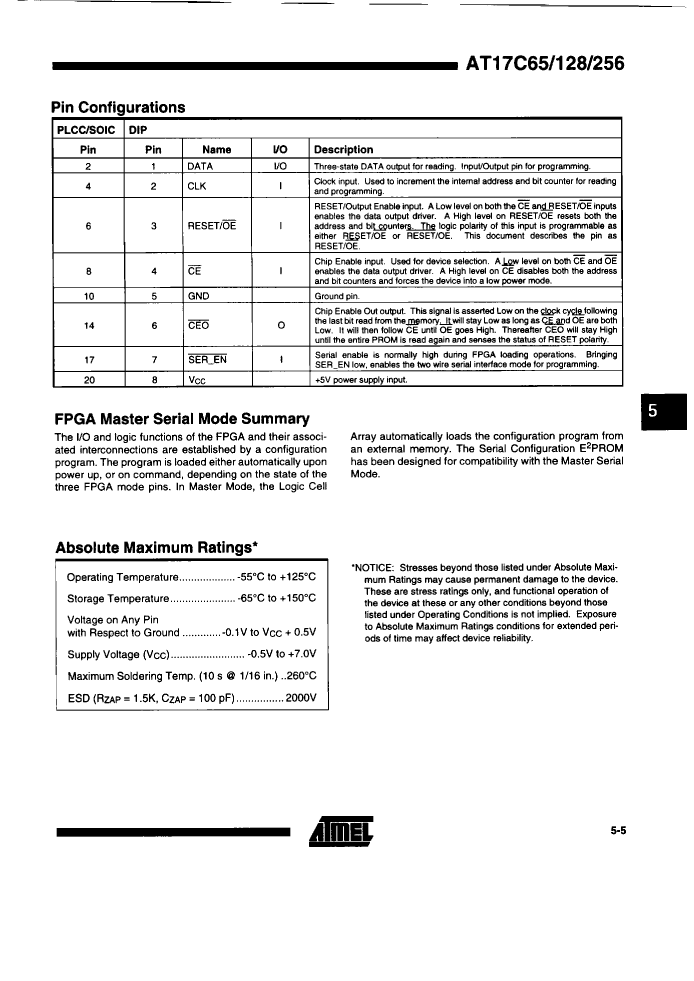

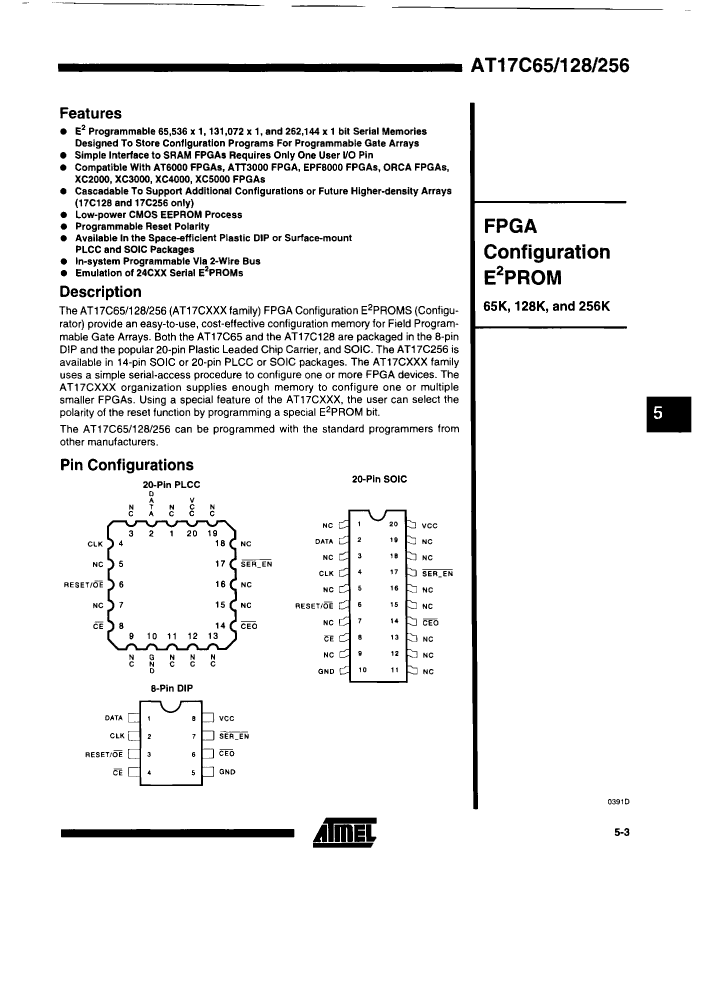

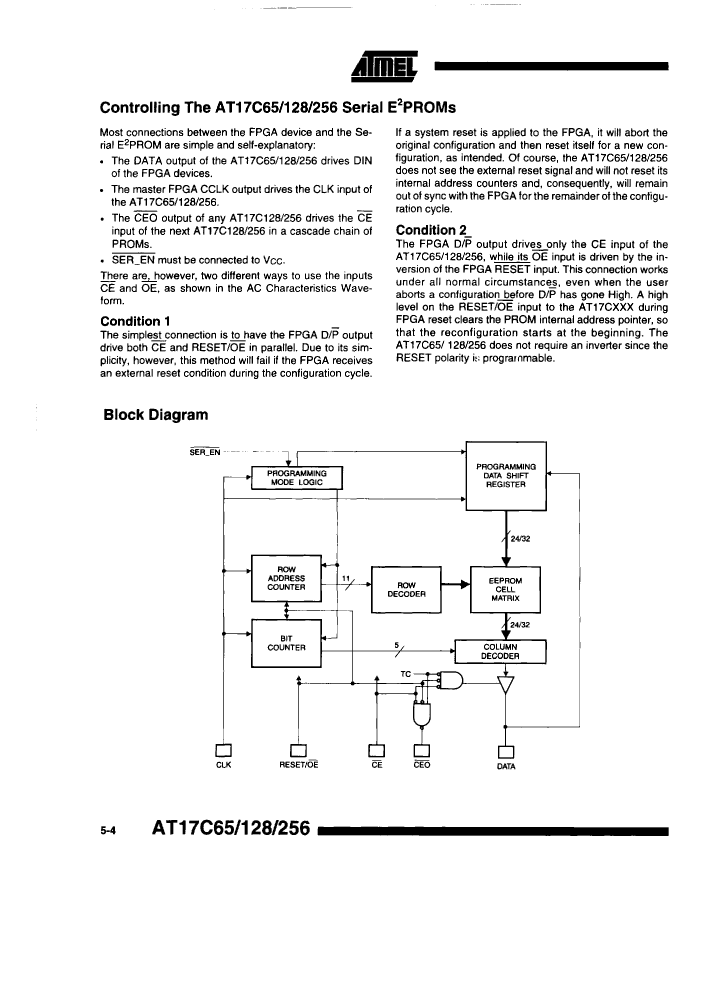

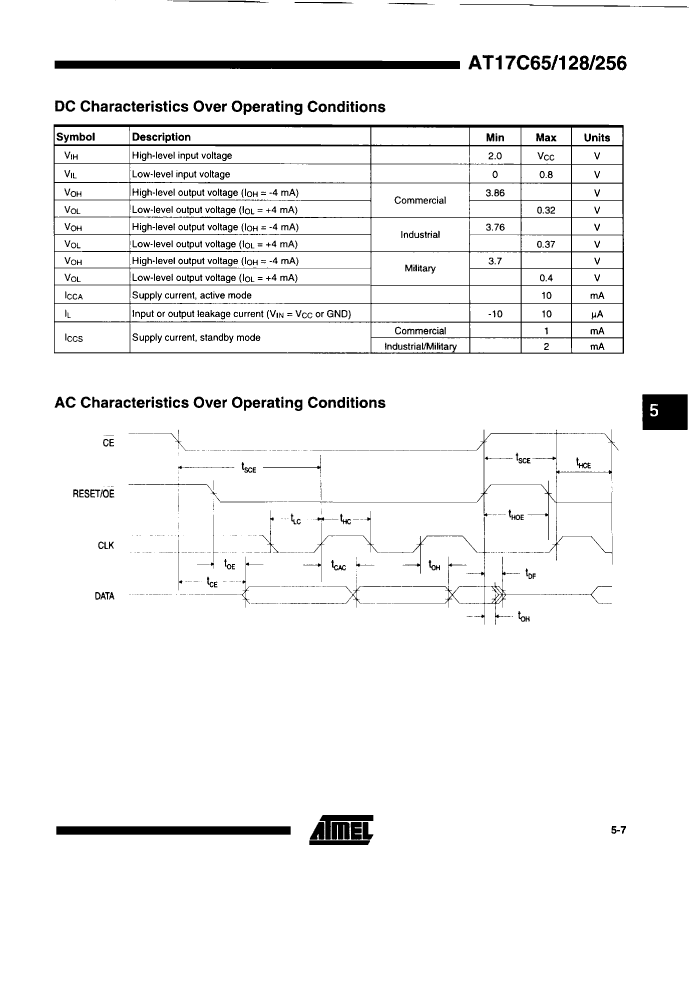

AT17C256-10JIT/R Overview

Configuration Memory, 256KX1, Serial, CMOS, PQCC20, PLASTIC, MS-018AA, LCC-20

Parameter Name	Attribute value
Maker	Atmel (Microchip)
Parts packaging code	LPCC
package instruction	QCCJ,
Contacts	20
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum clock frequency (fCLK)	10 MHz
JESD-30 code	S-PQCC-J20
length	8.9662 mm
memory density	262144 bit
Memory IC Type	CONFIGURATION MEMORY
memory width	1
Number of functions	1
Number of terminals	20
word count	262144 words
character code	256000
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	256KX1
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Parallel/Serial	SERIAL
Certification status	Not Qualified
Maximum seat height	4.57 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	8.9662 mm
