FX20-80P-0.5SV15 Overview

Board Stacking Connector, 80 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug,

FX20-80P-0.5SV15 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Hirose
Reach Compliance Code	unknown
ECCN code	EAR99
Samacsys Description	Hirose FunctionMAX FX20 Series, 0.5mm Pitch 80 Way 2 Row Straight PCB Header, Solder Termination, 0.5A
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	70 mΩ
Durability	50 Cycles
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	POLYAMIDE
Plug contact pitch	0.02 inch
Match contact row spacing	0.106 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.1562 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.4826 mm
Termination type	SURFACE MOUNT
Total number of contacts	80

Preview

Download Datasheet

View All

Floating Stacking 0.5mm Pitch Board to Board Connector

FX20 Series

X direction

Y direction

Floating range

: 0.6mm

Floating range

: 0.6 to 0.8mm

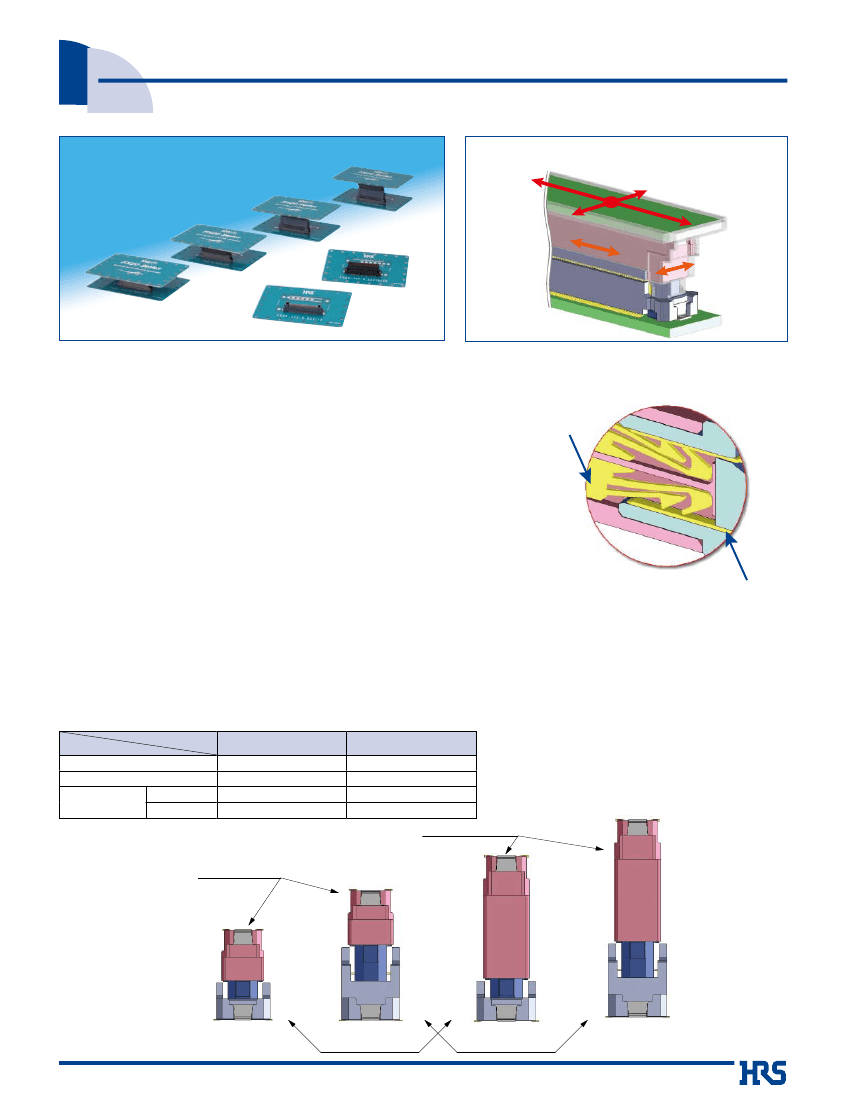

■Features

1. 0.5mm pitch

2. Connection type: Stacking

3. Number of positions: 40, 60, 80, 100, 120 and 140

4. Floating range; X direction: ± 0.6 to 0.8mm, Y direction: ± 0.6mm

5. The Double beam contact design ensures a highly

reliable contact(Refer to the right figure.)

6. Current capacity: 0.5A / pin

7. Effective contact length of 1.5mm

This connector utilizes a 1.5mm effective contact length for signal and

provides a margin sufficient for mating stroke.

Enlarged view of contact area

Receptacle-side

contact

8. No restrictions on pattern area

9. Capability of automatic mounting

(The connector has the vacuum pick-up area.)

10. Self aligning and self-guiding

Built-in guide posts allow secure self-alignment

Header-side

contact

■Stacking

Variation

Header

Receptacle

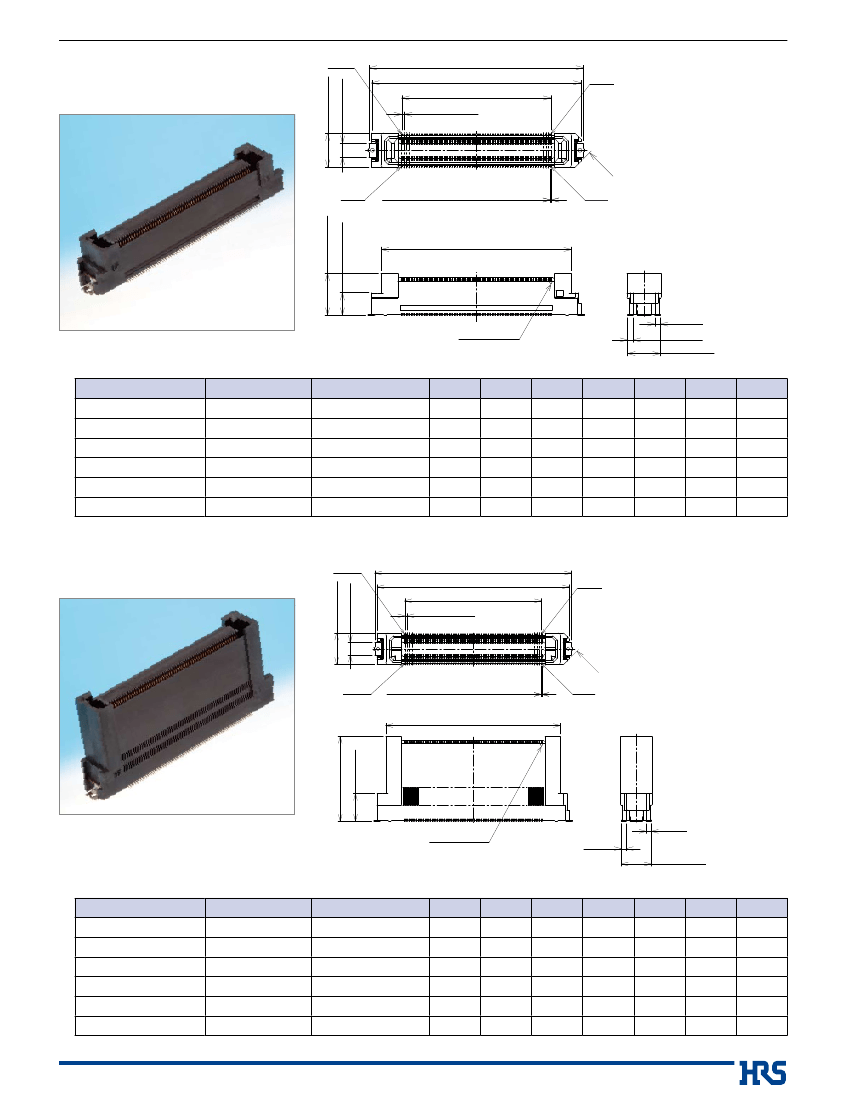

FX20-**S-0.5SV

FX20-**S-0.5SV10

X direction

Floating range

Y direction

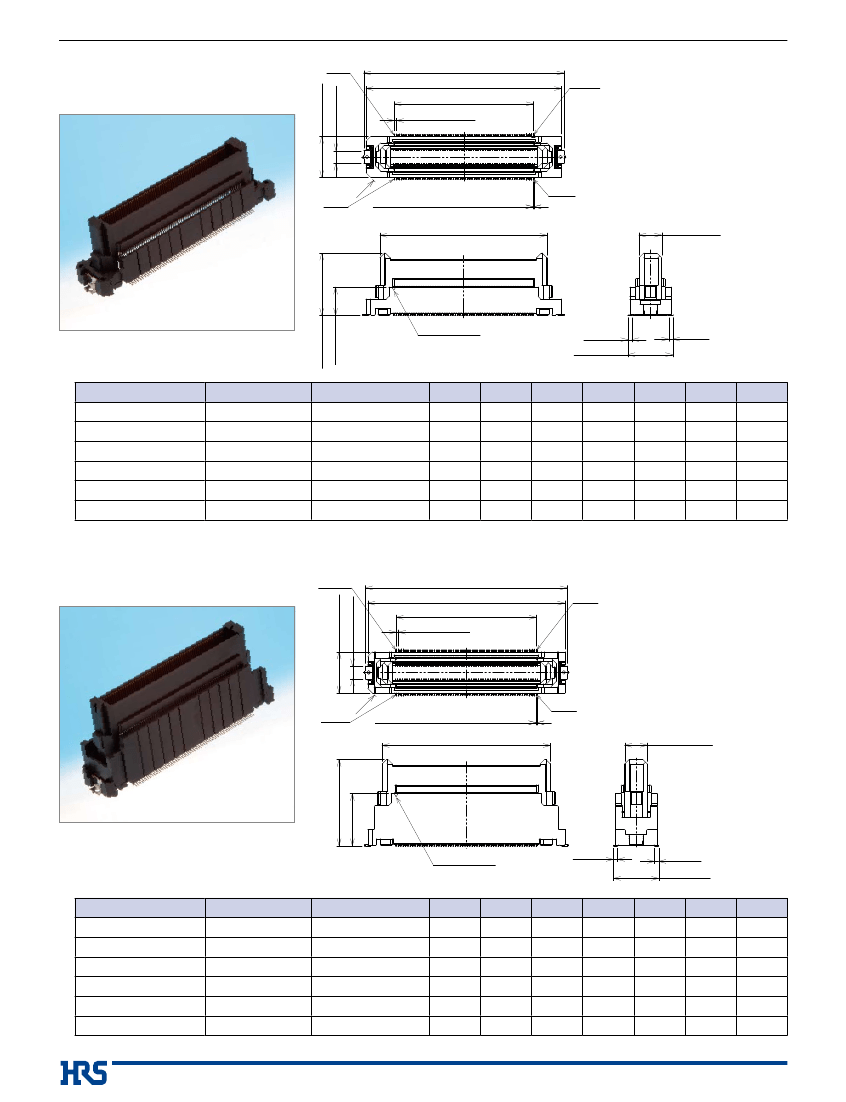

FX20-**P-0.5SV15

15mm

25mm

±0.6mm

FX20-**P-0.5SV20

20mm

30mm

±0.8mm

±0.6mm

FX20-＊

＊S-0.5SV10

FX20-＊

＊S-0.5SV

h=15mm

h=20mm

FX20-＊

＊P-0.5SV15

h=25mm

FX20-＊

＊P-0.5SV20

h=30mm

2012.6

FX20-80P-0.5SV15 Related Products

	FX20-80P-0.5SV15	7164S35DGI8	FX20-100S-0.5SV	FX20-100S-0.5SH	FX20-80S-0.5SV10	FX20-80S-0.5SV	FX20-140P-0.5SV15	FX20-140S-0.5SH	FX20-140S-0.5SV	FX20-140S-0.5SV10
Description	Board Stacking Connector, 80 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug,	CMOS Static RAM 64K	Board Stacking Connector, 100 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle	Board Connector, 100 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle	Board Stacking Connector, 80 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle,	Board Stacking Connector, 80 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle,	Board Stacking Connector, 140 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug	Board Connector, 140 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle	Board Connector, 140 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle	Board Stacking Connector, 140 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle
Is it Rohs certified?	conform to	-	-	-	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Hirose	-	-	-	Hirose	Hirose	Hirose	Hirose	Hirose	Hirose
Reach Compliance Code	unknown	-	unknown	unknown	unknown	unknown	unknow	unknow	unknow	unknow
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Body/casing type	PLUG	-	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	PLUG	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR	-	BOARD STACKING CONNECTOR	BOARD CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD STACKING CONNECTOR
Contact to complete cooperation	AU	-	AU	AU	AU	AU	NOT SPECIFIED	AU	AU	NOT SPECIFIED
Contact point gender	MALE	-	FEMALE	FEMALE	FEMALE	FEMALE	MALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	-	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	NOT SPECIFIED	PHOSPHOR BRONZE	PHOSPHOR BRONZE	NOT SPECIFIED
contact mode	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	70 mΩ	-	70 mΩ	70 mΩ	70 mΩ	70 mΩ	70 mΩ	70 mΩ	70 mΩ	70 mΩ
Durability	50 Cycles	-	50 Cycles	50 Cycles	50 Cycles	50 Cycles	50 Cycles	50 Cycles	50 Cycles	50 Cycles
Insulation resistance	100000000 Ω	-	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	BLACK	-	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	POLYAMIDE	-	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	POLYAMIDE	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)
Plug contact pitch	0.02 inch	-	0.02 inch	0.02 inch	0.02 inch	0.02 inch	0.02 inch	0.02 inch	0.02 inch	0.02 inch
Match contact row spacing	0.106 inch	-	0.106 inch	0.106 inch	0.106 inch	0.106 inch	0.106 inch	0.106 inch	0.106 inch	0.106 inch
Installation option 1	LOCKING	-	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	-	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	-	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	-	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	-	2	2	2	2	2	2	2	2
Number of rows loaded	2	-	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	-	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	5.1562 mm	-	5.1562 mm	5.1562 mm	5.1562 mm	5.1562 mm	5.1562 mm	5.1562 mm	5.1562 mm	5.1562 mm
polarization key	POLARIZED HOUSING	-	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	0.5 A	-	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL	-	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.4826 mm	-	0.4826 mm	0.4826 mm	0.4826 mm	0.4826 mm	0.4826 mm	0.4826 mm	0.4826 mm	0.4826 mm
Termination type	SURFACE MOUNT	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	80	-	100	100	80	80	140	140	140	140
