C1: A low ESR capacitor is required to keep the noise of the converter to a minimum. Ceramic capacitors are recommended
with typical value is 10µF / 25V.
C2: Installation of C2 is recommended with typical value of 22µF / 16V ceramic for 5V and 6.5V output signal and 22µF /
6.3V ceramic for 2.5V and 3.3V output signal.
NOTE: This part is not designed for parallel operation.
www.aimtec.com
F 051e R12.C
Tel: +1 514 620 2722
3 of 4
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Series AMSR1.5-78-NZ
Up to 9.75 Watt | DC-DC Switching Regulator

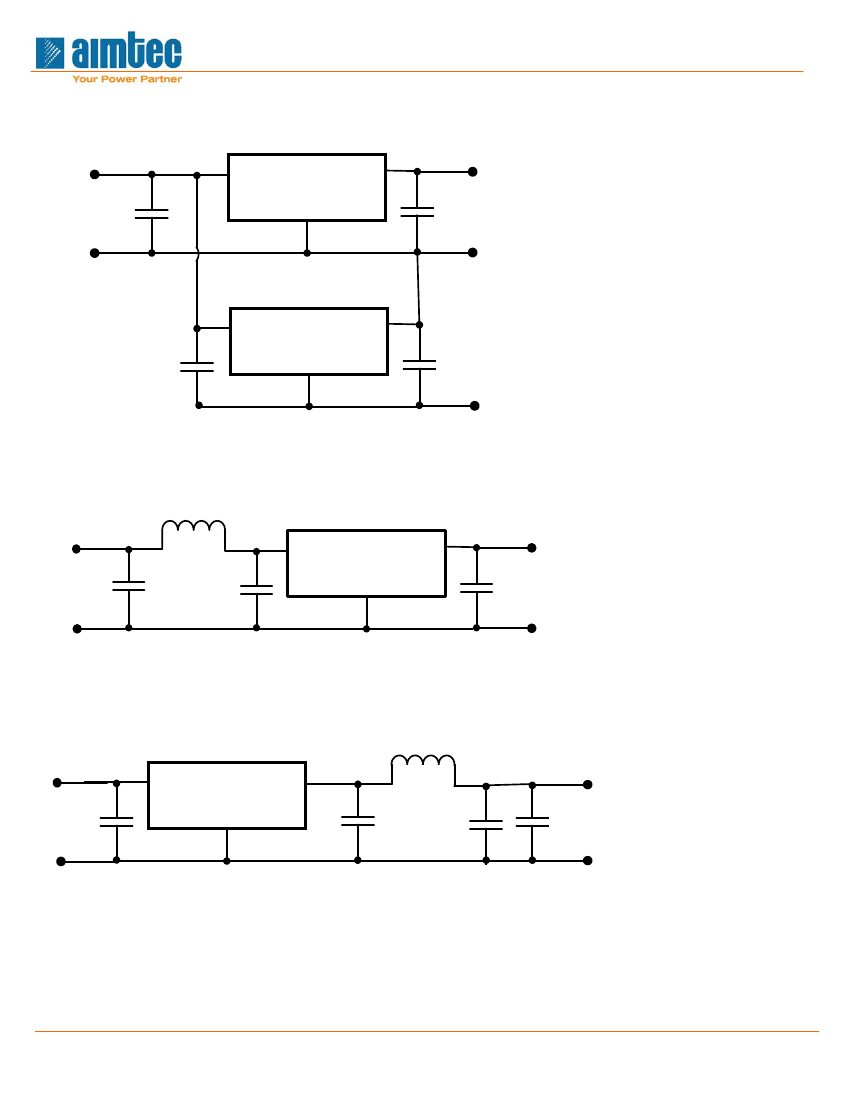

Dual Output Connection
+Vin
C1
10uF
GND
1
C1
AMSR1.5-78Z
2
10uF
3
C2
22uF
-Vout
1
AMSR1.5-78Z
2
3
+Vout
C2
22uF
GND
Input Filter
10uH ~ 47uH
1
C1
10uF
GND
C1
10uF
AMSR1.5-78Z
2
3 +Vout
C2
22uF
GND
Output Filter
10uH ~ 47uH
1
C1
10uF
GND
AMSR1.5-78Z
2
3
C1
10uF
C1
10uF
+Vout
C2
22uF
GND
NOTE: 1.
Datasheets are updated as needed and as such, specifications are subject to change without notice. Once printed or downloaded, datasheets are no longer controlled
by Aimtec; refer to www.aimtec.com for the most current product specifications.
2.
Product labels shown, including safety agency certifications on labels, may vary based on the
date manufactured.
3.

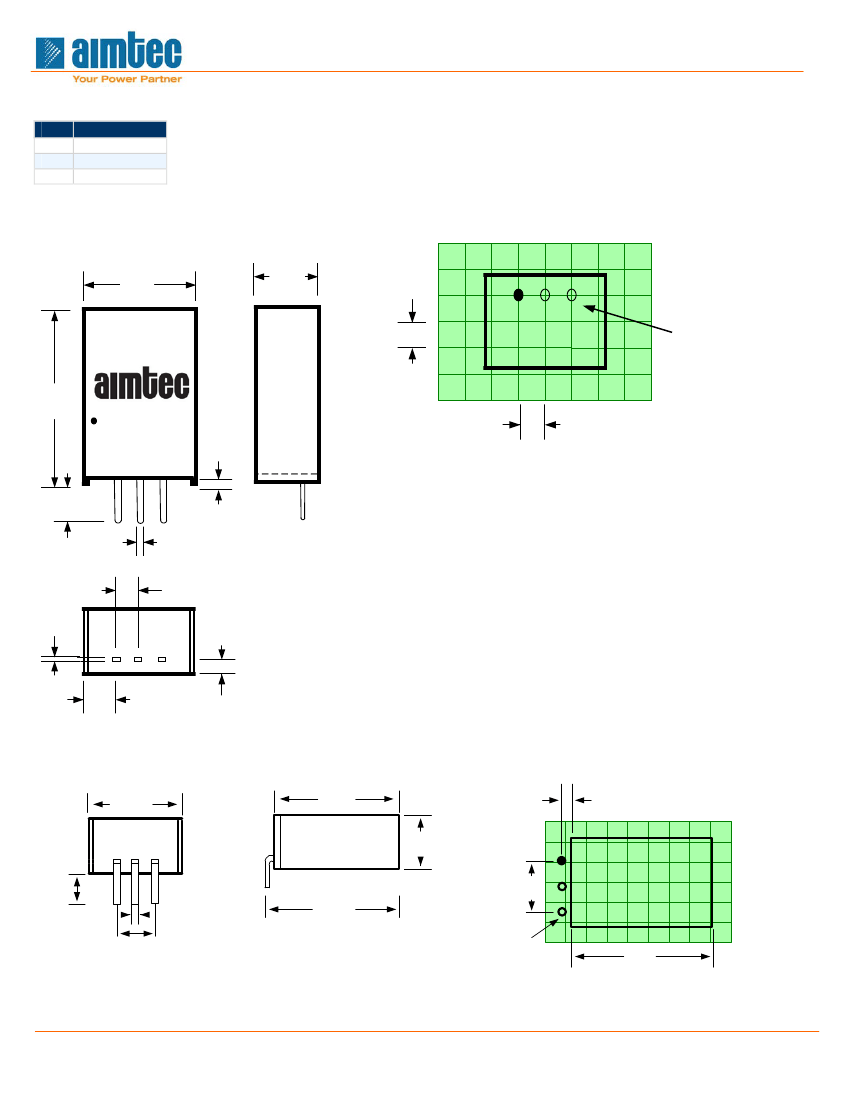

Mechanical drawings and specifications are for reference only.
4.
All specifications are measured at an ambient temperature of 25°C, humidity<75%,
nominal input voltage and at rated output load unless otherwise specified.
5.
Aimtec may not have conducted destructive testing or chemical analysis on all internal components
and chemicals at the time of publishing this document. CAS numbers and other limited information are considered proprietary and may not be available for release.
6.
This
product is not designed for use in critical life support systems, equipment used in hazardous environments, nuclear control systems or other such applications which necessitate
specific safety and regulatory standards other the ones listed in this datasheet.
7.
Warranty is in accordance with Aimtec’s standard Terms of Sale available at www.aimtec.com.
