AMT203_1012

Description
12 BIT ABSOLUTE ENCODER
File Size366KB,6 Pages
ManufacturerCUI
Websitehttp://www.cui.com
Download Datasheet View All

AMT203_1012 Overview

12 BIT ABSOLUTE ENCODER

date
12/2010
page
1 of 6

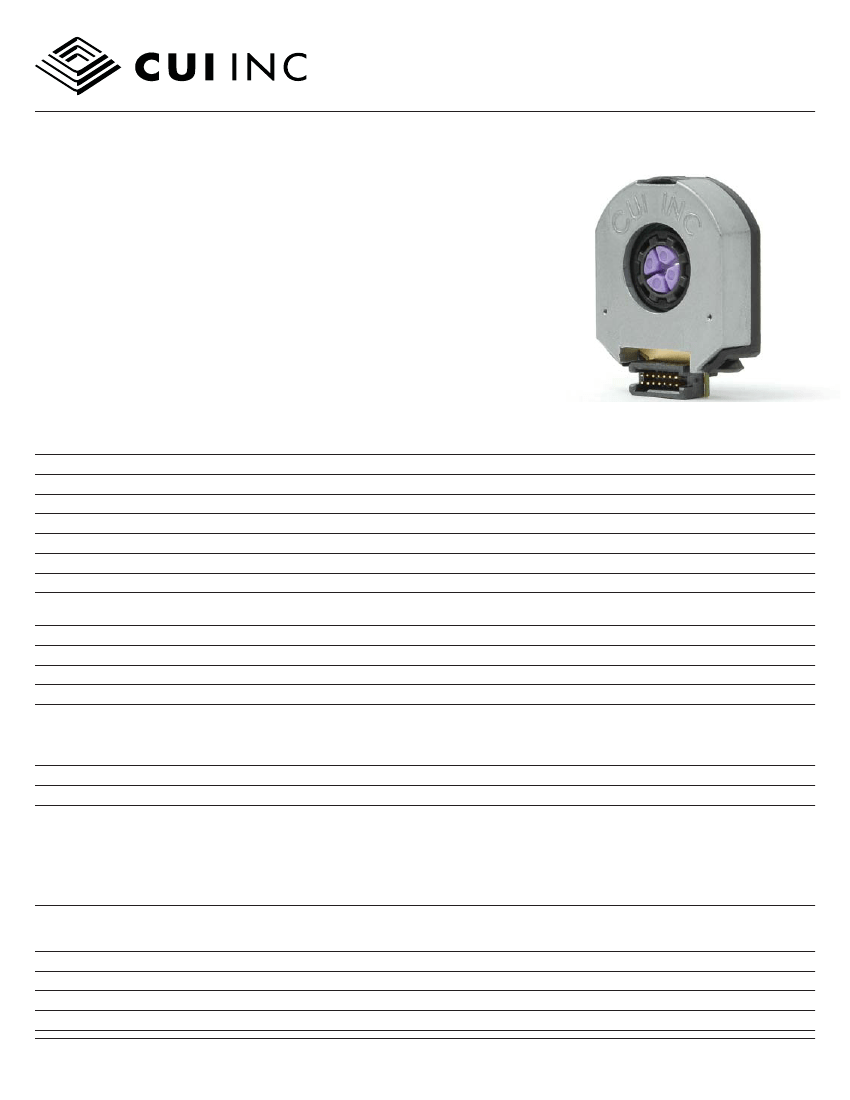

PART NUMBER: AMT203
THE AMT203 is a high performance
absolute encoder based on capacitive
sensing technology. The AMT203
utilizes a custom ASIC to create
absolute position over a single
turn. This encoder is12 bit and
communicates via an SPI serial bus
for working as a slave to an external
microprocessor. Incremental A,B
signals with a single index pulse
per 360 deg are provided for higher
speed operation.
DESCRIPTION:
FEATURES
-
-
-
-
-
-
-
12 BIT ABSOLUTE ENCODER
12 bit (4096 positions)
SPI communication
Small Size 37mm
Incremental Line count up to 1024
Single pulse index
Capacitive ASIC technology

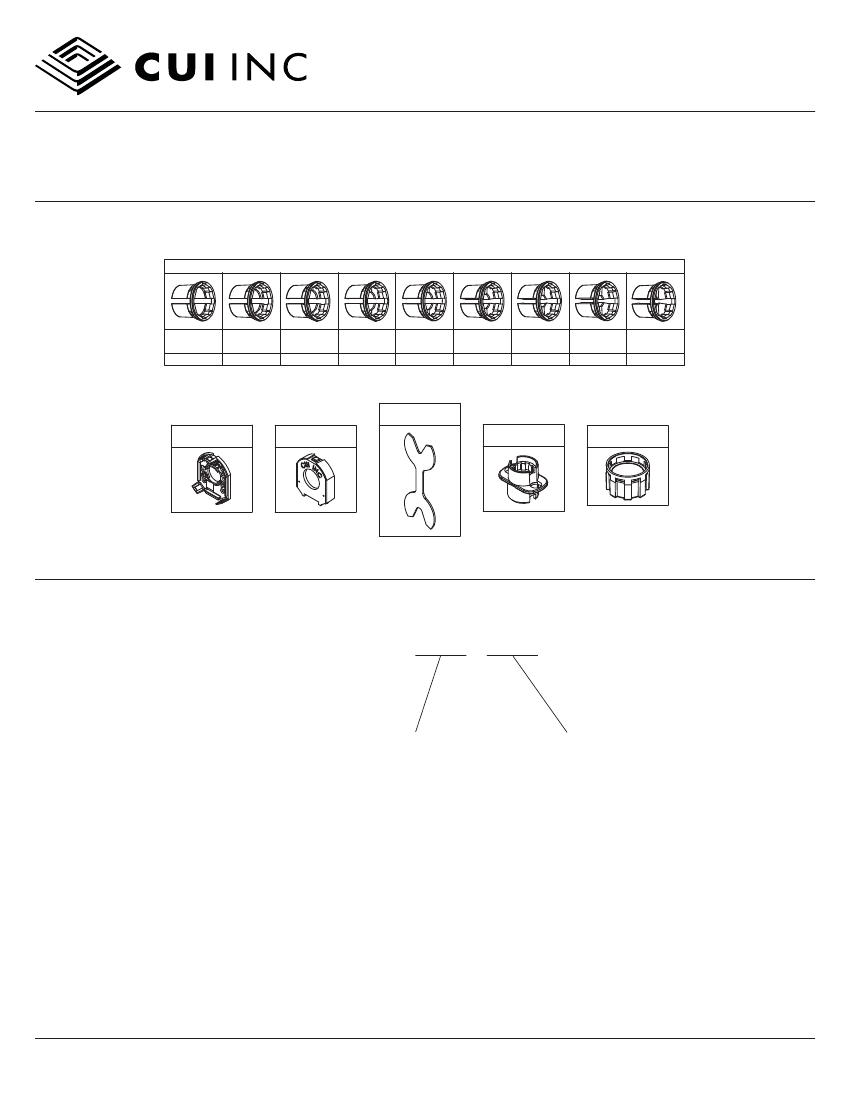

Modular locking hub design
for ease of installation
- SPI adjustable settings
- ‘One Touch’ zero position
ELECTRONIC SPECIFICATIONS
parameter
power supply
current consumption
output resolution
quadrature resolution
incremental output signals
incremental output waveform
incremental outputs
SPI output
SPI bus
SPI resolution
accuracy
96, 192, 200, 250, 400, 500, 512, 1024
Quadrature A, B signals and Index Z
square wave
output voltage - sourcing to +5 V @ -32 mA
output voltage - sinking to ground @ -32 mA
natural binary
PIC 16F690 (see datasheet)
12
2
bit
incr.
3.8
0.55
V
V
conditions/description
min
4.5
nom
5
8
4,096
max
5.5
10
units
V
mA
incr.

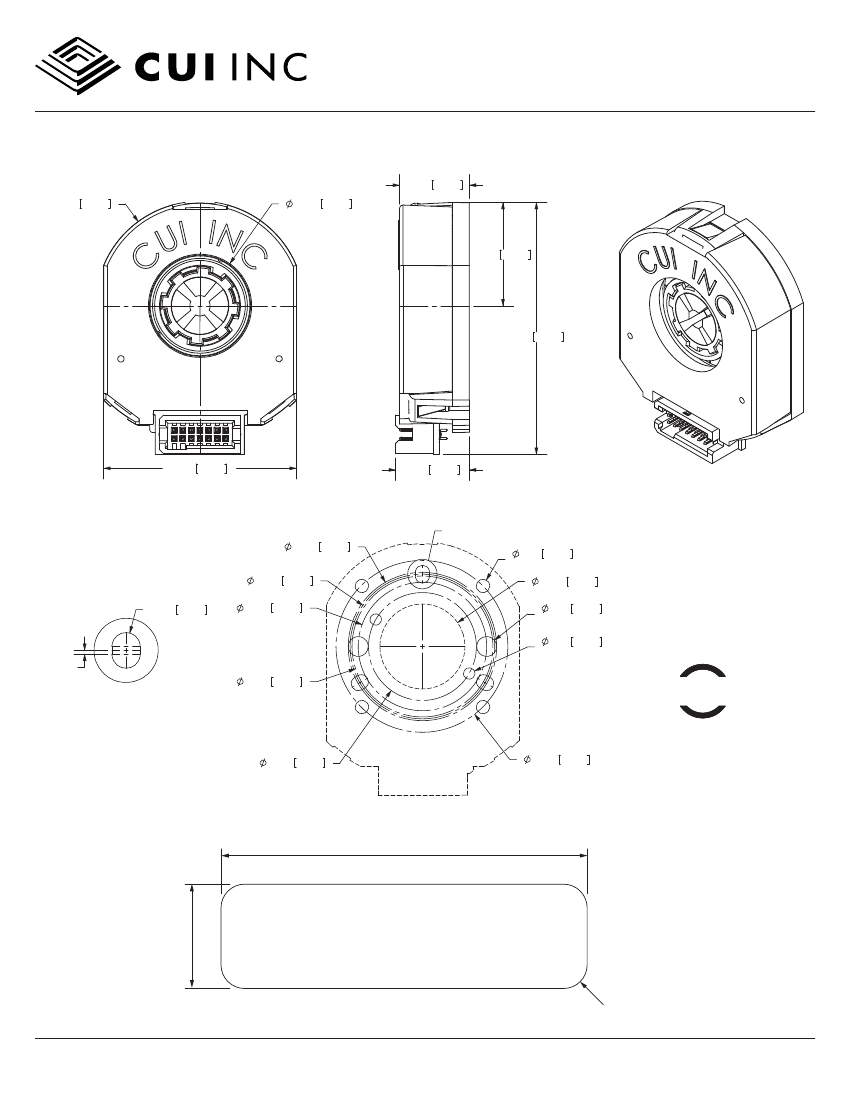

MECHANICAL SPECIFICATIONS
parameter
SPI speed
mounting options
A) 2 each M1.6 on 16 mm (0.63”) bolt circle
B) 2 each #4 on 19.05 mm (0.75”) bolt circle
C) 2 each M1.6 or M2 on 20 mm (0.787”) bolt circle
D) 3 each M1.6 or M2 on 20.9 mm (0.823”) bolt
circle with washers in option B holes
E) 3 each M1.6 or M2 on 22 mm (0.866”) bolt circle
F) 4 each M1.6 or M2 on 25.4 mm (1”) bolt circle
conditions/description
min
nom
max
8,000
units
RPM
ENVIRONMENTAL SPECIFICATIONS
parameter
operating temperature
humidity
vibration
1.5mm, 3 directions, 2 hours
10
conditions/description
min
-40
nom
max
125
85
55
units
°C
%RH
Hz
20050 SW 112
th
Ave. Tualatin, Oregon 97062
phone 503.612.2300
fax 503.612.2380 www.cui.com
