BAS16-V
Vishay Semiconductors
Small Signal Fast Switching Diode
Features
• Silicon Epitaxial Planar Diode
• Ultra fast switching speed
e3
• Surface mount package ideally suited
for automatic insertion
• High conductance
• Lead (Pb)-free component
• Component in accordance to RoHS 2002/95/EC
and WEEE 2002/96/EC
3
1
2
16923
Mechanical Data
Case:
SOT23 Plastic case
Weight:
approx. 8.0 mg
Polarity:
cathode band
Packaging Codes/Options:
GS18 / 10 k per 13" reel (8 mm tape), 10 k/box
GS08 / 3 k per 7" reel (8 mm tape), 15 k/box
Parts Table
Part
BAS16-V
Ordering code
BAS16-V-GS18 or BAS16-V_GS08 A6
Marking
Remarks
Tape and Reel
Absolute Maximum Ratings
T
amb
= 25 °C, unless otherwise specified
Parameter
Non repetitive peak reverse
voltage
Repetitive peak reverse voltage
= Working peak reverse voltage
= DC Blocking voltage
Peak forward surge current
Average forward current
t
p
= 1 s
t
p
=1 µs
half wave rectification with
resistive load and f
≥
50 MHz, on
ceramic substrate
8 mm x10 mm x 0.7 mm
on ceramic substrate
8 mm x 10 mm x 0.7 mm
on ceramic substrate
8 mm x 10 mm x 0.7 mm
Test condition
Symbol
V
RM
V
RRM
= V
RWM
= V
R
Value
100
75
Unit
V
V
I
FSM
I
FSM
I
FAV
1
2
150
A
A
mA
Forward current
Power dissipation
I
F
P
tot
300
350
mA
mW
Document Number 85539
Rev. 1.5, 09-Mar-06
www.vishay.com
1
BAS16-V
Vishay Semiconductors
Thermal Characteristics
T
amb
= 25 °C, unless otherwise specified
Parameter
Junction ambient
Junction and storage
temperature range
Test condition
on ceramic substrate
8 mm x 10 mm x 0.7 mm
Symbol
R
thJA
T
j
= T
stg
Value
357
- 55 to + 150
Unit
K/W
°C
Electrical Characteristics
T
amb
= 25 °C, unless otherwise specified
Parameter
Forward voltage
Test condition
I
F
= 1 mA
I
F
= 10 mA
I
F
= 50 mA
I
F
= 150 mA
Reverse current
V
R
= 75 V
V
R
= 75 V, T
j
= 150 °C
V
R
= 25 V, T
j
= 150 °C
Diode capacitance
Reverse recovery time
V
R
= 0, f = 1 MHz
I
F
= 10 mA to I
R
= 1 mA,
V
R
= 6 V, R
L
= 100
Ω
Symbol
V
F
V
F
V
F
V
F
I
R
I
R
I
R
C
D
t
rr
Min
Typ.
Max
715
855
1
1.25
1
50
30
4
6
Unit
mV
mV
V
V
µA
µA
µA
pF
ns
Typical Characteristics
T
amb
= 25 °C, unless otherwise specified
1000
10000
I
R
– Reverse Current (nA)
V
R
= 20
V
1000
I
F
- Forward Current (mA)
100
T
j
= 100 °C
10
25 °C
1
0.1
100
10
0.01
14356
1
0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
V
F
- Forward
Voltage
(V)
0
14357
25
50
75
100 125 150 175 200
T
j
– Junction Temperature (°C)
Figure 1. Forward Current vs. Forward Voltage
Figure 2. Reverse Current vs. Junction Temperature
www.vishay.com
2
Document Number 85539
Rev. 1.5, 09-Mar-06
BAS16-V
Vishay Semiconductors

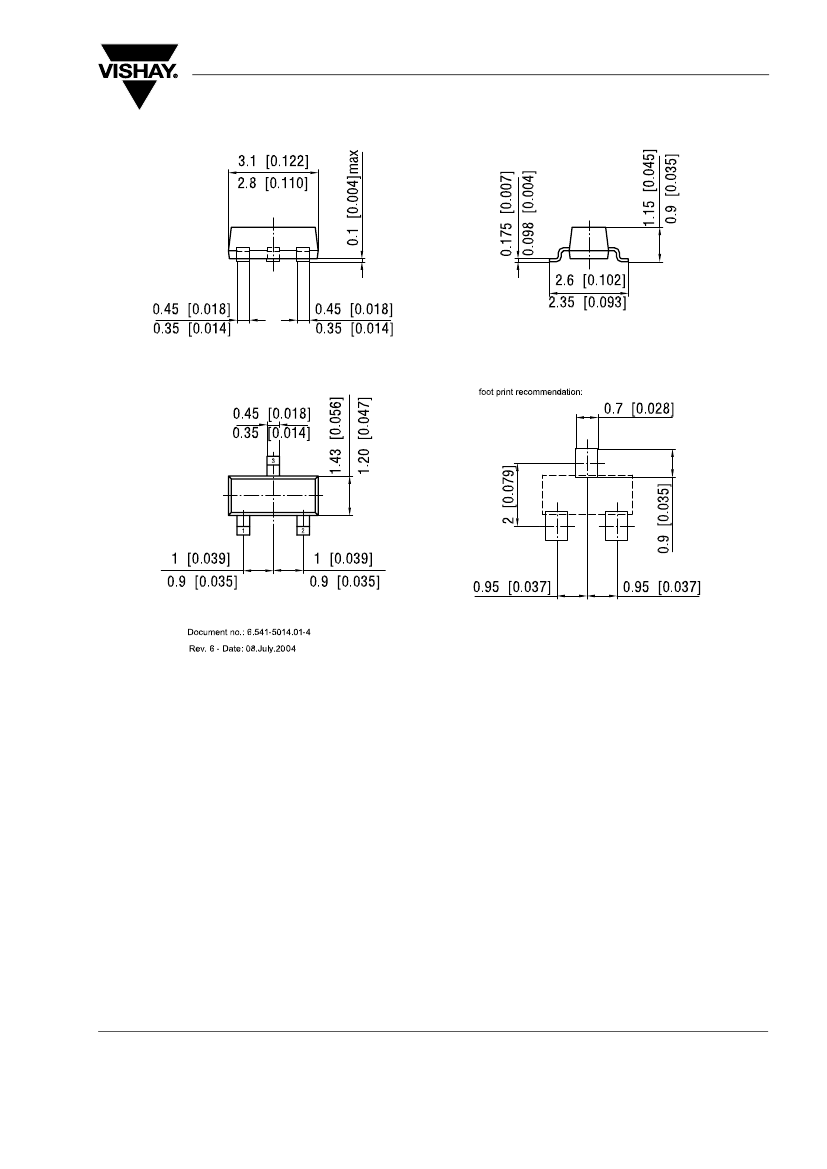

Package Dimensions in mm (Inches)
17418
Document Number 85539
Rev. 1.5, 09-Mar-06
www.vishay.com
3
BAS16-V
Vishay Semiconductors
