BAS16D-V
Vishay Semiconductors
Small Signal Fast Switching Diode
Features
• Silicon Epitaxial Planar Diode
• Fast switching diode
e3
• Also available in case SOT-23 with des-
ignation BAS16
• Lead (Pb)-free component
• Component in accordance to RoHS 2002/95/EC
and WEEE 2002/96/EC
17431
Mechanical Data
Case:
SOD-123 Plastic case
Weight:
approx. 9.3 mg
Packaging Codes/Options:
GS18 / 10 k per 13" reel (8 mm tape), 10 k/box
GS08 / 3 k per 7" reel (8 mm tape), 15 k/box
Parts Table
Part
BAS16D-V
Ordering code
BAS16D-V-GS18 or BAS16D-V-GS08
A6
Marking
Remarks
Tape and Reel
Absolute Maximum Ratings
T
amb
= 25 °C, unless otherwise specified
Parameter
Reverse voltage
Peak reverse voltage
Forward current (continuous)
Non-repetitive peak forward
current
t = 1
µs
t = 1 ms
t=1s
Power dissipation
1)
Test condition
Symbol
V
R
V
RM
I
F
I
FSM
I
FSM
I
FSM
P
tot
Value
75
100
250
2.0
1.0
0.5
350
1)
Unit
V
V
mA
A
A
A
mW
Valid provided electrodes are kept at ambient temperature
Document Number 85723
Rev. 1.2, 06-Apr-05
www.vishay.com
1
BAS16D-V
Vishay Semiconductors
Thermal Characteristics
T
amb
= 25 °C, unless otherwise specified
Parameter
Maximum junction temperature
Storage temperature
1)
Test condition
Symbol
T
j
T
S
Value
150
- 65 to 150
1)
Unit
°C
°C
Valid provided electrodes are kept at ambient temperature
Electrical Characteristics
T
amb
= 25 °C, unless otherwise specified
Parameter
Forward voltage
Test condition
I
F
= 1 mA
I
F
= 10 mA
I
F
= 50 mA
I
F
= 150 mA
Leakage current
V
R
= 25 V, T
J
= 150 °C
V
R
= 75 V
V
R
= 75 V, T
J
= 150 °C
Diode capacitance
Reverse recovery time
Thermal resistance junction to
ambient air
1)
Symbol
V
F
V
F
V
F
V
F
I
R
I
R
I
R
C
tot
t
rr
R
thJA
Min
Typ.
Max
715
855
1.00
1.25
30
1
50
2
6
375
1)
Unit
mV
mV
V
V
µA
µA
µA
pF
ns
°C/W
V
R
= 0; f = 1 MHz
I
F
= 10 mA to I
R
= 10 mA,
I
R
= 1 mA, R
L
= 100
Ω
Valid provided electrodes are kept at ambient temperature

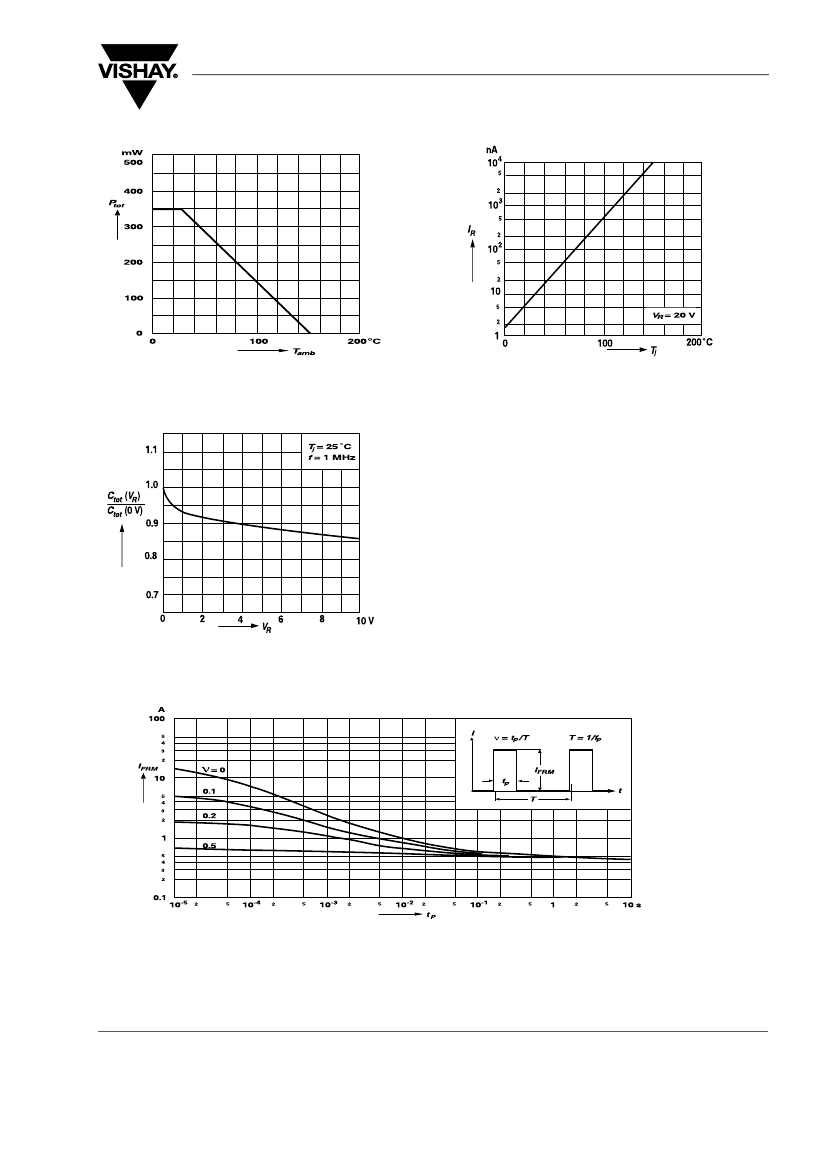

Typical Characteristics (Tamb = 25
°C
unless otherwise specified)
18105
17438
Figure 1. Forward characteristics
Figure 2. Dynamic Forward Resistance vs. Forward Current
www.vishay.com
2
Document Number 85723
Rev. 1.2, 06-Apr-05
BAS16D-V
Vishay Semiconductors
