BL
Galaxy Electrical
Surface Mount Switching Diodes
FEATURES
Fast switching.
Designed for surface mount application.
Plastic material-UL recognition flammability
classification 94V-O
Production specification
BAS16H
Pb
Lead-free
APPLICATIONS
SOD-323
Surface mount fast switching diode
ORDERING INFORMATION
Type No.
BAS16H
Marking
A6●
Package Code
SOD-323
MAXIMUM RATING
@ Ta=25℃ unless otherwise specified
Characteristic
Continuous Reverse Voltage
Forward Continuous Current
Peak forward surge current
Power Dissipation
Thermal Resistance Junction to Ambient
Junction and Storage Temperature Rage
Symbol
V
R
I
F
I
FSM
P
d
R
θ
JA
T
j
,T
STG
Value
75
200
500
200
635
-55 to+150
Unit
V
mA
mA
mW
℃/W
℃
ELECTRICAL CHARACTERISTICS
@ Ta=25℃ unless otherwise specified
Characteristic
Reverse Breakdown Voltage
Symbol
V
(BR)R
Min
75
Max
-
715
855
1000
1250
1.0
50
30
2
1.75
45
-
5
Unit
V
Test Condition
I
R
=100μA
I
F
=1.0mA
I
F
=10mA
I
F
=50mA
I
F
=150mA
V
R
=75V
V
R
=75V,T
J
=150℃
V
R
=25V, T
J
=150℃
V
R
=0,f=1.0MHz
I
F
=10mA,t
r
=20nS
I
F
=10mA to V
R
=5.0V
R
L
=500Ω
I
F
=I
R
=10mA,R
L
=50Ω
www.galaxycn.com
1
Forward Voltage
V
F
-
mV
Reverse Current
Diode Capacitance
Forward recovery voltage
Stored Charge
Reverse Recovery Time
Document number: BL/SSSDB029
Rev.A
I
R
C
D
V
FR
Q
S
t
rr
-
-
μA
pF
V
pC
ns
BL
Galaxy Electrical
Surface Mount Switching Diodes
Production specification
BAS16H

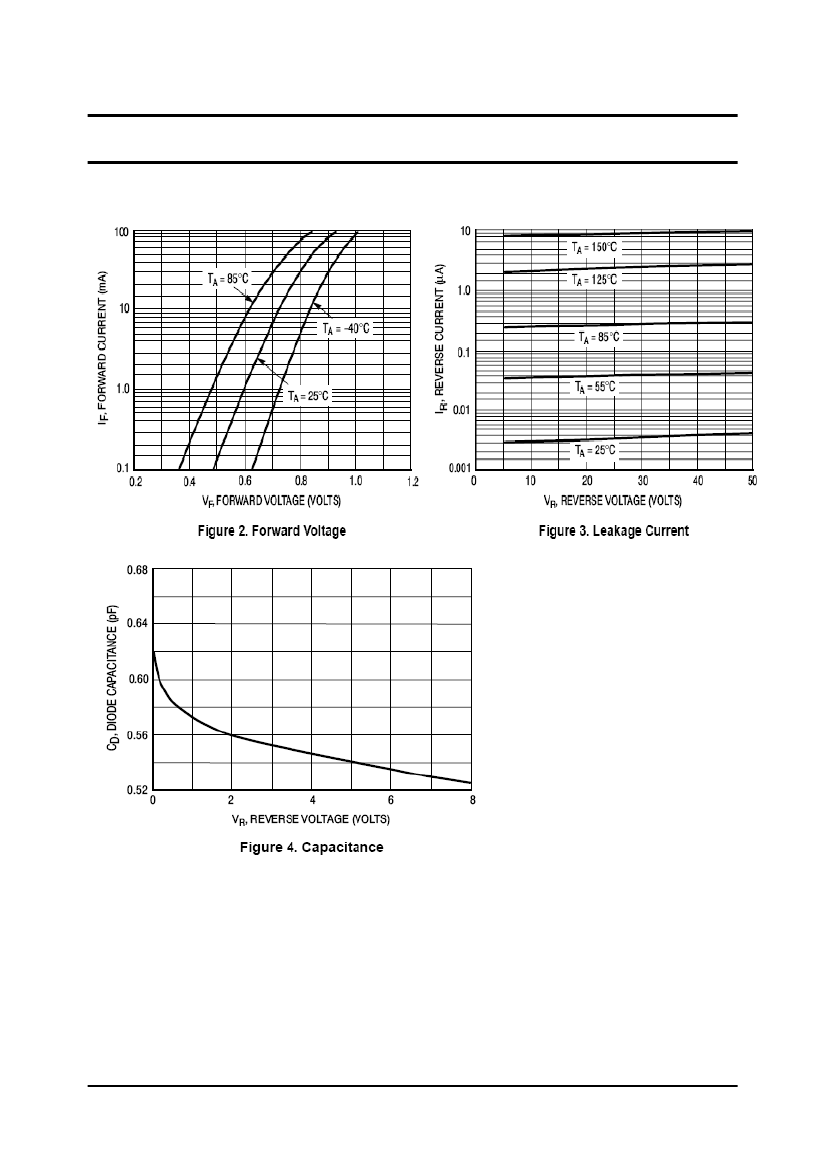

TYPICAL CHARACTERISTICS
@ Ta=25℃ unless otherwise specified
Document number: BL/SSSDB029
Rev.A
www.galaxycn.com
2
BL
Galaxy Electrical
Surface Mount Switching Diodes
PACKAGE OUTLINE
Plastic surface mounted package
Production specification
BAS16H
SOD-323
K
B
C
Dim
A
B
C
D
E
SOD-323
Min
1.275
1.675
Max
1.325
1.725
D
A
0.9 Typical
0.25
0.27
0.02
0.35
0.37
0.1
J
E
H
H
J
K
0.1 Typical
2.6
2.7
All Dimensions in mm
SOLDERING FOOTPRINT
Unit
：mm
PACKAGE
Device
BAS16H
INFORMATION
Package
SOD-323
Shipping
3000/Tape&Reel
Document number: BL/SSSDB029
Rev.A
www.galaxycn.com
3
