BAS316 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> Small signal switching diode> BAS316

BAS316: Description0.5 A, 100 V, SILICON, SIGNAL DIODE; CategoryDiscrete semiconductor Small signal switching diode; File Size363KB，3 Pages; ManufacturerLGE; Websitehttp://www.luguang.cn/web_en/index.html

Download Datasheet Parametric View All

BAS316 Overview

0.5 A, 100 V, SILICON, SIGNAL DIODE

BAS316 Parametric

Parameter Name	Attribute value
Case Style	SOD-323
IF（mA）	250
Maximum recurrent peak reverse voltage	100
TRR（nS)	4.0
Maximum instantaneous forward voltage	1.25
@IF（uA）	150
Maximum reverse current	1.0
@VR	75
class	Diodes

Preview

Download Datasheet

View All

BAS316

Silicon Epitaxial Planar Diodes

SOD-323

Features

Very small plastic SMD package.

High switching speed:max.4ns

Continuous reverse voltage:max.100v

Repetitive peak reverse voltage:max.100v

Repetitive peak forward current:max.500mA

Dimensions in inches and (millimeters)

Applications

Surface mount fast switching diode

Ordering Information

Type No.

BAS316

Marking

Package Code

SOD-323

MAXIMUM RATING

@ Ta=25℃ unless otherwise specified

Characteristic

DC Reverse Voltage

Forward Current

Power Dissipation

Junction and Storage Temperature Rage

Symbol

STG

Value

100

300

200

-65 to+150

Unit

℃

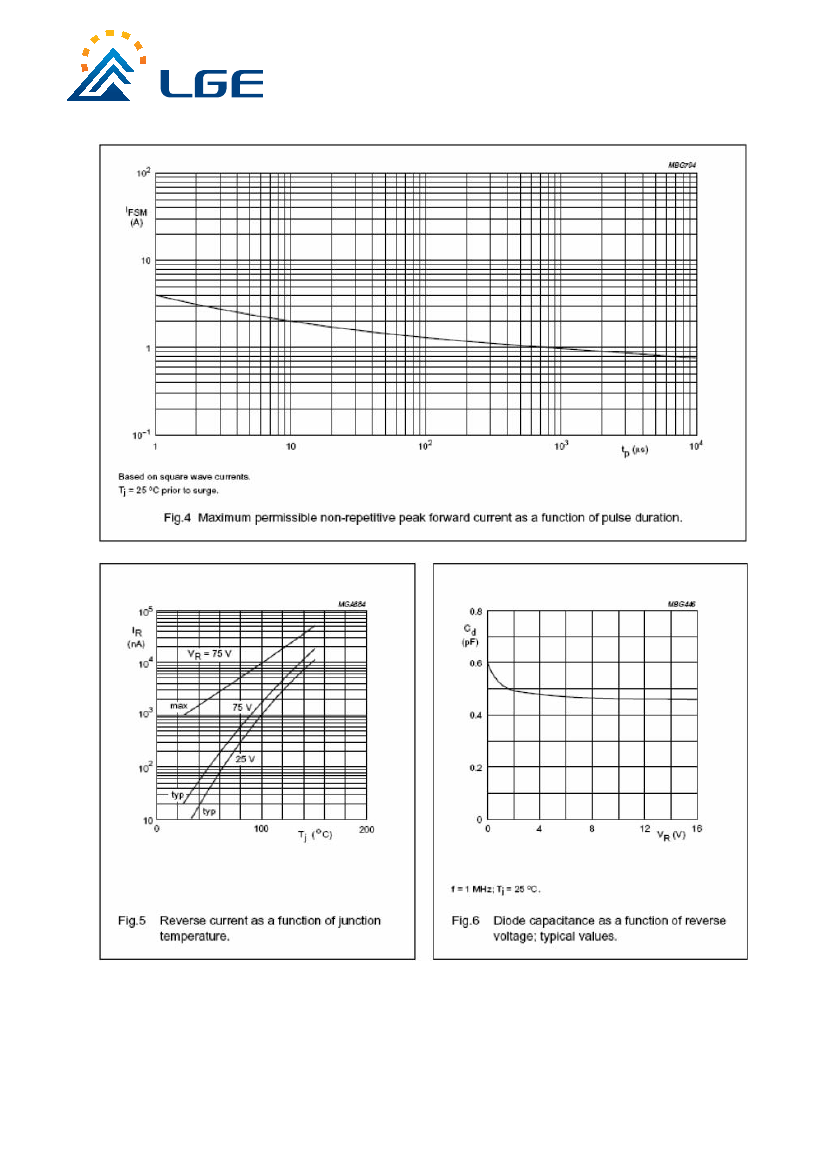

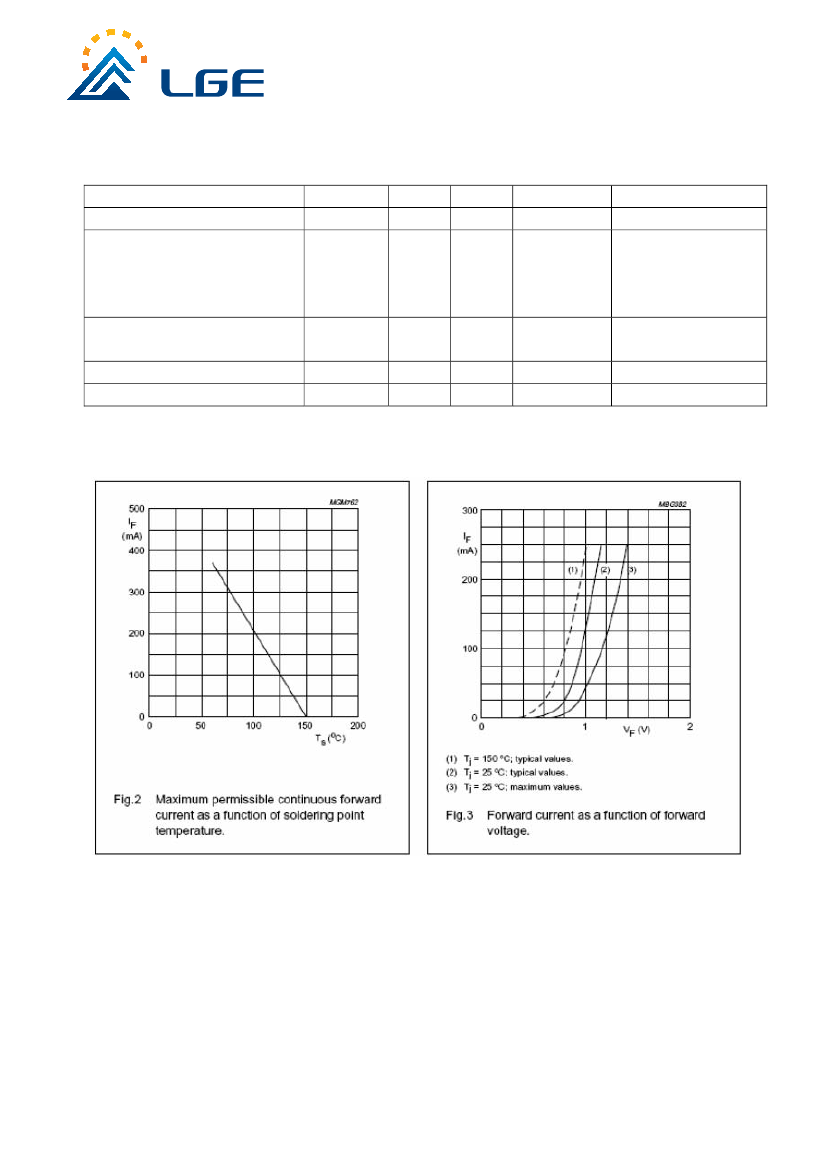

http://www.luguang.cn

mail:lge@luguang.cn
