VFJA400-001 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> VFJA400-001

VFJA400-001: DescriptionPLL/Frequency Synthesis Circuit,; CategoryAnalog mixed-signal IC The signal circuit; File Size130KB，4 Pages; ManufacturerCTS [CTS Corporation]

Download Datasheet Parametric Compare View All

VFJA400-001 Overview

PLL/Frequency Synthesis Circuit,

VFJA400-001 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Maker	CTS [CTS Corporation]
package instruction	,
Reach Compliance Code	unknown

Preview

Download Datasheet

View All

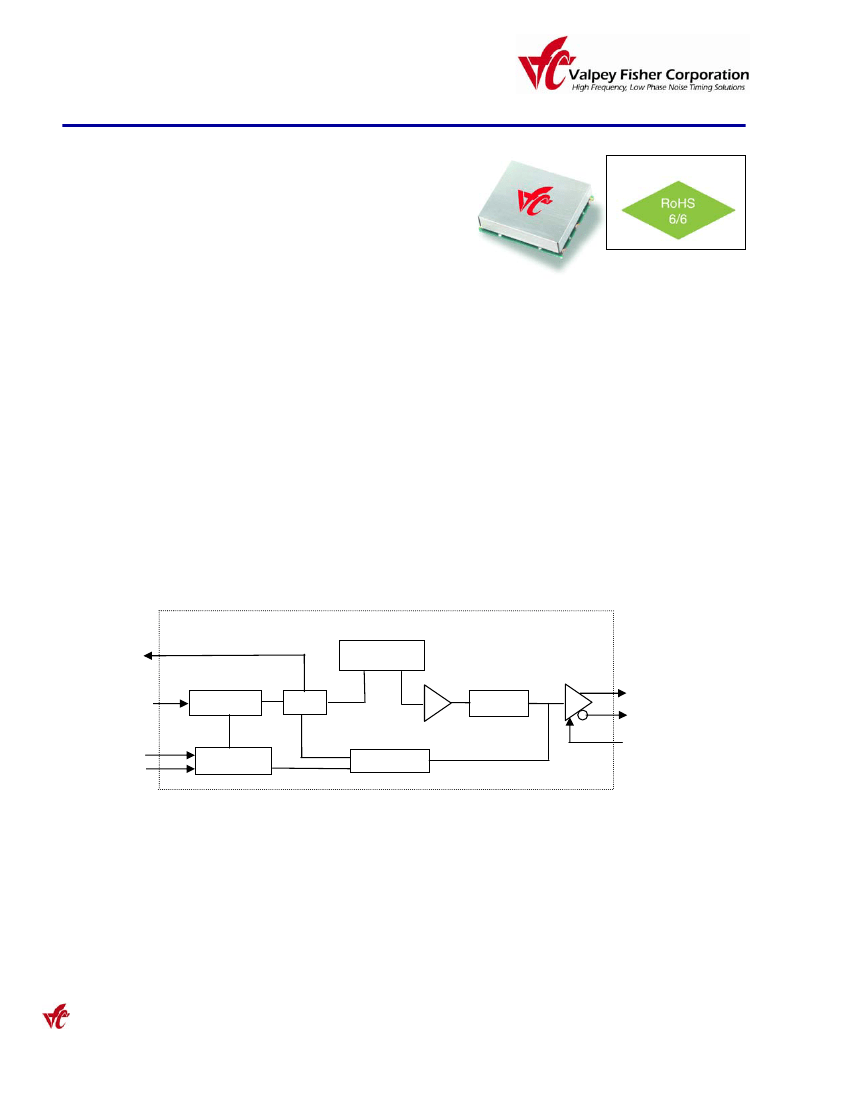

VFJA400

Quad Input to 200MHz

Jitter Attenuator w/ F

OUT

to 200MHz

Features

10MHz to 200MHz Output Frequency Range

8KHz to 200MHz Input Frequency Range

Ultra Low Jitter and Phase Noise: -130 dBc/Hz @ 1KHz

Low Power: < 150mW typical

RoHS Status

Applications

Sonet / SDH / ATM

10 Gigabit Ethernet

Wireless Infrastructure

Description

The VFJA400 is a Jitter Attenuator capable of providing an output frequency up to 200MHz. Two select inputs

[S1,S0] allow the user to select 1 of 4 preset input frequencies. A Lock Detect signal indicates when the output

signal is frequency locked to the input. Operating with a +3.3 volt power supply the device typically consumes

150mW. The output is configured as a differential LVPECL signal and requires external termination resistors.

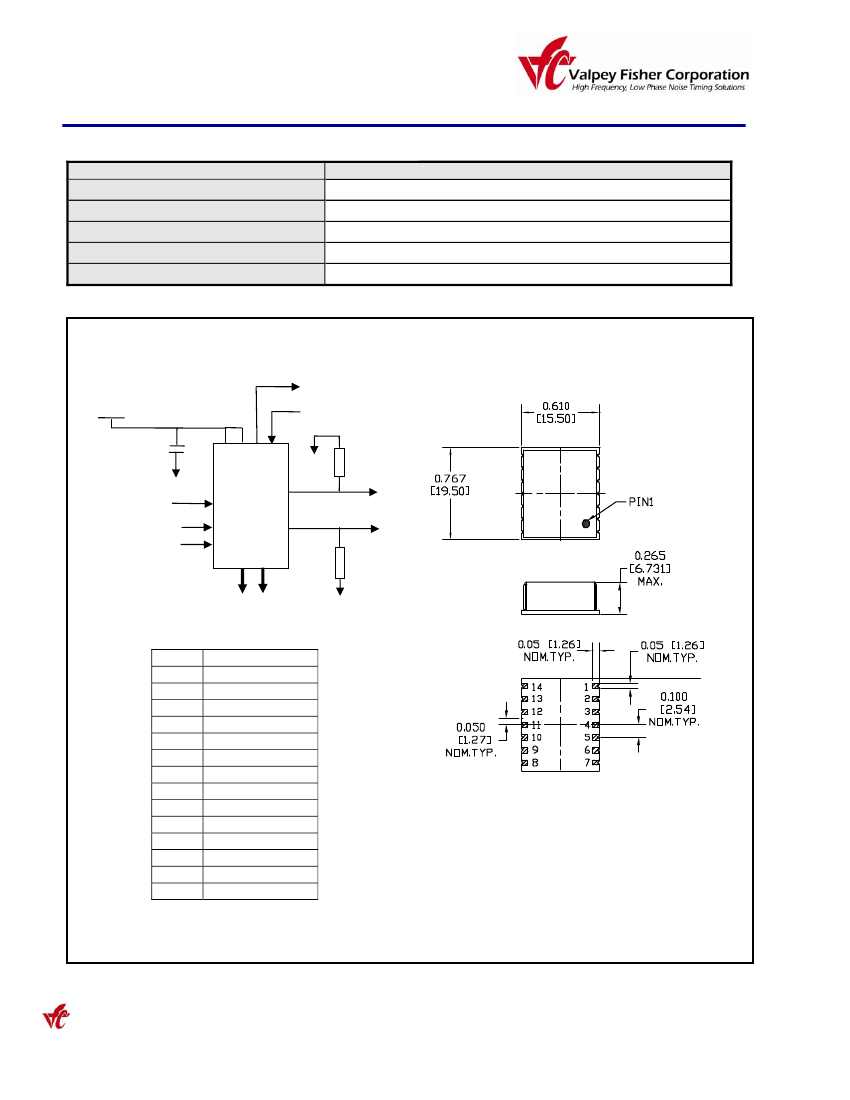

The VFJA400 is available in a 19.5mm x 15.5mm surface mount package.

Filter

F in

R-Divider

PFD

VCXO

Fout

Disable

uController

N- Divider

Block Diagram

75 South Street, Hopkinton, MA 01748 • 800-982-5737 • 508-435-6831 • FAX 508-435-5289 • www.valpeyfisher.com • RevH0609

VFJA400-001 Related Products

	VFJA400-001	VFJA400-004	VFJA400-006	VFJA400-003	VFJA400-002	VFJA400-005	VFJA400-007
Description	PLL/Frequency Synthesis Circuit,	Fixed Attenuator, 0.008MHz Min, 200MHz Max, 19.50 X 15.50 MM, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-14	Fixed Attenuator, 0.008MHz Min, 200MHz Max, 19.50 X 15.50 MM, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-14	Fixed Attenuator, 0.008MHz Min, 200MHz Max, 19.50 X 15.50 MM, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-14	Fixed Attenuator, 0.008MHz Min, 200MHz Max, 19.50 X 15.50 MM, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-14	Fixed Attenuator, 0.008MHz Min, 200MHz Max, 19.50 X 15.50 MM, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-14	Fixed Attenuator, 0.008MHz Min, 200MHz Max, 19.50 X 15.50 MM, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-14
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Maker	CTS [CTS Corporation]	CTS [CTS Corporation]	CTS [CTS Corporation]	CTS [CTS Corporation]	CTS [CTS Corporation]	CTS [CTS Corporation]	CTS [CTS Corporation]
package instruction	,	19.50 X 15.50 MM, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-14	19.50 X 15.50 MM, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-14	19.50 X 15.50 MM, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-14	19.50 X 15.50 MM, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-14	19.50 X 15.50 MM, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-14	19.50 X 15.50 MM, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-14
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknow
Is it Rohs certified?	-	conform to	conform to	conform to	conform to	conform to	conform to
structure	-	COMPONENT	COMPONENT	COMPONENT	COMPONENT	COMPONENT	COMPONENT
Maximum operating frequency	-	200 MHz	200 MHz	200 MHz	200 MHz	200 MHz	200 MHz
Minimum operating frequency	-	0.008 MHz	0.008 MHz	0.008 MHz	0.008 MHz	0.008 MHz	0.008 MHz
Maximum operating temperature	-	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
RF/Microwave Device Types	-	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR
