PT01CE-18-11SZ(SR) datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> PT01CE-18-11SZ(SR)

Preview

PT01CE-18-11SZ(SR): DescriptionMIL Series Connector, 11 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Plug; CategoryThe connector The connector; File Size97KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

PT01CE-18-11SZ(SR) Overview

MIL Series Connector, 11 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Plug

PT01CE-18-11SZ(SR) Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Other features	STANDARD: MIL-C-26482, COMPATIBLE CONTACT: 10-257982-16F
Back shell type	SOLID
Body/casing type	PLUG
Connector type	MIL SERIES CONNECTOR
Contact point gender	FEMALE
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT RESISTANT; MOISTURE RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	PT01CE
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	CADMIUM PLATED
Shell material	ALUMINUM ALLOY
Housing size	18
Termination type	CRIMP
Total number of contacts	11

Preview

Download Datasheet

View All

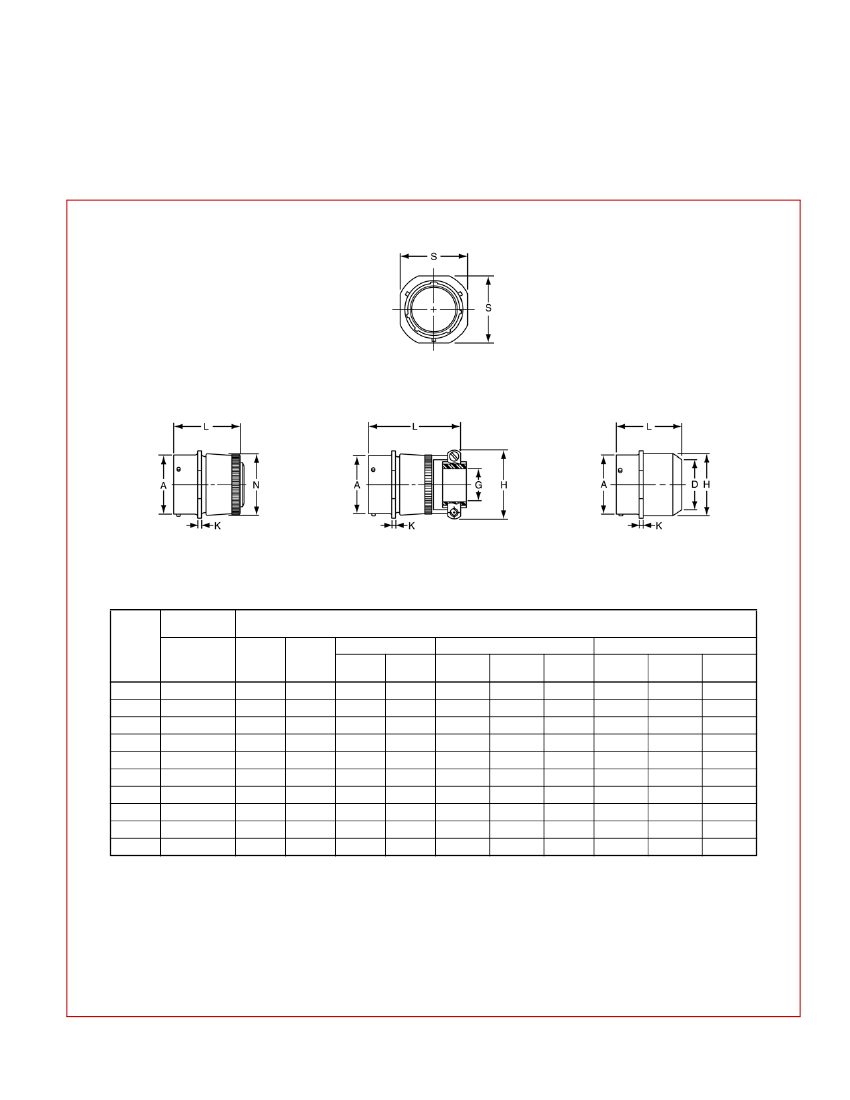

PT01 CE

cable connecting receptacle

TERMINATION ASSEMBLIES

“CE” Open Wire Seal

“CE” (SR) Strain Relief

“CP” Potting Boot

PT01CE-XX-XXX

SP01CE-XX-XXX

PT01CE-XX-XXX (SR)

SP01CE-XX-XXX (SR)

PT01CP-XX-XXX

Note: This connector style is sometimes referred to as a cable connecting

“plug”. It does, however, mate with either a straight or 90 degree plug.

To complete part number see how to order on page 42.

Receptacle

Front View

A Dia.

+.001

–.005

Class “CE”

K

±.016

L

Max.

N

Dia.

G

Dia.

Receptacle

Side View

Class “CE” (SR)

H

Dia.

L

Max.

D Dia.

Min.

Class “CP”

L

Max.

N Dia.

Max.

Shell

Size

S

±.016

6

8

10

12

14

16

18

20

22

24

.688

.812

.938

1.031

1.125

1.219

1.312

1.438

1.562

1.688

.348

.473

.590

.750

.875

1.000

1.125

1.250

1.375

1.500

.094

.115

1.468

1.562

1.625

.440

.560

.685

.813

.930

1.057

1.175

1.301

1.428

1.555

–

.125

.188

.312

.375

.500

.625

.750

.800

–

.797

.859

.984

1.109

1.172

1.422

1.609

1.703

–

1.982

2.114

2.207

2.219

–

.327

.444

.558

.683

.808

.909

1.034

1.159

1.284

–

1.702

1.796

1.827

–

.608

.734

.858

.984

1.110

1.234

1.360

1.484

1.610

All dimensions for reference only.
