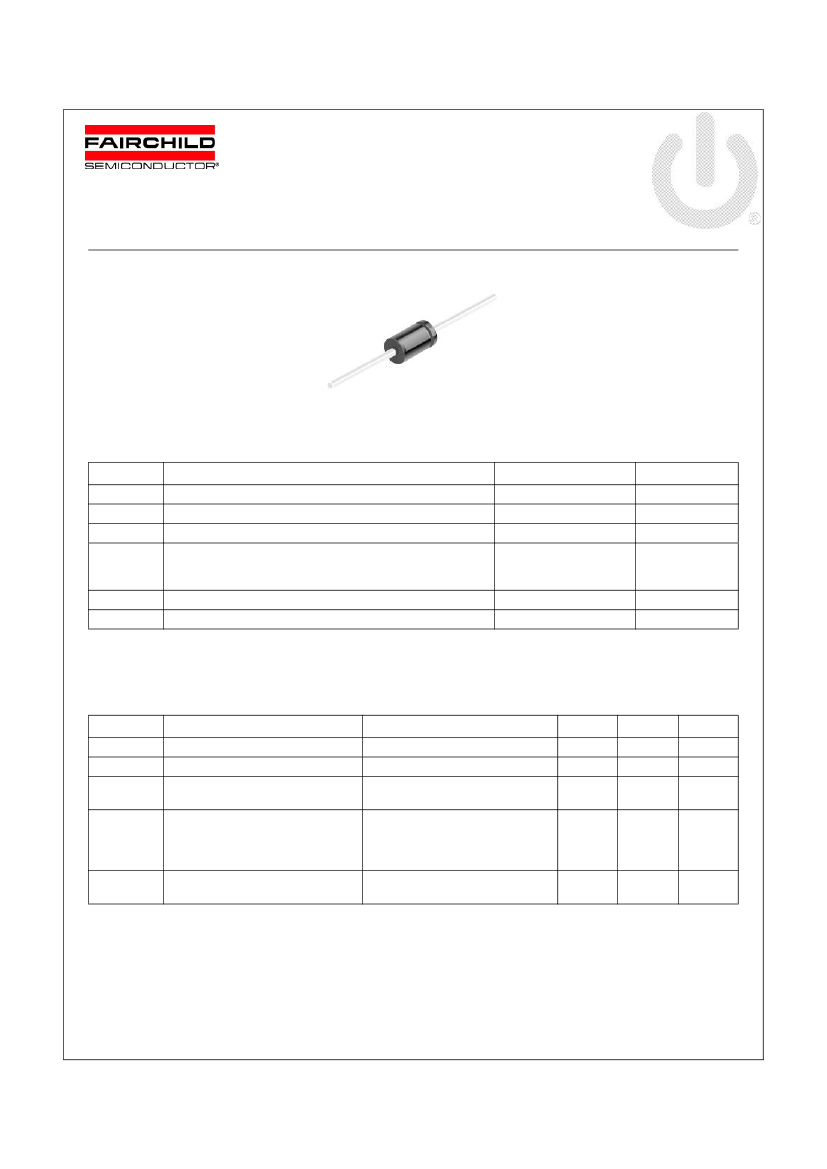

BAX16 — High Voltage General Purpose Diode
April 2008
BAX16
High Voltage General Purpose Diode
DO-35 Glass case
COLOR BAND DENOTES CATHODE
Absolute Maximum Ratings
Symbol
V
RRM
I
F(AV)
i
f
I
FSM
* T
a
= 25°C unless otherwise noted
Parameter
Maximum Repetitive Reverse Voltage
Average Rectified Forward Current
Recurrent Peak Forward Current
Non-repetitive Peak Forward Surge Current
Pulse Width = 1.0 s
Pulse Width = 1.0
ms
Storage Temperature Range
Operating Junction Temperature
Value
150
200
600
1
4
-65 to 200
175
Unit
V
mA
mA
A
A
°C
°C
T
STG
T
J
* These ratings are limiting values above which the serviceability of the diode may be impaired.
Notes:
1) These ratings are based on a maximum junction temperature of 200degrees C.
2) These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.
Electrical Characteristics
Symbol
V
R
V
F
V
FP
I
R
* T
a
= 25°C unless otherwise noted
Parameter
Breakdown Voltage
Forward Voltage
Forward Voltage
Pulse Width = 300ms
Reverse Leakage
I
R
= 100mA
I
F
= 1.0mA
I
F
= 100mA
I
F
= 200mA
Conditions
Min.
180
Max.
0.65
1.3
1.5
25
25
100
100
120
Units
V
V
V
R
= 50V
V
R
= 50V, T
A
= 150°C
V
R
= 150V
V
R
= 150V, T
A
= 150°C
I
F
= 30mA, I
R
= 30mA,
I
rr
= 1.0mA, R
L
= 100W
nA
mA
nA
mA
ns
t
rr
Reverse Recovery Time
© 2007 Fairchild Semiconductor Corporation
BAX16 Rev. 1.0.0
1
www.fairchildsemi.com
BAX16

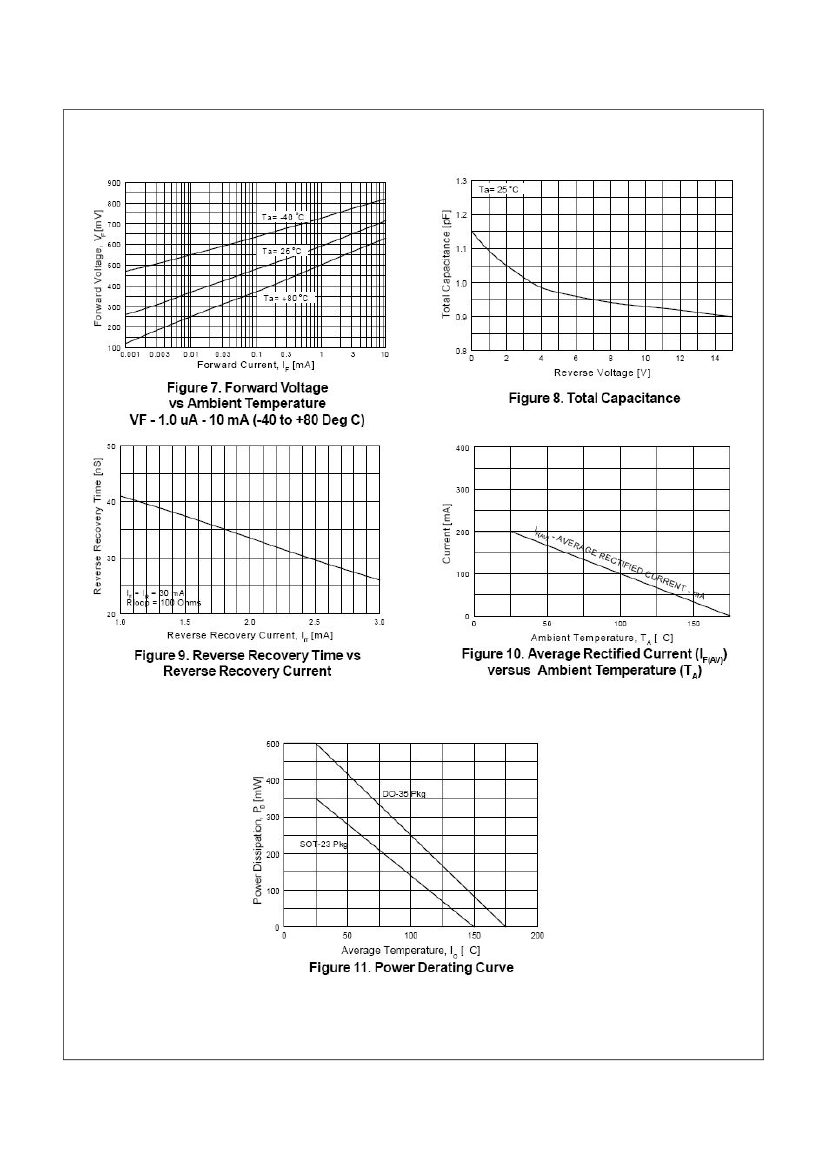

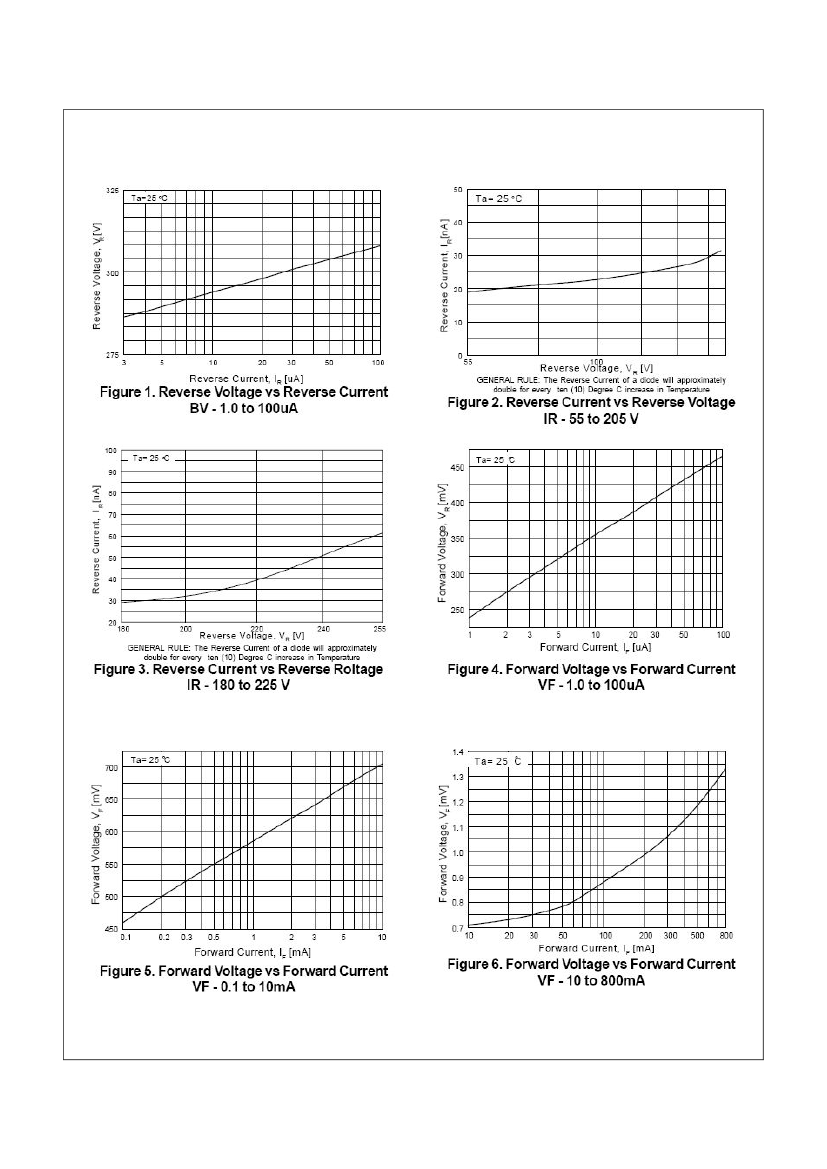

BAX16 High Voltage General Purpose Diode
