EH13-620-FREQ-OUT9 datasheet, PDF

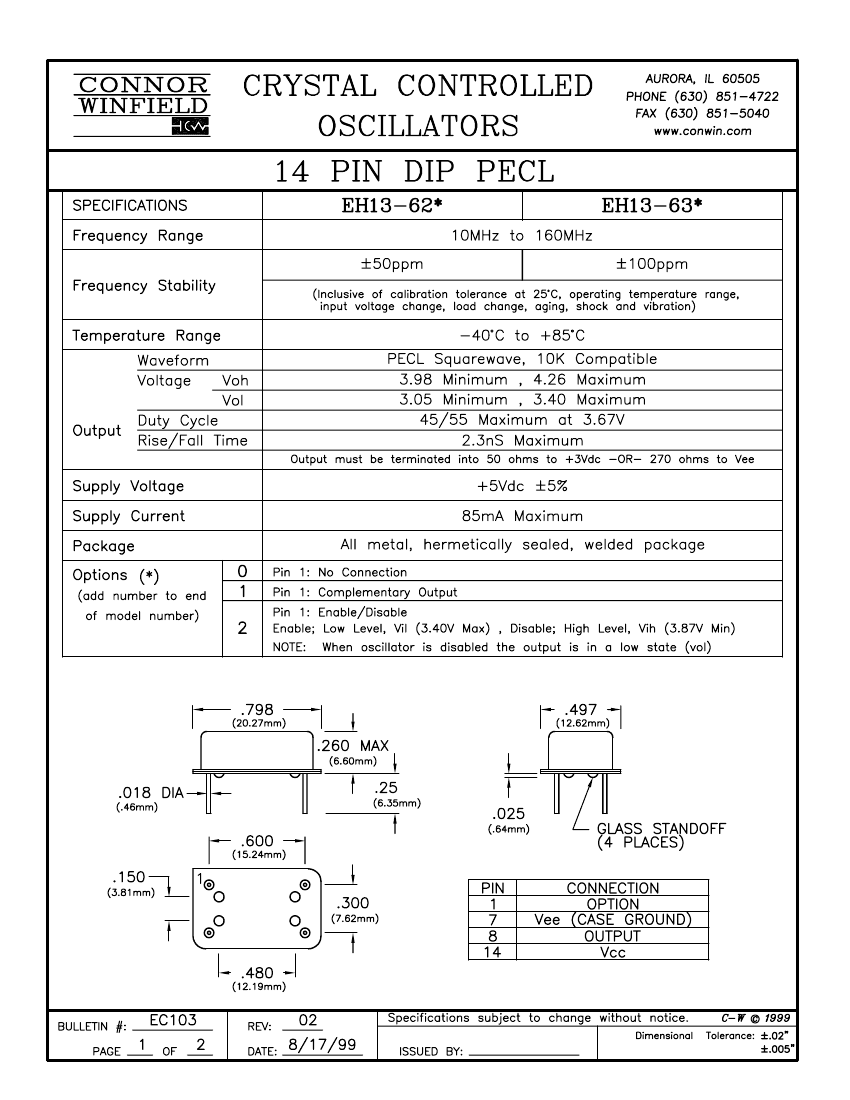

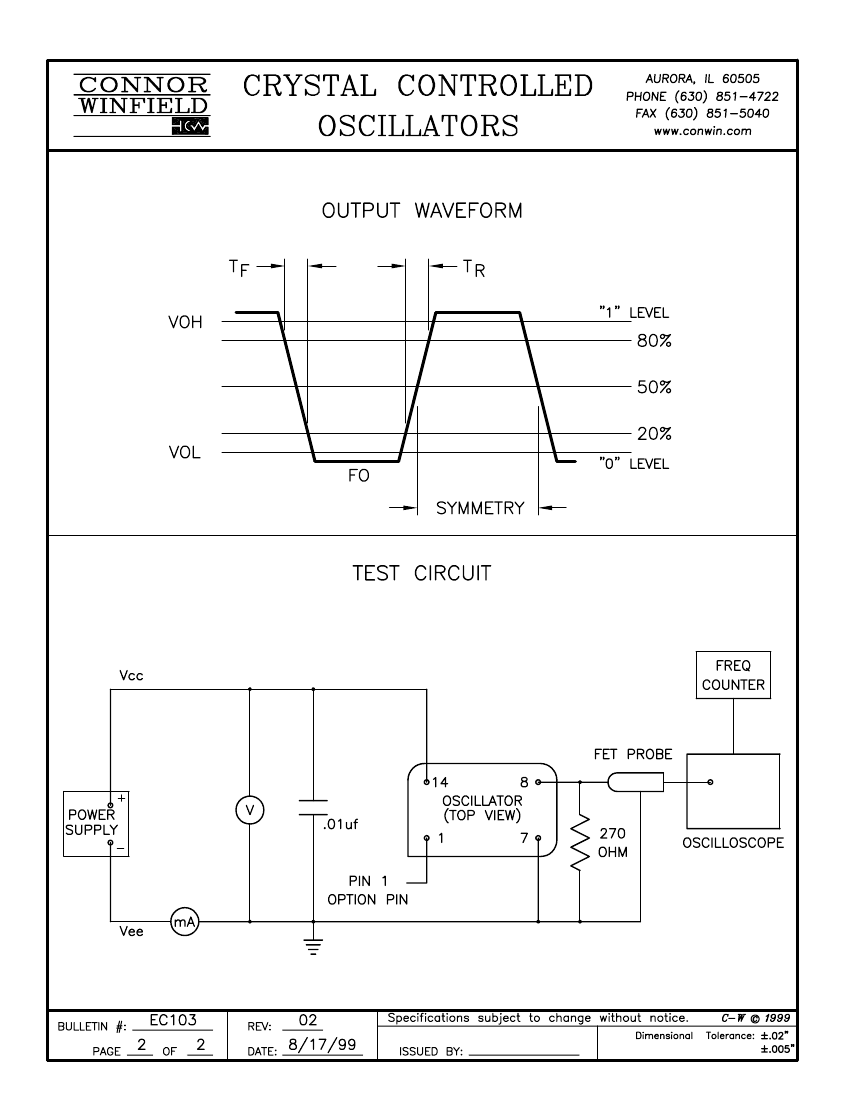

EH13-620-FREQ-OUT9: DescriptionPECL 10K Output Clock Oscillator, 10MHz Min, 160MHz Max, HERMETICALLY SEALED, WELDED, METAL, DIP-4; CategoryPassive components oscillator; File Size86KB，2 Pages; ManufacturerConnor-Winfield; Websitehttp://www.conwin.com/

Download Datasheet Parametric Compare View All

EH13-620-FREQ-OUT9 Overview

PECL 10K Output Clock Oscillator, 10MHz Min, 160MHz Max, HERMETICALLY SEALED, WELDED, METAL, DIP-4

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Connor-Winfield
Reach Compliance Code	unknown
maximum descent time	2.3 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Manufacturer's serial number	EH13-62
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	160 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	PECL 10K
Output load	50 OHM AND 270 OHM
physical size	20.27mm x 12.62mm x 6.6mm
longest rise time	2.3 ns
Nominal supply voltage	5 V
surface mount	NO
maximum symmetry	45/55 %

	EH13-620-FREQ-OUT9	EH13-622-FREQ-OUT9	EH13-632-FREQ-OUT9
Description	PECL 10K Output Clock Oscillator, 10MHz Min, 160MHz Max, HERMETICALLY SEALED, WELDED, METAL, DIP-4	PECL 10K Output Clock Oscillator, 10MHz Min, 160MHz Max, HERMETICALLY SEALED, WELDED, METAL, DIP-4	PECL 10K Output Clock Oscillator, 10MHz Min, 160MHz Max, HERMETICALLY SEALED, WELDED, METAL, DIP-4
Is it lead-free?	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Connor-Winfield	Connor-Winfield	Connor-Winfield
Reach Compliance Code	unknown	unknown	unknown
maximum descent time	2.3 ns	2.3 ns	2.3 ns
Frequency Adjustment - Mechanical	NO	NO	NO
frequency stability	50%	50%	100%
Manufacturer's serial number	EH13-62	EH13-62	EH13-63
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Maximum operating frequency	160 MHz	160 MHz	160 MHz
Minimum operating frequency	10 MHz	10 MHz	10 MHz
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Oscillator type	PECL 10K	PECL 10K	PECL 10K
Output load	50 OHM AND 270 OHM	50 OHM AND 270 OHM	50 OHM AND 270 OHM
physical size	20.27mm x 12.62mm x 6.6mm	20.27mm x 12.62mm x 6.6mm	20.27mm x 12.62mm x 6.6mm
longest rise time	2.3 ns	2.3 ns	2.3 ns
Nominal supply voltage	5 V	5 V	5 V
surface mount	NO	NO	NO
maximum symmetry	45/55 %	45/55 %	45/55 %
