MIC632BM datasheet, PDF - EEWORLD Datasheet

MIC632BM: DescriptionSwitching Regulator, Current-mode, 0.45A, 50kHz Switching Freq-Max, PDSO8, 0.150 INCH, SOIC-8; CategoryPower/power management The power supply circuit; File Size375KB，9 Pages; ManufacturerMicrel ( Microchip ); Websitehttps://www.microchip.com

Download Datasheet Parametric View All

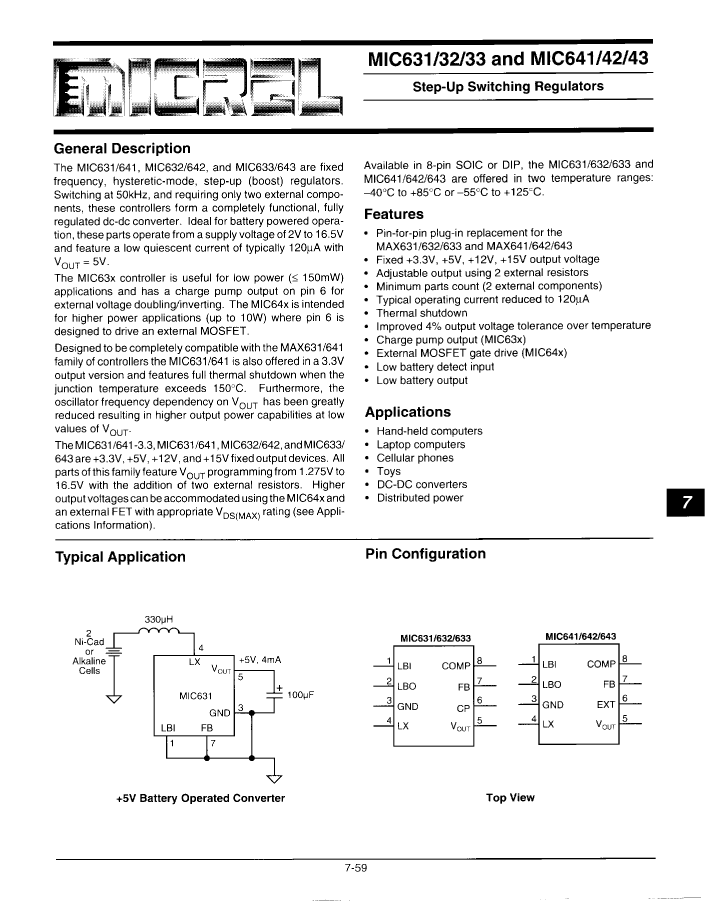

MIC632BM Overview

Switching Regulator, Current-mode, 0.45A, 50kHz Switching Freq-Max, PDSO8, 0.150 INCH, SOIC-8

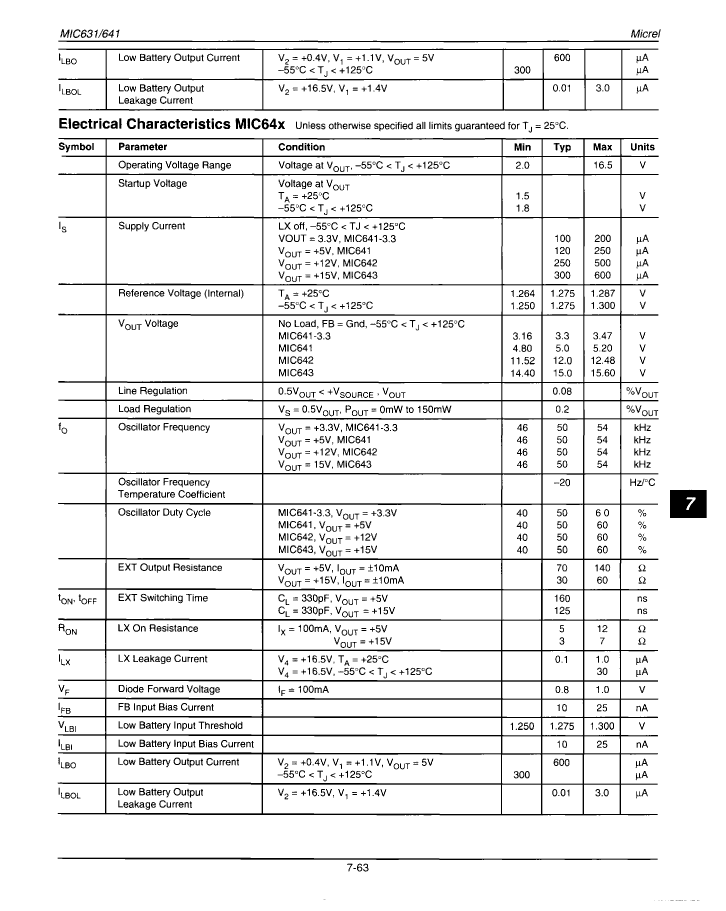

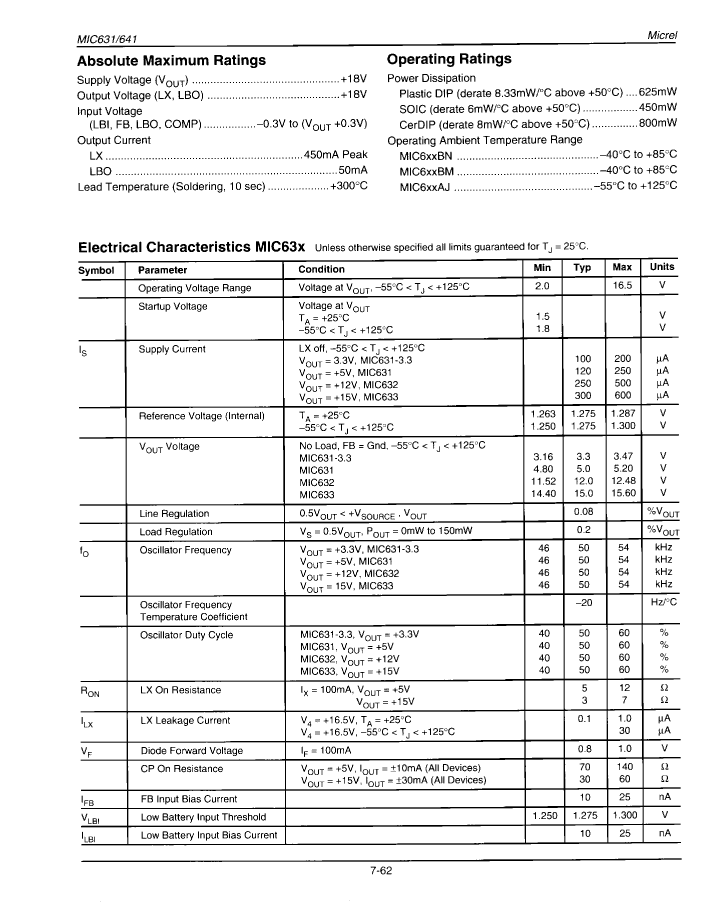

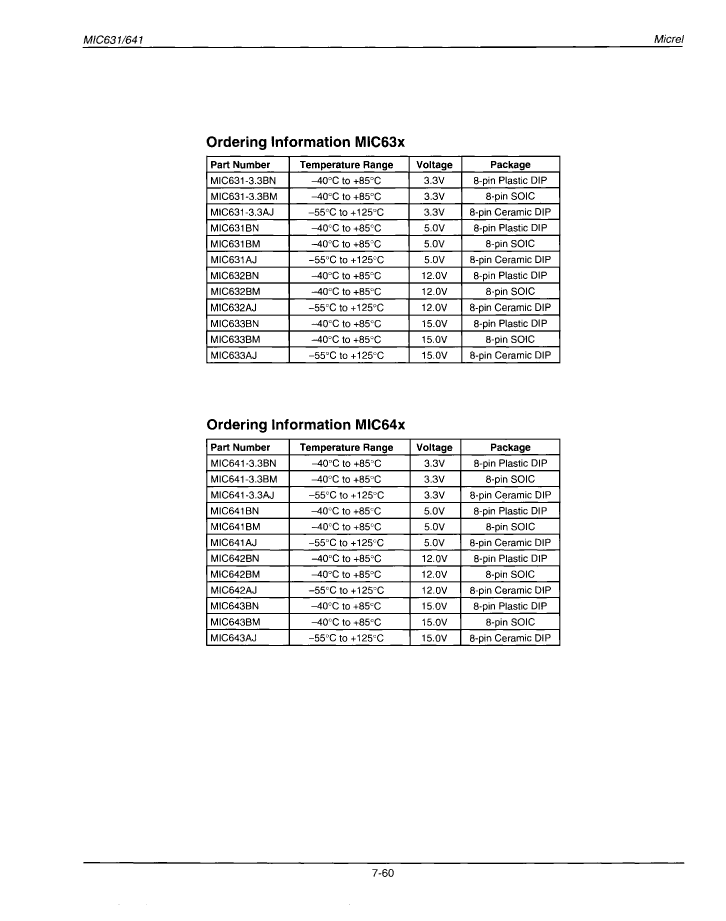

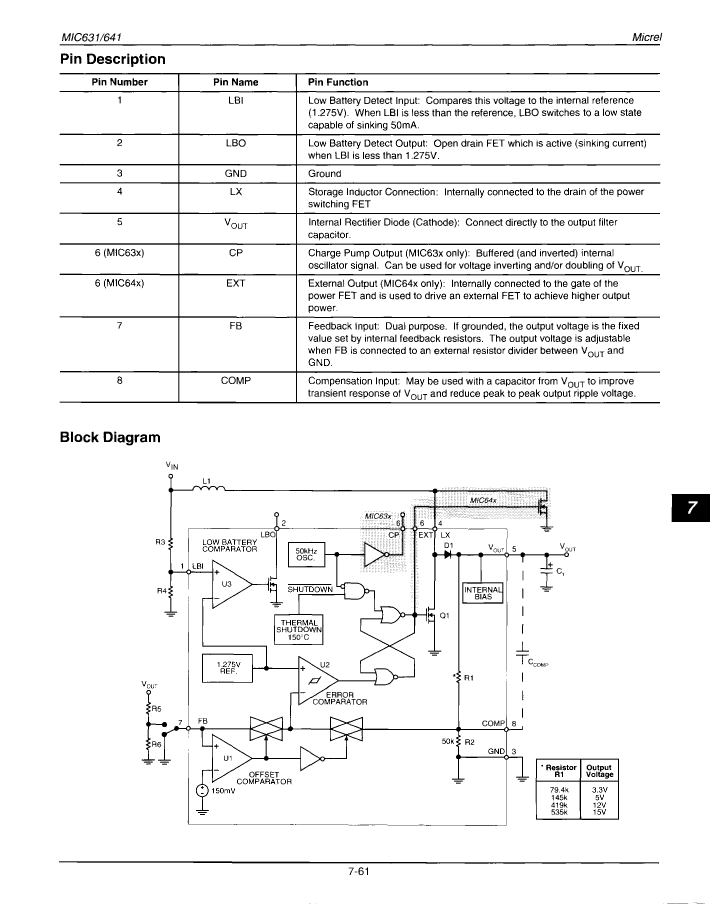

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Micrel ( Microchip )
Parts packaging code	SOIC
package instruction	SOP, SOP8,.25
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR
control mode	CURRENT-MODE
Control Technology	HYSTERETIC CURRENT MODE
Maximum input voltage	16.5 V
Minimum input voltage	2 V
JESD-30 code	R-PDSO-G8
JESD-609 code	e0
length	4.9 mm
Humidity sensitivity level	1
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output current	0.45 A
Nominal output voltage	12 V
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply current (Isup)	0.5 mA
surface mount	YES
Switch configuration	BOOST
Maximum switching frequency	50 kHz
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	3.9 mm
