TECHNICAL DATA SHEET
1/3

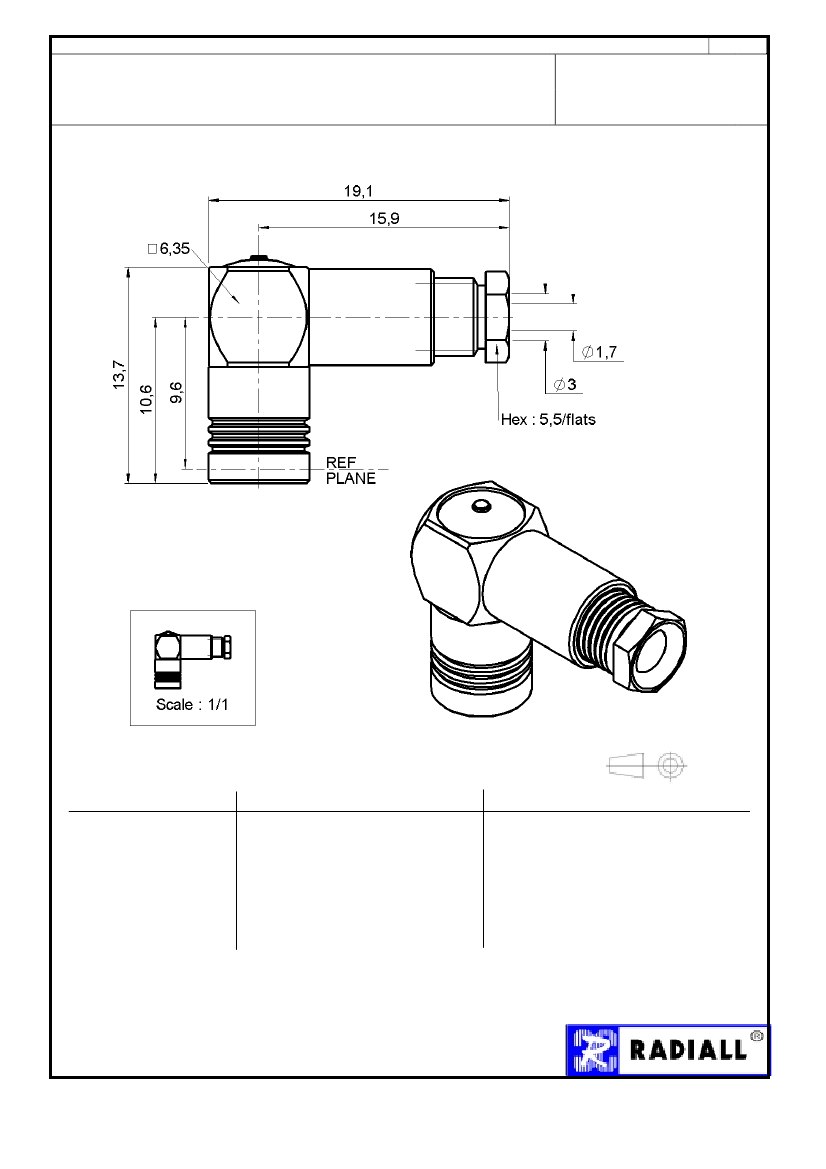

RIGHT ANGLE PLUG CLAMP TYPE
CABLE 2.6/50+75 S
R114.165.000
Series :
SMB
All dimensions are in mm.
.
pn
.
ao
COMPONENTS
BODY
CENTER CONTACT
OUTER CONTACT
INSULATOR
GASKET
OTHERS PARTS
-
-
MATERIALS
BRASS
BERYLLIUM COPPER
BERYLLIUM COPPER
PTFE
-
BRASS
-
-
PLATINGS
(µm)
GOLD 0.2 OVER NICKEL 2
GOLD 1.3 OVER NICKEL 2
GOLD 0.5 OVER NICKEL 2
GOLD 0.2 OVER NICKEL 2
-
-
Issue : 0050 Q
In the effort to improve our products, we reserve the right to make changes judged to be
necessary.
TECHNICAL DATA SHEET
2/3
RIGHT ANGLE PLUG CLAMP TYPE
CABLE 2.6/50+75 S
R114.165.000
Series :
SMB
PACKAGING
Standard
100
Unit
‘W’ option
Other
Contact us
SPECIFICATION
CABLE ASSEMBLY
ELECTRICAL CHARACTERISTICS
Impedance
Frequency
VSWR
1.35 +
Insertion loss
RF leakage
-(
Voltage rating
Dielectric withstanding voltage
Insulation resistance
50
0-4
0.040
0.50
57
335
1000
1000
Ω
GHz
x F(GHz) Maxi
Veff Maxi
Veff mini
MΩ mini
Stripping
a
1.50
b
0.00
c
4.00
d
5.00
e
2.00
f
0.00
mm
√F(GHz)
dB Maxi
- F(GHz)) dB mini
Assembly instruction
:
Recommended cable(s)
KX 22A
RG 179
RG 188
RG 187
RG 316
MECHANICAL CHARACTERISTICS
Center contact retention
Axial force – Mating end
Axial force – Opposite end
Torque
10
N mini
10
N mini
NA
N.cm mini
Cable retention
- pull off
- torque
110
N mini
NA
N.cm
TOOLING
Part Number
.
Description
.
Hexagon
.
Recommended torque
Mating
Panel nut
Clamp nut
A/F clamp nut
Mating life
Weight
NA
NA
40
5.000
N.cm
N.cm
N.cm
mm
OTHERS CHARACTERISTICS
-
500
Cycles mini
4.800
g
ENVIRONMENTAL
Operating temperature
Hermetic seal
Panel leakage
-65/+165
° C
NA
Atm.cm3/s
NA
Issue : 0050 Q
In the effort to improve our products, we reserve the right to make changes judged to be
necessary.
TECHNICAL DATA SHEET
3/3
RIGHT ANGLE PLUG CLAMP TYPE
CABLE 2.6/50+75 S
COMPONENTS
Cap
Clamp nut
Washer 1
Washer 2
R114.165.000
Series :
SMB
Gasket
Braid-clamp
Body
1

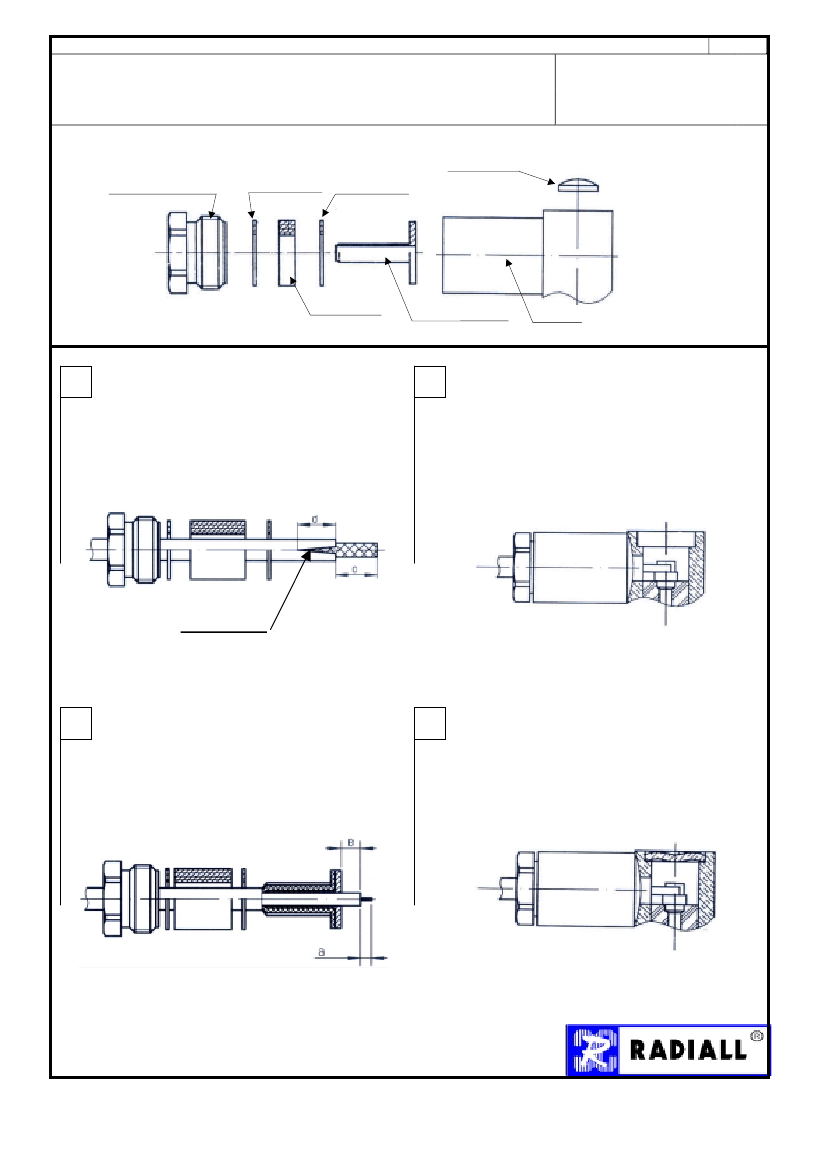

Slide the back nut,the washer1 ,the gasket,the washer2 onto
the cable.
Strip the cable.
Cut 2 slits in the jacket if necessary.
3
Screw sub-assembly into the connector body with the
adapted wrench.
Recommended coupling torque (see connector TDS).
Solder the inner conductor.
2 slits at 180°
2
Mount the braid-clamp
Trim braid toØ of braid-clamp
Stripp off the dielectric
4
Place the cap into the body.
Press on the cap flush or slightly below the surface of
the body assembly.
Issue : 0050 Q
In the effort to improve our products, we reserve the right to make changes judged to be
necessary.
