BC847BW datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BC847BW

BC847BW: Description100 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR; CategoryDiscrete semiconductor The transistor; File Size407KB，2 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric Compare View All

BC847BW Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BC847BW	-	-	View	Buy Now

BC847BW Overview

100 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR

BC847BW Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Central Semiconductor
package instruction	PLASTIC, SUPERMINI-3
Contacts	3
Reach Compliance Code	_compli
ECCN code	EAR99
Maximum collector current (IC)	0.1 A
Collector-emitter maximum voltage	45 V
Configuration	SINGLE
Minimum DC current gain (hFE)	200
JESD-30 code	R-PDSO-G3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.275 W
Certification status	Not Qualified
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	100 MHz

Preview

Download Datasheet

View All

BC846W SERIES

BC847W SERIES

SURFACE MOUNT

NPN SILICON TRANSISTOR

w w w. c e n t r a l s e m i . c o m

DESCRIPTION:

The CENTRAL SEMICONDUCTOR BC846W and

BC847W Series types are NPN Silicon Transistors

manufactured by the epitaxial planar process, epoxy

molded in a SUPERmini

surface mount package,

designed for general purpose switching and amplifier

applications.

MARKING CODE: SEE MARKING CODE TABLE

ON FOLLOWING PAGE

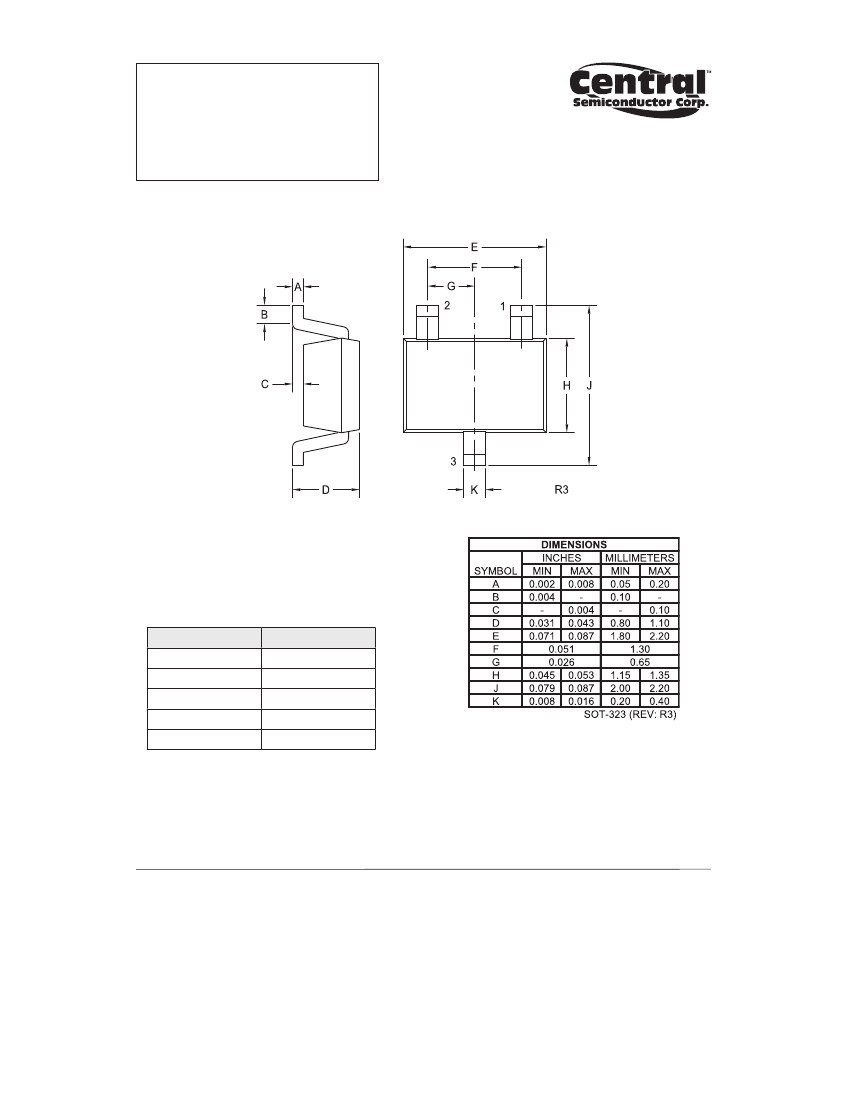

SOT-323 CASE

MAXIMUM RATINGS:

(TA=25°C)

Collector-Base Voltage

Collector-Emitter Voltage

Emitter-Base Voltage

Continuous Collector Current

Peak Collector Current

Peak Base Current

Power Dissipation

Operating and Storage Junction Temperature

Thermal Resistance

ELECTRICAL

SYMBOL

ICBO

IEBO

BVCBO

BVCEO

BVEBO

VCE(SAT)

VBE(ON)

Cob

Note: Reverse Lead Codes Available, Add “R” to

the end of the Part # and Marking Code.

SYMBOL

VCBO

VCEO

VEBO

ICM

IBM

TJ, Tstg

BC847W

BC846W

UNITS

°C

°C/W

5.0

100

200

275

-65 to +150

455

CHARACTERISTICS:

(TA=25°C unless

TEST CONDITIONS

VCB=30V

VCB=30V, TA=150°C

VEB=5.0V

IC=10μA (BC847W)

IC=10μA (BC846W)

IC=10mA (BC847W)

IC=10mA (BC846W)

IE=10μA

IC=10mA, IB=0.5mA

IC=100mA, IB=5.0mA

IC=2.0mA, VCE=5.0V

IC=10mA, VCE=5.0V

VCB=10V, IE=0, f=1.0MHz

VCE=5.0V, IC=10mA, f=100MHz

VCE=5.0V, IC=200μA,

RS=2.0KΩ, f=1.0KHz, BW=200Hz

otherwise noted)

MIN

MAX

5.0

100

5.0

0.25

0.60

0.70

0.77

3.0

0.58

100

BC846BW

BC847BW

MIN

MAX

200

450

UNITS

μA

MHz

hFE

VCE=5.0V, IC=2.0mA

BC846AW

BC847AW

MIN

MAX

110

220

BC847CW

MIN

MAX

420

800

R1 (20-November 2009)

BC847BW Related Products

	BC847BW	BC847AW	BC847CW	BC846AW	BC846BW	BC846W
Description	100 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR	100 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR	100 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR	100 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR	100 mA, 65 V, NPN, Si, SMALL SIGNAL TRANSISTOR	100 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR
Number of components	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3
surface mount	YES	YES	YES	YES	YES	Yes
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	-
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	-
Maker	Central Semiconductor	Central Semiconductor	Central Semiconductor	-	Central Semiconductor	-
package instruction	PLASTIC, SUPERMINI-3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	-
Contacts	3	3	3	3	3	-
Reach Compliance Code	_compli	_compli	not_compliant	_compli	_compli	-
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	-
Maximum collector current (IC)	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	-
Collector-emitter maximum voltage	45 V	45 V	45 V	65 V	65 V	-
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	-
Minimum DC current gain (hFE)	200	110	420	110	200	-
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	-
JESD-609 code	e0	e0	e0	e0	e0	-
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	-
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Polarity/channel type	NPN	NPN	NPN	NPN	NPN	-
Maximum power dissipation(Abs)	0.275 W	0.275 W	0.275 W	0.275 W	0.275 W	-
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Nominal transition frequency (fT)	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	-
