Part Number:
Status:
Description:
Documents:
Drawing (PDF)
0192210451
Active
Compression Style Ring Tongue Terminal for 4 AWG Wire, Stud Style 10, Un-Plated
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR18689
E32244
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Comments
Crimp Quality Equipment
Mil-Spec
Product Name
Type
Ring and Spade Terminals
19221
Heavy Duty
Yes
N/A
Battery Cable Lug
Ring
Physical
Barrel Type
Insulation
Material - Plating Mating
Packaging Type
Stud Size
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Closed
None
Tin
Bag
10 (M5)
Crimp or Compression
N/A
4
96.3 - 117.0
Material Info
Old Part Number
BCL-410
Search Parts in this Series
19221Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Putt Pump Dieless 0192860065
Head System
Manual tool for
0192940008
Crimping non-
insulated 8AWG thru
4/0 Terminals
Manual Putt Pump 0192860117
Hydraulic System,
Die set required
Die Set (large) for
0192900007
the HHLS Hydralic
Crimper
Reference - Drawing Numbers

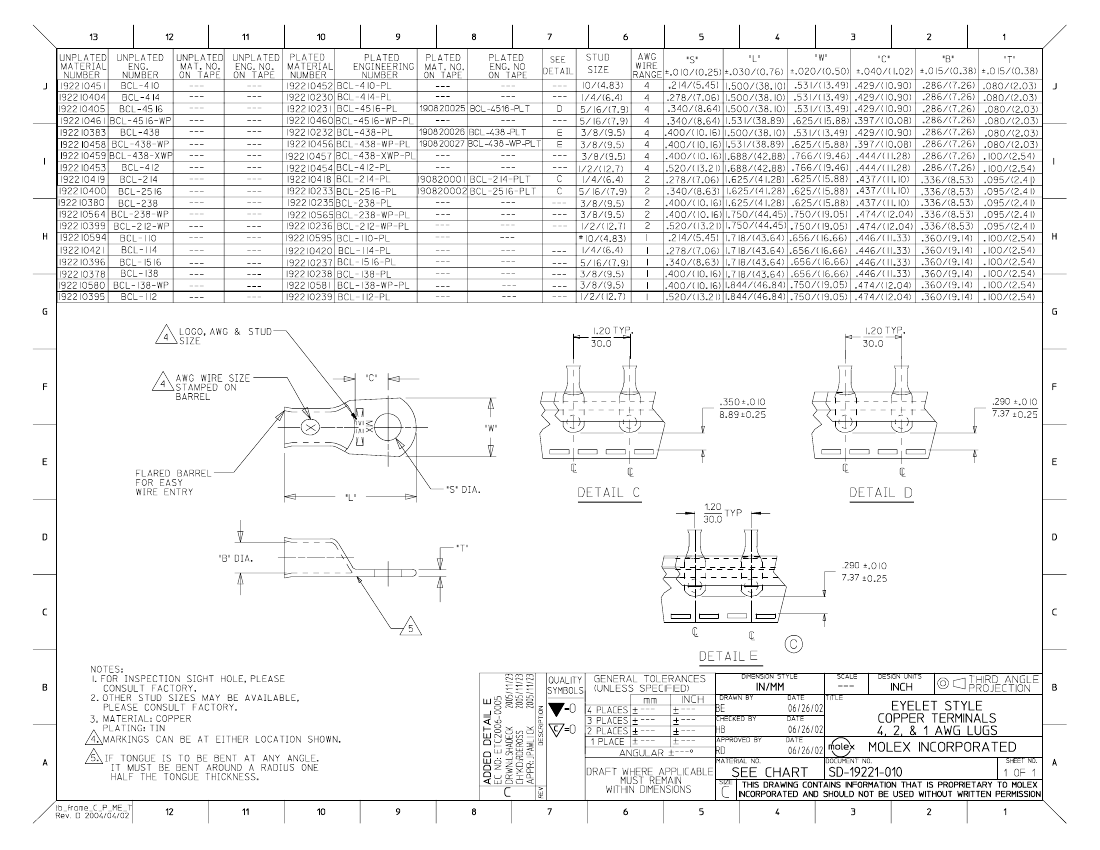

Sales Drawing
SD-19221-010
