B5818W-TP-HF Overview

Rectifier Diode,

B5818W-TP-HF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Micro Commercial Components (MCC)
Reach Compliance Code	compliant
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-G2
Humidity sensitivity level	1
Number of components	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Maximum power dissipation	0.25 W
Maximum repetitive peak reverse voltage	30 V
surface mount	YES
technology	SCHOTTKY
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	10

Preview

Download Datasheet

View All

MCC

Micro Commercial Components

omponents

20736 Marilla Street Chatsworth

!"#

$ % !"#

B5817W

Thru

B5819W

1 Amp Schottky

Barrier Rectifier

20 - 40 Volts

SOD-123

Features

•

Halogen

free available upon request by adding suffix "-HF"

Guard Ring Protection

Low Forward Voltage Drop

For Use in Low Voltage, High Frequency Inverters

Power Dissipation:250mW

Epoxy meets UL 94 V-0 flammability rating

Moisture Sensitivity Level 1

Lead Free Finish/RoHS Compliant("P" Suffix

designates RoHS Compliant. See ordering information)

Maximum Ratings

•

Operating Temperature: -65 to +125

Storage Temperature: -65 to +150

Maximum Thermal Resistance; 500K/W Junction To Ambient

Maximum

Recurrent

Peak Reverse

Voltage

20V

30V

40V

Maximum

Blocking

Voltage

20V

30V

40V

MCC

Part

Number

B5817W

B5818W

B5819W

Device

Marking

Maximum

RMS

Voltage

14V

21V

28V

DIMENSIONS

INCHES

MIN

MAX

MIN

MAX

.140

.152

3.55

3.85

.100

.112

2.55

2.85

.055

.071

1.40

1.80

-----

.053

-----

1.35

.012

.031

0.30

.78

.006

-----

0.15

-----

.01

-----

.25

-----

.006

-----

.15

Electrical Characteristics @ 25°C Unless Otherwise Specified

Average Forward

Current

Peak Forward Surge

Current

Maximum

Instantaneous

Forward Voltage

B5817W

B5818W

B5819W

Maximum DC

Reverse Current At

Rated DC Blocking

Voltage

Typical junction

capacitance

F(AV)

FSM

1.0A

10A

0.45V

0.55V

0.60V

0.75V

0.875V

0.90V

1mA

= 90

8.3ms, half sine

= 1.0A;

= 25

= 3A;

= 25

DIM

NOTE

0.093"

120pF

Measured at

1.0MHz , V

=4.0V

0.048"

0.036”

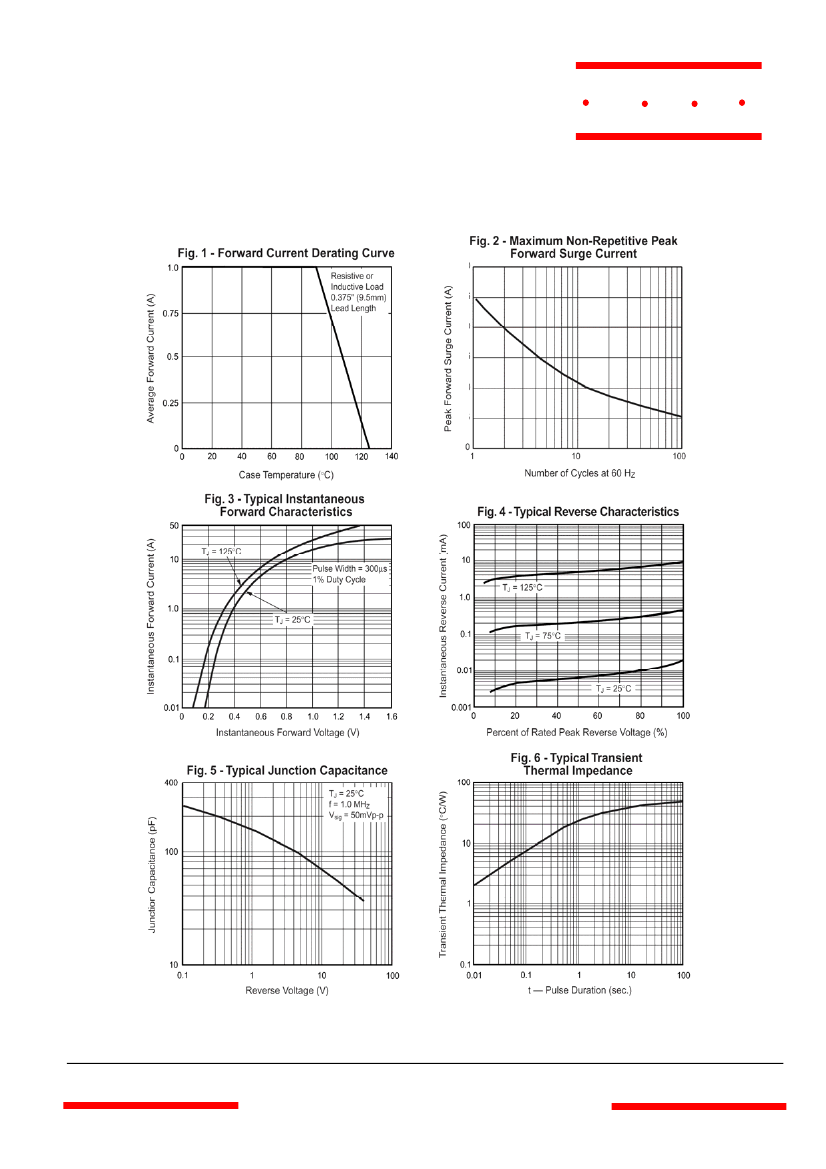

Revision:

www.mccsemi.com

1 of

2013/01/01
