LESHAN RADIO COMPANY, LTD.
Zener Voltage Regulators
225 mW SOT-23 Surface Mount
FEATURES
Non-wire bonding structure improves
High demand voltage range (3.6V-36V)
This is a Pb-Free device
LBZX84B2V0LT1G
Series
3
1
2
CONSTRUCTION
Silicon epitaxial planar
SOT– 23
Pb-Free package is available
ORDERING INFORMATION
Device
LBZX84B2V0LT1G Series
LBZX84B2V0LT3G Series
*See specific marking table.
Package
SOT-23
SOT-23
Shipping
3000/Tape&Reel
10000/Tape&Reel
3
CATHODE
1
ANODE
ABSOLUTE MAXIMUM TATINGS (Ta=25°C)
Parameter
Power dissipation
Junction temperature
Storage temperature
Operating temperature
Symbol
P
Tj
Tstg
Topr
Limits
225
+150
−55
to
+150
−55
to
+150
Unit
mW
°C
°C
°C
DEVICE MARKING CODE
Device
LBZX84B2V0LT1G
LBZX84B2V2LT1G
LBZX84B2V4LT1G
LBZX84B2V7LT1G
LBZX84B3V0LT1G
LBZX84B3V3LT1G
LBZX84B3V6LT1G
LBZX84B3V9LT1G
LBZX84B4V3LT1G
LBZX84B4V7LT1G
LBZX84B5V1LT1G
Marking
02
12
22
32
42
52
62
72
82
92
A2
Device
LBZX84B5V6LT1G
LBZX84B6V2LT1G
LBZX84B6V8LT1G
LBZX84B7V5LT1G
LBZX84B8V2LT1G
LBZX84B9V1LT1G
LBZX84B10LT1G
LBZX84B11LT1G
LBZX84B12LT1G
LBZX84B13LT1G
LBZX84B15LT1G
Marking
C2
E2
F2
H2
J2
L2
05
15
25
35
45
Device
LBZX84B16LT1G
LBZX84B18LT1G
LBZX84B20LT1G
LBZX84B22LT1G
LBZX84B24LT1G
LBZX84B27LT1G
LBZX84B30LT1G
LBZX84B33LT1G
LBZX84B36LT1G
−
−
Marking
55
65
75
85
95
A5
C5
E5
F5
−
−
Rev.O 1/7
LESHAN RADIO COMPANY, LTD.
LBZX84B2V0LT1G Series
ELECTRICAL CHARACTERISTICS
(Ta=25 C)
Zener voltage
Device
Min.
LBZX84B2V0LT1G
LBZX84B2V2LT1G
LBZX84B2V4LT1G
LBZX84B2V7LT1G
LBZX84B3V0LT1G
LBZX84B3V3LT1G
LBZX84B3V6LT1G
LBZX84B3V9LT1G
LBZX84B4V3LT1G
LBZX84B4V7LT1G
LBZX84B5V1LT1G
LBZX84B5V6LT1G
LBZX84B6V2LT1G
LBZX84B6V8LT1G
LBZX84B7V5LT1G
LBZX84B8V2LT1G
LBZX84B9V1LT1G
LBZX84B10LT1G
LBZX84B11LT1G
LBZX84B12LT1G
LBZX84B13LT1G
LBZX84B15LT1G
LBZX84B16LT1G
LBZX84B18LT1G
LBZX84B20LT1G
LBZX84B22LT1G
LBZX84B24LT1G
LBZX84B27LT1G
LBZX84B30LT1G
LBZX84B33LT1G
LBZX84B36LT1G
2.020
2.220
2.430
2.690
3.010
3.320
3.600
3.890
4.170
4.550
4.980
5.490
6.060
6.650
7.280
8.020
8.850
9.770
10.760
11.740
12.910
14.340
15.850
17.560
19.520
21.540
23.720
26.190
29.190
32.150
35.070
V
Z
(V)
Max.
2.200
2.410
2.630
2.910
3.220
3.530
3.845
4.160
4.430
4.750
5.200
5.730
6.330
6.930
7.600
8.360
9.230
10.210
11.220
12.240
13.490
14.980
16.510
18.350
20.390
22.470
24.780
27.530
30.690
33.790
36.870
I
Z
(mA)
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
Operating
resistance
Z
Z
(Ω)
Max.
100
100
100
110
120
120
100
100
100
100
80
60
60
40
30
30
30
30
30
30
37
42
50
65
85
100
120
150
200
250
300
I
Z
(mA)
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
Rising operating
resistance
Z
zk
(Ω)
Max.
1000
1000
1000
1000
1000
1000
1000
1000
1000
800
500
200
100
60
60
60
60
60
60
80
80
80
80
80
100
100
120
150
200
250
300
I
Z
(mA)
0.5
0.5
0.5
0.5
0.5
0.5
1.0
1.0
1.0
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
Reverse current
I
R
(µA)
Max.
120
120
100
100
50
20
10
5
5
2
2
1
1
0.5
0.5
0.5
0.5
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
V
R
(V)
0.5
0.7
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.5
2.5
3.0
3.5
4.0
5.0
6.0
7.0
8.0
9.0
10.0
11.0
12.0
13.0
15.0
17.0
19.0
21.0
23.0
25.0
27.0
Notes) 1. The Zener voltage (V
z
) is measured 40ms after power is supplied.
2. The operating resistances (Z
z
, Z
zk
) are measured by superimposing a minute alternating current on the regulated current (I
z
).
Rev.O 2/7
LESHAN RADIO COMPANY, LTD.
LBZX84B2V0LT1G Series

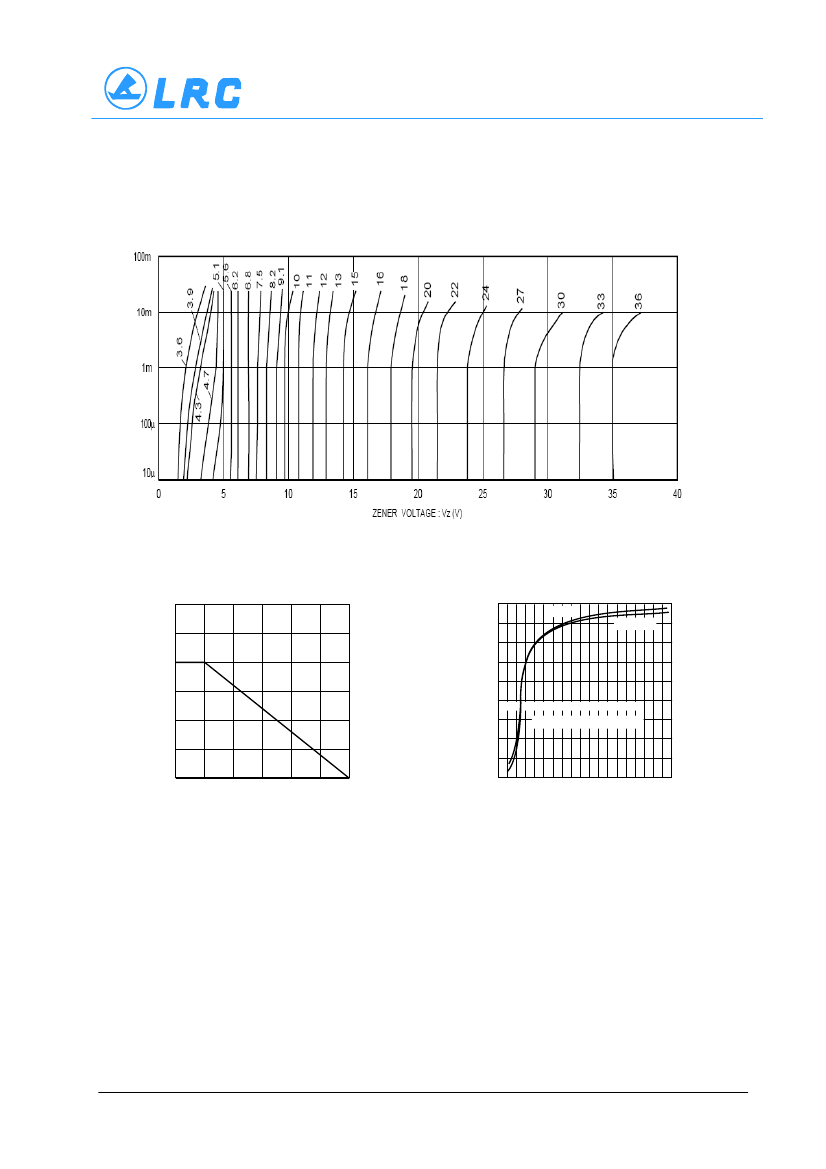

ELECTRICAL CHARACTERISTIC CURVES
(Ta=25 C)
ZENER CURRENT : I
Z
(
A)
Fig.1 Zener voltage characteristics
300
POWER DISSIPATION : Pd (mW)
TEMP. COEFFICIENT CHARACTERISTICS (% /
°C)
0.10
Iz=5mA
0.08
0.06
0.04
0.02
0.00
−0.02
−0.04
−0.06
−0.08
2
10
20
Iz=500µA
200
30
100
ZENER VOLTAGE : Vz (V)
0
0
25
50
100
150
AMBIENT TEMPERATURE : Ta (°C)
Fig.2 Derating curve
Fig.3 Zener voltage-temp.
coefficient characteristics
Rev.O 3/7
LESHAN RADIO COMPANY, LTD.
LBZX84B2V0LT1G Series
SOT-23
NOTES:
A
L
3
1
V
G
2
B S
DIM
A
B
C
D
G
H
J
K
K
J
L
S
V
1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M,1982
2. CONTROLLING DIMENSION: INCH.
INCHES
MIN
MAX
0.1102
0.1197
0.0472
0.0551
0.0350
0.0440
0.0150
0.0200
0.0701
0.0807
0.0005
0.0040
0.0034
0.0070
0.0140
0.0285
0.0350
0.0830
0.0177
0.0401
0.1039
0.0236
MILLIMETERS
MIN
MAX
2.80
3.04
1.20
1.40
0.89
1.11
0.37
0.50
1.78
2.04
0.013
0.100
0.085
0.177
0.35
0.69
0.89
2.10
0.45
1.02
2.64
0.60
C
D
H
PIN 1. BASE
2. EMITTER
3. COLLECTOR
0.037
0.95
0.037
0.95
0.079
2.0
0.035
0.9
0.031
0.8
inches
mm
Rev.O 4/7
LESHAN RADIO COMPANY, LTD.
Tape & Reel and Packaging Specifications for
Small-Signal Transistors, FETs and Diodes
Embossed Tape and Reel is used to facilitate automatic pick and place equipment feed requirements. The tape is used as the
shipping container for various products and requires a minimum of handling. The antistatic/conductive tape provides a secure
cavity for the product when sealed with the “peel–back” cover tape.
• Two Reel Sizes Available (7"and 13",)
• SOT–23, SC–70/SOT–323,
• Used for Automatic Pick and Place Feed Systems
SC–89, SC–88/SOT–363, SC–88A/SOT–353,
• Minimizes Product Handling
SOD–323, SOD-523 in 8 mm Tape
• EIA 481, –1, –2
Use the standard device title and add the required suffix as listed in the option table below (Table 1). Note that the individual
reels have a finite number of devices depending on the type of product contained in the tape. Also note the minimum lot size is
one full reel for each line item, and orders are required to be in increments of the single reel quantity.
SOD-323
8 mm
SC-59, SC-70, SC-75,SOT-23
8 mm
SC-88, SOT-363
T1 Orientation
8 mm
SC-88A, SOT-353
T1 Orientation
8 mm
Direction of Feed
Typical Reel Orientations
Table 1. EMBOSSED TAPE AND REEL ORDERING INFORMATION
Tape Width
(mm)
8
8
8
SC–70/SOT–323
8
8
SC–89
8
SC–88/SOT-363
8
8
8
SC–88A/SOT-353
8
8
8
8
SOD-523
8
330
(13)
10,000 T3
4
4
4
4
330
178
330
178
330
178
330
178
(13)
(7)
(13)
(7)
(13)
(7)
(13)
(7)
10,000 T3
3,000 T1
10,000 T3
3,000 T1
10,000 T3
3,000 T1
10,000 T3
3,000 T1
4
4
4
Pitch
mm
Reel Size
mm(inch)
178
330
178
330
178
Devices Per Reel
and Minimum
Order Quantity
(7)
(13)
(7)
(13)
(7)
Device
Suffix
3,000 T1
10,000 T3
3,000 T1
10,000 T3
3,000 T1
Package
SOT–23
SOD-323
Rev.O 5/7
