Stainless steel shell and collet nut, nickel plated brass latch sleeve and mid pieces
: 0 - 0 mm
PCA*: Free receptacle, cable collet
Performance
Configuration
Insulator
Rated Current
1S.902/ThC : 2 Thermocouple Pairs
L: PEEK (UL 94 / V-0/3.2, depends on material thickness)
Specifications
Max. Matings: 1000
ThC. Materials (P+/N-): Chromel / Constantan
Thermocouple (P+/N-): Pin 1 / Pin 2
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
1/3
Thermocouple (P+/N-): Pin 3 / Pin 4
Others
Endurance (Shell): 5000 mating cycles
Temp (min / max): -55°C / +250°C
Humidity (max): <=95% [at 60 deg C /140 F]
Vibration: 15 g [10 Hz - 2000 Hz]
Shock Resistance: 100 g [ 6 ms]
Salt Spray Corrosion: >144 hr
Climatical Category: 50/175/21
Shielding (min): 75 dB (10 MHz)
Shielding (min): 40 dB (1 GHz)
IP Rating: 50

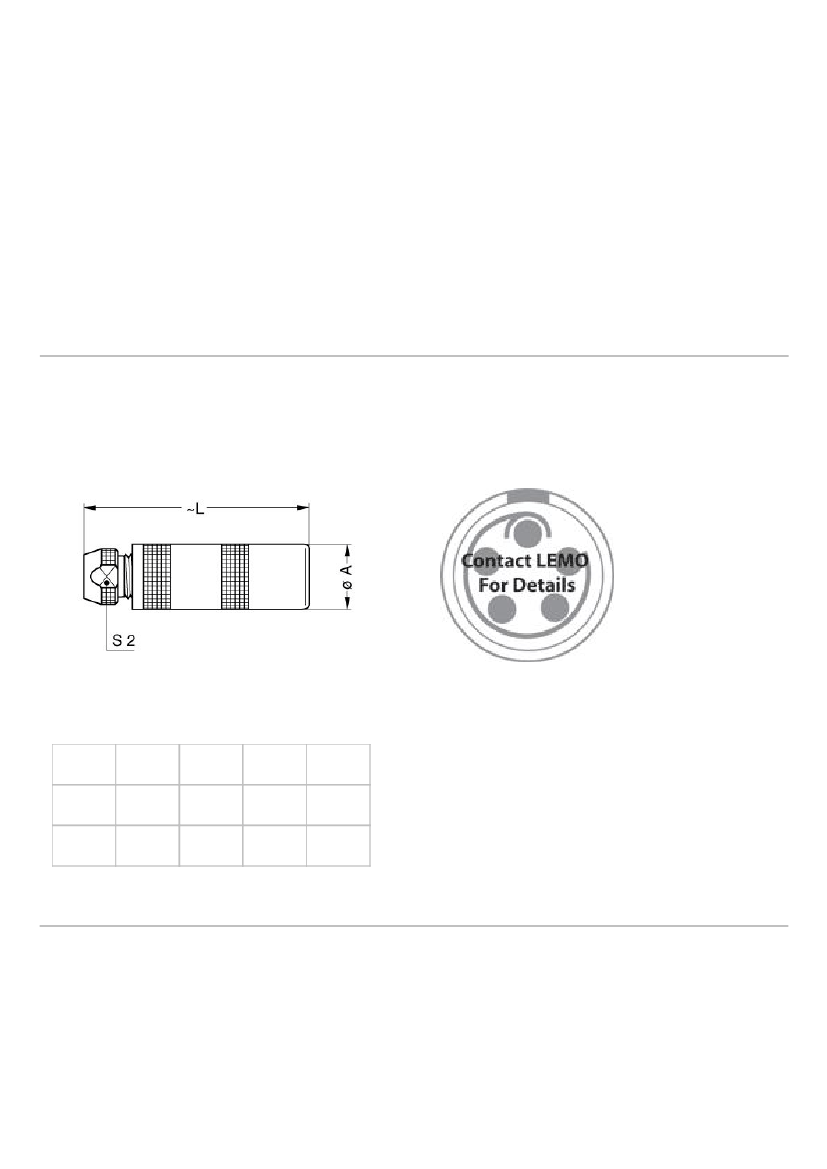

DRAWINGS
Draws
Dimensions
A
mm.
in.
11.9
0,47
C
6.2
0,24
L
40.5
1,59
S2
8.5
0,33
RECOMMENDED BY LEMO
Tools
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
2/3
Spanner wrench: DCD.1S.015.PA085
