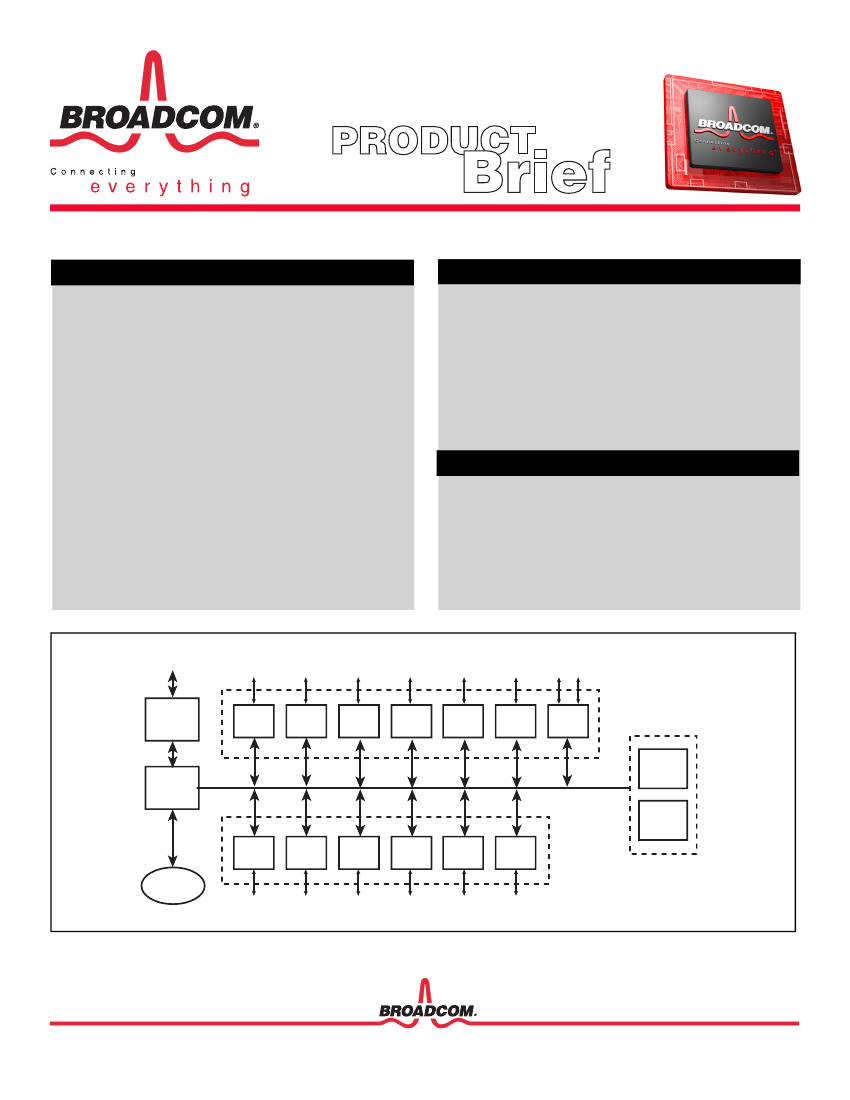

BCM5692
®
SCALABLE 12-PORT GIGABIT ETHERNET LAYER 2 SWITCH
FEATURES
•
12 10/100/1000-Mbps Ethernet ports supporting both copper
and fiber connections
•
Integrated high-performance SerDes
•
Single 10-Gbps XAUI HiGig expansion port
•
Gigabit Ethernet SerDes per port
•
4-pin per port SGMII interface to Gigabit Ethernet PHYs
•
32 million packets/second (line-rate) aggregate switching
capacity
•
64 entries of FFP (Fast Filter Processor™)
SUMMARY OF BENEFITS
•
System vendors can build scalable high-performance, high
port density Gigabit Ethernet LAN switches in several form
factors.
•
Built-in high-speed serial interfaces with Broadcom-unique
SerDes technology eases and accelerates system design, while
reducing cost and conserving board space.
•
Broadcom switch API compatability enables software reuse
and faster time-to-market.
•
Small package and low power enable cost-effective and high-
performance system design.
•
Scalable up to 32 BCM5692 switches in a system
•
Port trunking and mirroring supported across stacked
switches
•
Fully integrated data and address memory on-chip
•
Full duplex (802.3x) compatible flow control
TARGET APPLICATIONS
•
Layer 2 in modular Gigabit Ethernet switches
•
High port-count stand-alone or stackable Gigabit Ethernet
layer 2 switches
•
Advanced diagnostic features including IEEE1149.1 JTAG
boundary scan and BIST functionality
•
Low power
•
Enhanced thermal 480-pin EBGA package (pin-to-pin
compatible with BCM5690/BCM5691)
10 Gbps HiGig
TM
Interface
SerDes/
SGMII
SerDes/
SGMII
SerDes/
SGMII
SerDes/
SGMII
SerDes/
SGMII
SerDes/
SGMII
PCI BSC
IPIC
GPIC
GPIC
GPIC
GPIC
GPIC
GPIC
CMIC
L2
Table
MMU
VLAN
Table
GPIC
GPIC
GPIC
GPIC
GPIC
GPIC
CBP
SerDes/
SGMII
SerDes/
SGMII
SerDes/
SGMII
SerDes/
SGMII
SerDes/
SGMII
SerDes/
SGMII
12-Port Gigabit Ethernet Multilayer Switch With HiGig
TM
OVERVIEW
HiGig
TM
10 Gbps
XAUI Interface
HiGig
TM
XAUI
PCI 32/66 MHz
CPU Interface
HiGig
TM
CPU/IO
ARL
SRAM
High-Speed
On-chip Memory
Packet Buffer
MAC(s)
Built-in SerDes
with SGMII Support
The BCM5692 network switch is a scalable, modular chip solution with
12 ports. Each of these flexible ports supports Gigabit Ethernet or 10/
100-Mbps Ethernet. Additionally, the BCM5692 supports both copper
and fiber physical interfaces. The BCM5692 has a fully integrated
SerDes functionality consisting of a 10-Gbps XAUI HiGig Port, Gigabit
Ethernet, or SGMII PHY interface.
The 10-Gbps HiGig Expansion port supports explicit priority, port
trunking, and mirroring functions across switch elements. The HiGig
port can be used to interconnect up to 32 BCM5692 devices, making it
extremely useful for highly-scalable network switch applications.
The BCM5692 has a built-in Fast Filter Processor™ that supports Layer
2–Layer 7 ContentAware™ switching, packet filtering and network
processing per port. The FFP has 64 entries.
The BCM5692 supports advanced packet flow control such as head-of-
line blocking prevention and IEEE 802.3x compatible full-duplex
control. Moreover, the BCM5692 supports a fully- integrated data and
address memory.
The BCM5692 switch supports a BSC (Broadcom Serial Control bus)
controller for communicating with external devices such as serial
EEPROM, flash memories, and parallel port devices.
The modular switching architecture of the BCM5692 embodies the
scalability, integration, and performance features that a next-generation
switch requires.
Additional information
T h e a v a i l a b l e s y s t e m d e s i g n k i ts a r e B C M 9 5 6 9 0 K 2 4 a nd
BCM95690K24S, which include supporting documentation and
software. Please contact your local sales representative for more
information.
