PCA*: Free receptacle, cable collet and nut for fitting a bend relief
Hermaphroditic keying ("half moon" insert), plug has male pin 1
Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
: 6.3 - 7.2 mm
Z : Nut for fitting a bend relief
Performance
Configuration
Insulator
Rated Current
2S.303 : 3 Low Voltage
L: PEEK (UL 94 / V-0/3.2, depends on material thickness)
15 Amps
Specifications
Contact Type: Solder
Max. Matings: 5000
Contact Dia.: 1.3 mm (0.051in)
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
1/3
Bucket Dia.: 1 mm (0.039in)
Max. Solid Conductor: 0.5 mm^2 (AWG 20)
Max. Stranded Conductor: 0.5 mm^2 (AWG 20)
R (max): 3.6 mOhm
Vtest: 1500 V (AC), 2100 V (DC)
Others
Humidity (max): <=95% [at 60 deg C /140 F]
Vibration: 15 g [10 Hz - 2000 Hz]
Shock Resistance: 100 g [ 6 ms]
Salt Spray Corrosion: >144 hr
Climatical Category: 50/175/21
Shielding (min): 75 dB (10 MHz)
Shielding (min): 40 dB (1 GHz)
IP Rating: 50

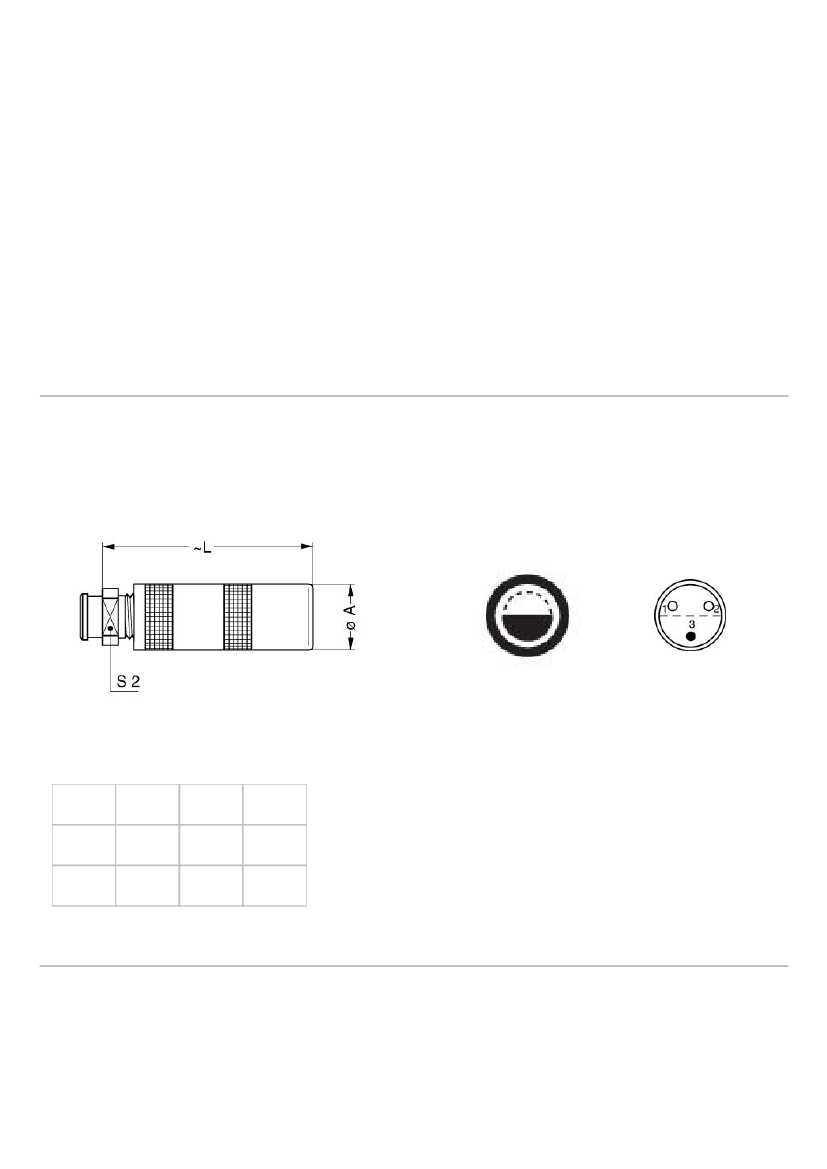

DRAWINGS
Draws
Dimensions
A
mm.
in.
14.8
0,58
L
50
1,97
S2
12
0,47
RECOMMENDED BY LEMO
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
2/3
Tools
Spanner wrench: DCD.2S.025.PA110
Cables
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
