BCSS-223-S-08-G-LF Overview

.079 cl Single Row - Horizontal Box Contact Socket Strip

Preview

Download Datasheet

View All

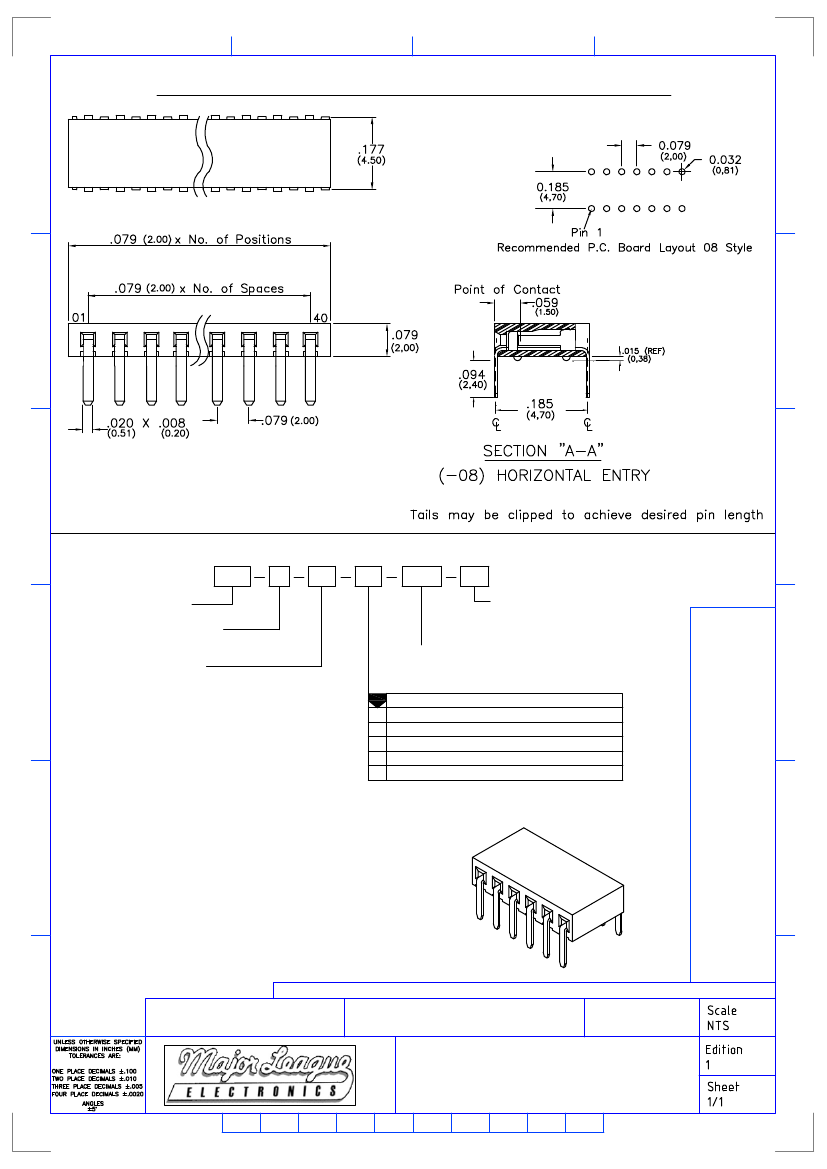

Major League Electronics .079 cl Box Contact Socket Strip - Horizontal

Ordering Information

BCSS-2

01 - 40

XXX

Lead Free

Mates with:

BSTC,

BSTCM,

BSTCR,

BSTCRSM,

BSTS,

TBSTC,

TBSTCM,

TBSTS,

TBSTCM,

TBSTS,

TSHC,

TSHCR,

TSHCRE,

TSHCRSM,

TSHR,

TSHRE,

TSHS,

TSHSCM,

TTSHC,

TTSHCR,

TTSHCRE,

TTSHR,

TTSHRE,

TTSHS,

TTSHSM

Pins Per Row

Row Specification

S = Single Row

Horizontal Entry

Leave blank if not needed

If required, specify empty pin position, e.g. 012 for Pin 12

Polarized Position

Plating Options

Specifications

Insertion Force - Single Contact only - H Plating:

3.7oz. (1,03N) avg with .0197 (0,50mm) sq. pin

Withdrawal Force - Single Contact only - H Plating:

2.2oz. (0,61N) avg with .0197 (0,50mm) sq. pin

Current Rating: 2.0 Ampere

Insulation Resistance: 1000MΩ Min.

Dielectric Withstanding: 500V AC

Contact Resistance: 20 mΩ Max.

Operating Temperature: -40°C to + 105°C

Max. Process Temperature:

Peak: 260°C up to 10 secs.

Process: 230°C up to 60 secs.

Wave: 260°C up to 6 secs.

Manual Solder: 350°C up to 5 secs.

Materials

Contact Material: Phosphor Bronze

Insulator Material: Nylon 6T

Plating: Au or Sn over 50µ" (1,27) Ni

10µ Gold on Contact Area / Flash on Tail

Matte Tin All Over

10µ Gold on Contact Area / Matte Tin on Tail

30µ Gold on Contact Area / Matte Tin on Tail

Gold Flash over Entire Pin

Products cut to specific sizes are uncancellable/nonreturnable

Parts are subject to change without notice

BCSS-2-SH SERIES

.079 cl Single Row - Horizontal

Box Contact Socket Strip

15 FEB 07

4235 Earnings Way, New Albany, Indiana, 47150, USA

1-800-782-3486 (USA/Canada/Mexico)

Tel: 812-944-7244

Fax: 812-944-7268

E-mail: mle@mlelectronics.com

Web: www.mlelectronics.com
