BLN010: DescriptionElectric Fuse, Fast Blow, 10A, 250VAC, 10000A (IR), Inline/holder, ROHS COMPLIANT; CategoryCircuit protection Circuit protection; File Size128KB，2 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com; Environmental Compliance

Download Datasheet Parametric View All

BLN010 Overview

Electric Fuse, Fast Blow, 10A, 250VAC, 10000A (IR), Inline/holder, ROHS COMPLIANT

BLN010 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Littelfuse
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Fusing characteristics	FAST
body height	38.1 mm
Body length or diameter	10.31 mm
Circuit protection type	ELECTRIC FUSE
Installation features	INLINE/HOLDER
physical size	10.31mm x 38.1mm
Rated breaking capacity	10000 A
Rated current	10 A
Rated voltage	250 V
Rated voltage (AC)	250 V
Guideline	CSA; PSE; UL
surface mount	NO
Terminal shape	END CAP

Preview

Download Datasheet

View All

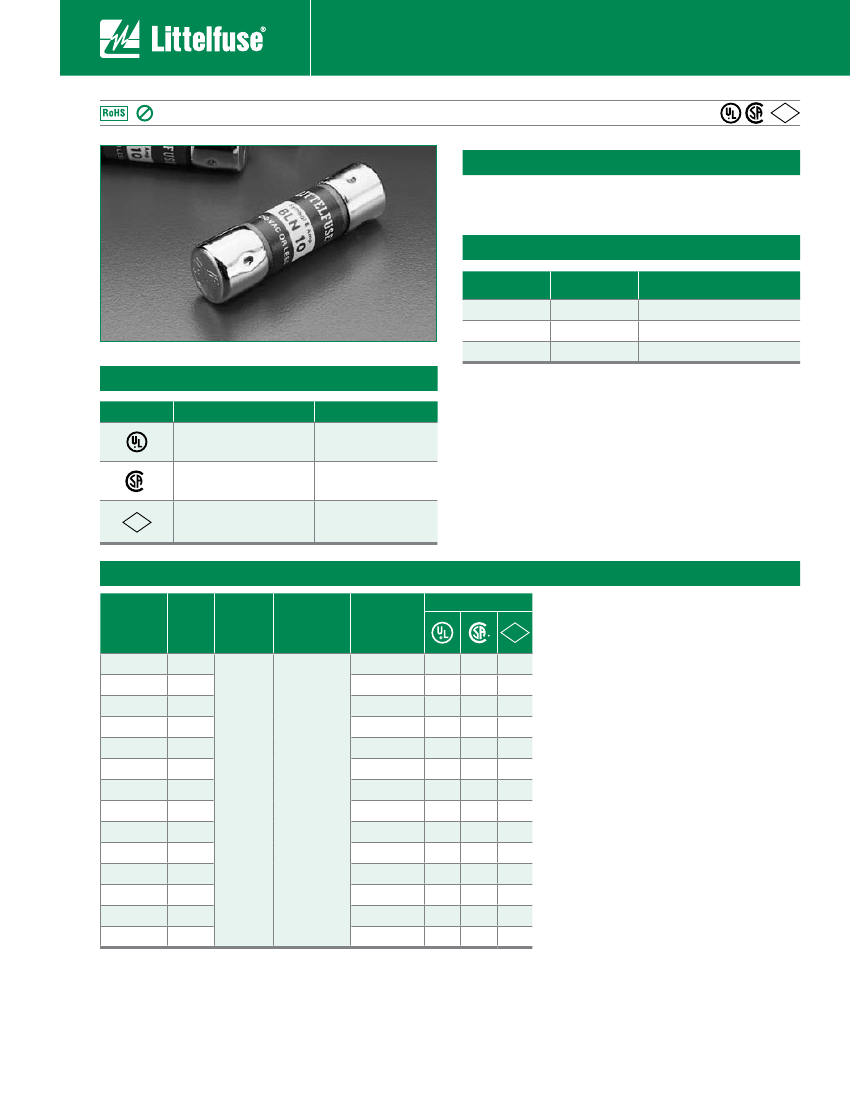

Cartridge and Axial Lead Fuses

Fibre Body Fast-Acting Type > BLN Series

Pb

BLN Series

Fibre Body Fast-acting Midget / 5AG Size Fuse

®

PS

E

Description

Fibertube, 250 V BLN Fuses provide low-cost protection for

military applications and control circuits.

Electrical Characteristics for Series

% of Ampere

Rating

100%

135%

200%

Ampere Rating

0-30

0–30

0-30

Opening Time

Until temp stabilizes

1 hours, Maximum

2 minutes, Maximum

Agency Approvals

Agency

Agency File Number

Ampere Range

E10480

LR2 9862

1.0 - 30A

®

PS

E

NBK170305-E10480A-D

1.0 - 30A

Electrical Characteristicsby Item

Speciﬁcations

Ordering

Number

BLN 001

BLN 01.5

BLN 002

BLN 003

BLN 004

BLN 005

BLN 006.

BLN 008

BLN 010

BLN 012

BLN 015

BLN 020

BLN 025

BLN 030

Amp

Rating

(A)

1

1.5

2

3

4

5

6

8

10

12

15

20

25

30

250

10,000

amperes at

250 VAC.

Max

Voltage

Rating

(V)

Interrupting

Rating

Nominal

Cold

Resistance

(Ohms)

.395

.222

.125

.0645

.0432

.0413

.0284

.0166

.011

.00920

.00684

.0036

.00360

.00270

Agency Approvals

PS

E

x

Speciﬁcations are subject to change without notice.

Please refer to www.littelfuse.com/series/BLN.html for current information.

15

Revised: February 18, 2009
