System LED Drivers for Mobile phones
6LEDs
Illumination
BD2802GU
No.11041EAT12
●Description
The BD2802GU is a RGB LED driver specifically engineered for decoration purposes.This RGB driver incorporates lighting
patterns and illuminates without imposing any load on CPU.This RGB driver is best-suited for illumination using RGB LEDs
and decoration using monochrome LEDs.In addition, this RGB driver has been successfully miniaturized through the use of
a VCSP85H2 (2.8 mm 0.5 mm pitch) chip size package.
●Features
1) RGB LED driver (dual drivers)
- A slope control function is incorporated (allowing dual drivers to be controlled independently).
- Slope control can be implemented using the DC current.
- Two modes “continuous illumination mode” and “illumination single cycle mode” are supported.
- Independent external ON/OFF synchronizing terminals (of dual drivers) are provided.
2
- Multiple drivers can be used concurrently by using the I C address change function and supporting reference clock I/O.
2) Thermal shutdown
3) I
2
C BUS fast mode support (maximum rate: 400 kHz)
- A device address can be changed via an external pin.
*
*
*
This driver has not been designed for anti-radiation.
This document may be altered without prior notice.
This document does not provide for delivery.
●Absolute
Maximum Ratings(Ta=25℃)
Parameter
Maximum Applied voltage
Power Dissipation
Operating Temperature Range
Storage Temperature Range
Symbol
VMAX
Pd
Topr
Tstg
Limits
7
1250
(Note1)
-40
½
+85
-55
½
+150
Unit
V
mW
℃
℃
(Note1)Power dissipation deleting is 10.0mW/
o
C, when it’s used in over 25
o
C.
(It’s deleting is on the board that is ROHM’s standard)
●Recommended
Operating Conditions(VBAT≧VIO, Ta=-40½85℃)
Parameter
VBAT input voltage
VIO pin voltage
Symbol
VBAT
VIO
Limits
2.7
½
5.5
1.65
½
3.3
Unit
V
V
www.rohm.com
© 2011 ROHM Co., Ltd. All rights reserved.
1/27
2011.04 - Rev.A
BD2802GU
●Electrical
Characteristics(Unless otherwise specified, Ta=25℃, VBAT=3.6V, VIO=1.8V)
Limits
Parameter
Symbol
Unit
Min.
Typ.
Max.
【Circuit
Current】
VBAT Circuit current 1
VBAT Circuit current 2
VBAT Circuit current 3
【LED
Driver】
LED current Step
LED Maximum setup
curren
LED current accurate
ILEDSTP
IMAX
ILED
-
18
128
-
20
30.48
22
step
mA
mA
IBAT1
IBAT2
IBAT3
-
-
-
0.1
0.5
0.8
3.0
3.0
1.2
μA
μA
mA
Technical Note
Condition
RESETB=0V, VIO =0V
RESETB=0V, VIO=1.8V
LED 6Ch ON, ILED=10mA setting
Exclusive of LED current,
RGBISET =120kΩ
RGB1 group, RGB2 group
RGB1 group, RGB2 group
RGBISET=100kΩ
RGB1 group, RGB2 group,
Terminal voltage =1V
ILED=20mA setting, RGBISET
=120kΩ
RGB1 group, between RGB2 group,
Terminal voltage =1V
ILED=20mA setting
LED current Matching
LED OFF Leak current
【OSC】
OSC oscillation frequency
ILEDMT
ILKL
fosc
VILI
VIHI
VhysI
VOLI
linI
VILR
VIHR
IinR
VILADD
IinADD
VILCNT
VIHCNT
IinCNT
VOLCLK
VOHCLK
fclk
VILCLK
VIHCLK
IinCLK
-
-
0.8
-0.3
0.75×VIO
0.05×VIO
0
-10
-0.3
0.75×VIO
-10
-0.3
-10
-0.3
0.75×VIO
-
-
VIO-0.2
200
-0.3
0.75×VIO
-
5
-
1.0
-
-
-
-
-
-
-
-
-
-
-
-
-
3.6
-
-
250
-
-
3.6
10
1.0
1.2
0.25×VIO
VBAT+0.3
-
0.3
10
0.25×VIO
VBAT+0.3
10
0.25×VBAT
VBAT+0.3
10
0.25×VIO
VBAT+0.3
10
0.2
-
300
0.25×VIO
VIO+0.3
10
%
μA
MHz
V
V
V
V
μA
V
V
μA
V
V
μA
V
V
μA
V
V
kHz
V
V
μA
【SDA,
SCL】(I2C interface )
L level input voltage
H level input voltage
Hysteresis of Schmitt
trigger input
L level output voltage
Input current
【RESETB】(CMOS
input pin)
L level input voltage
H level input voltage
Input current
L level input voltage
H level input voltage
Input current
L level input voltage
H level input voltage
Input current
L level output voltage
H level output voltage
Output frequency
L level input voltage
H level input voltage
Input current
SDA pin, IOL=3 mA
Input voltage = 0.1×VIO½0.9×VIO
Input voltage = 0.1×VIO½0.9×VIO
【ADDSEL】(CMOS
input pin)
VIHADD 0.7 ×VBAT
Input voltage = 0.1×VBAT½0.9×VBAT
【RGB1CNT,
RGB2CNT】(CMOS input pin with Pull-down resistance)
Input voltage = 1.8V
IOL=1mA
IOH=1mA
【CLKIO(Output)】(CMOS
output pin)
【CLKIO
(Input)】(CMOS input pin)
Input voltage = 1.8V
www.rohm.com
© 2011 ROHM Co., Ltd. All rights reserved.
2/27
2011.04 - Rev.A
BD2802GU
●Block
Diagram / Application Circuit example
Technical Note
VBAT
VBAT2
VBAT1
1µF/10V
VREF
R1LED
VBAT
VIO
1µF/10V
RESETB
SCL
Slope
Control
(RGB1)
G1LED
RGB1
B1LED
R2LED
Level
SDA
I
2
C interface
Digital Control
I/O
Shift
Slope
Control
(RGB2)
G2LED
RGB2
B2LED
RGB1CNT
RGBGND
RGB2CNT
ADDSEL
CLKIO
CLKIO
RGBISET
IREF
TSD
GND1
Fig.3 Block Diagram / Application Circuit example
●Pin
Arrangement
[Bottom
View½
E
D
C
B
A
T4
G2LED
RGBGND
G1LED
GND2
T3
T1
T2
T4
T3
B2LED
R2LED
B1LED
R1LED
VBAT1
VBAT2
RGBISE
RGB1CNT
ADDSEL
index
GND2
GND1
CLKIO
SCL
SDA
T1
RGB2CNT
VIO
RESETB
T2
1
2
3
4
5
www.rohm.com
© 2011 ROHM Co., Ltd. All rights reserved.
3/27
2011.04 - Rev.A
BD2802GU
●Outside
size figure

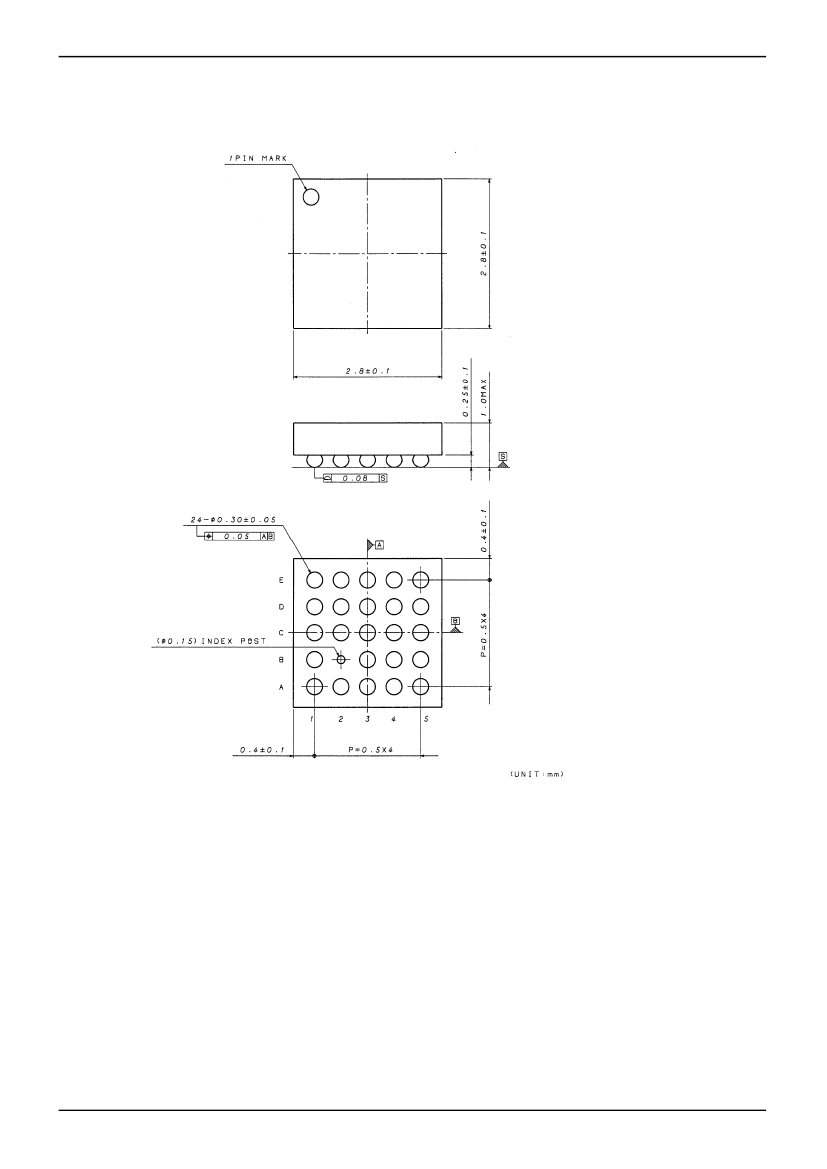

VCSP85H2 CSP small Package
Size : 2.8mm×2.8mm (Tolerance : ± 0.1mm each side) height 1.0mm max
Ball pitch : 0.5 mm
Technical Note
www.rohm.com
© 2011 ROHM Co., Ltd. All rights reserved.
4/27
2011.04 - Rev.A
BD2802GU
●Pin
Functions
No
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Pin No.
D5
C1
A1
A5
E5
E1
A3
A4
B5
B4
B1
C5
E3
C2
D4
E4
D3
D2
E2
D1
C3
A2
C4
B3
Pin Name
VBAT1
VBAT2
T1
T2
T3
T4
VIO
RESETB
SDA
SCL
GND1
GND2
RGBGND
RGBISET
R1LED
G1LED
B1LED
R2LED
G2LED
B2LED
RGB1CNT
RGB2CNT
ADDSEL
CLKIO
I/O
-
-
-
-
-
-
-
I
I/O
I
-
-
-
I
I
I
I
I
I
I
I
I
I
I/O
Input Level
For Power For GND
-
-
VBAT
VBAT
VBAT
VBAT
VBAT
VBAT
VBAT
VBAT
VBAT
VBAT
VBAT
VBAT
-
-
-
-
-
-
VBAT
VBAT
VBAT
VBAT
GND
GND
GND
GND
GND
-
GND
GND
GND
GND
-
-
-
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
ESD Diode
Battery is connected
Battery is connected
Test Pin (short to GND)
Test Pin (short to GND)
Test Pin (short to GND)
Test Pin (short to GND)
I/O voltage source is connected
Technical Note
Functions
A
A
S
S
S
B
C
H
I
H
B
B
B
O
E
E
E
E
E
E
J
J
R
V
Reset input (L: RESET, H: RESET cancel)
I
2
C data input
I
2
C clock input
Ground
Ground
Ground
RGB LED reference current
Red LED1 connected
Green LED1 connected
Blue LED1 connected
Red LED2 connected
Green LED2 connected
Blue LED2 connected
RGB1 LED external ON/OFF Synchronism
(L:OFF, H:ON)*
RGB2 LED external ON/OFF Synchronism
(L:OFF, H:ON)*
I
2
C device address change terminal
Standard clock input-and-output terminal
* A setup of a register is separately necessary to validate it.
