256-30695-1095: DescriptionRing Terminal, ROHS COMPLIANT; CategoryThe connector terminals; File Size38KB，2 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

256-30695-1095 Overview

Ring Terminal, ROHS COMPLIANT

256-30695-1095 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
terminal gender	FEMALE
Terminal and terminal strip types	RING TERMINAL
Wire gauge	6 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

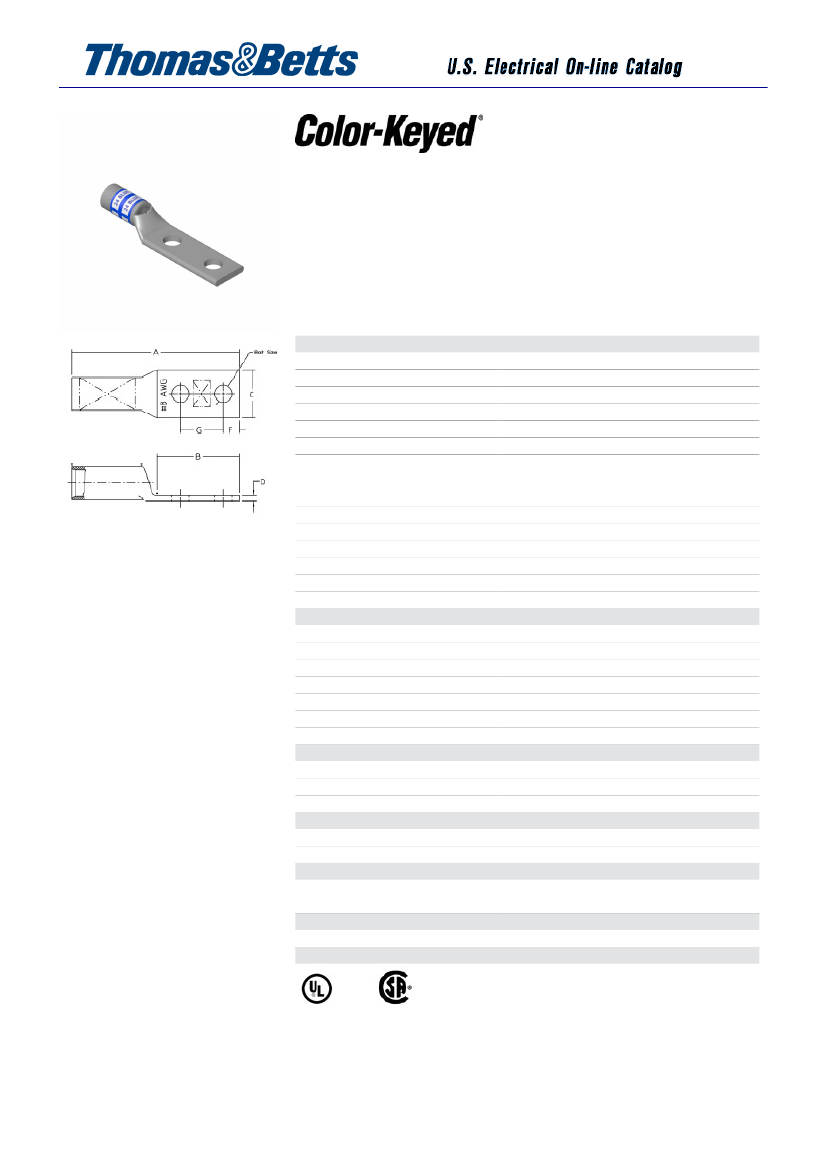

T&B Catalog Number:

UPC Number:

Description:

256-30695-1095

78621006230

Copper Two-Hole Lug - Straight Standard

Barrel - max 35KV, #6 AWG Wire, 1/4" Bolt

Size, 3/4" Hole Spacing, Tin Plated with In-

spection Hole, Blue 24

Active

Status:

General

-Material

-Finish

-Wire Size

-Number of Studs

-Stud Size

-Bolt Hole Spacing

-Tongue Angle

-Barrel Length

-Barrel Shape

-Tongue Width

-Peep Hole

-Marking

-Hole Shape

-Die Color

-Die Code

Copper

Tin Plated

#6 AWG

2

1/4

3/4

Straight

Standard

Y

Standard

Round

Blue

24

2.531

1.813

0.563

0.094

0.297

0.375

0.75

100

Each

1.8 lbs. per 100

Available on Website

Dimensions given for reference only. Dimensions

may vary up to +/- .030.

Yes

Dimension Information

-A (inches)

-B (inches)

-C (inches)

-D (inches)

-E (inches)

-F (inches)

-G (inches)

Packaging

-Package in Units

-T&B Sold in UOM

-T&B Weight Per UOM

Application Support

-Overview

-Connector & Tooling Chart

Notes

-

Certifications

-RoHS Compliance

Certifications

File Nbr:

E9809

256-30695-1095 Related Products

	256-30695-1095
Description	Ring Terminal, ROHS COMPLIANT
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
terminal gender	FEMALE
Terminal and terminal strip types	RING TERMINAL
Wire gauge	6 AWG
Base Number Matches	1
