84596-0000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 84596-0000

84596-0000: DescriptionCircular Connector, 3 Contact(s), Aluminum Alloy, Female, Plug; CategoryThe connector The connector; File Size20KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

84596-0000 Overview

Circular Connector, 3 Contact(s), Aluminum Alloy, Female, Plug

84596-0000 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Back shell type	SOLID
Body/casing type	PLUG
Connector type	CIRCULAR CONNECTOR
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	84596
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	NICKEL
Shell material	ALUMINUM
Total number of contacts	3

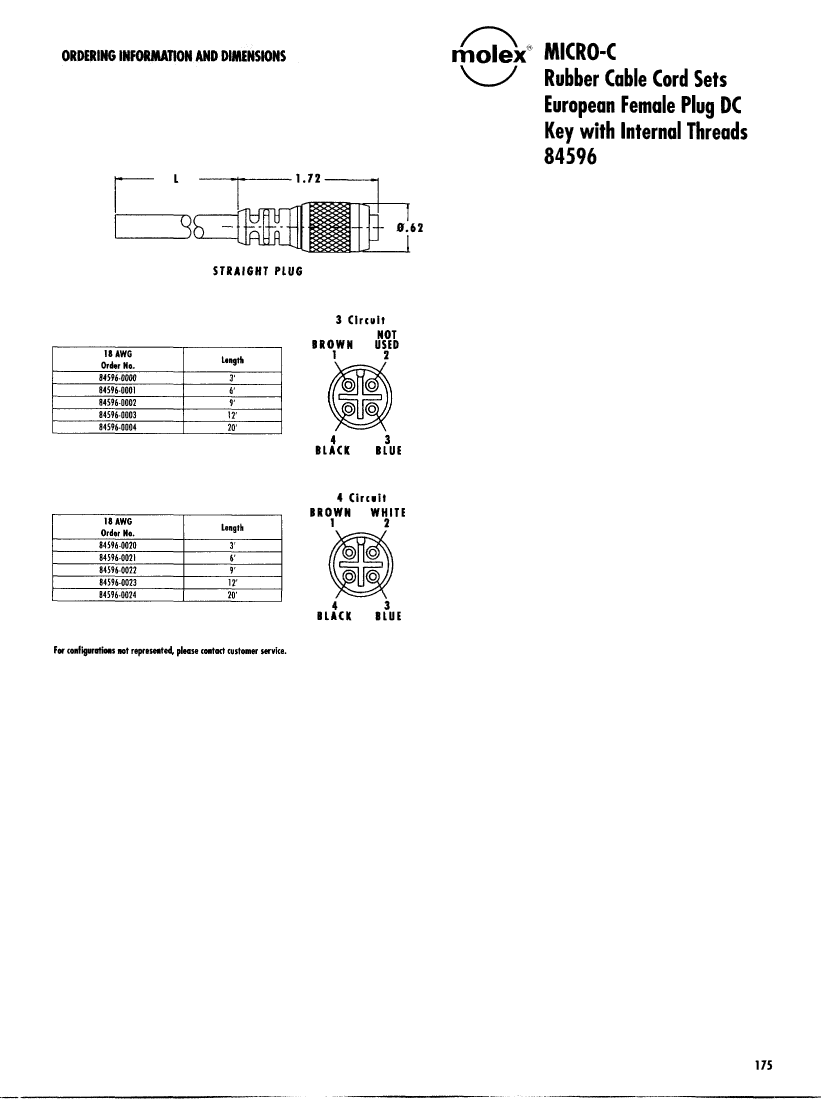

Preview

Download Datasheet

View All

84596-0000 Related Products

	84596-0000	84596-0002	84596-0003	84596-0022	84596-0024	84596-0001	84596-0004	84596-0020	84596-0021	84596-0023
Description	Circular Connector, 3 Contact(s), Aluminum Alloy, Female, Plug	Circular Connector, 3 Contact(s), Aluminum Alloy, Female, Plug	Circular Connector, 3 Contact(s), Aluminum Alloy, Female, Plug	Circular Connector, 4 Contact(s), Aluminum Alloy, Female, Plug	Circular Connector, 4 Contact(s), Aluminum Alloy, Female, Plug	Circular Connector, 3 Contact(s), Aluminum Alloy, Female, Plug	Circular Connector, 3 Contact(s), Aluminum Alloy, Female, Plug	Circular Connector, 4 Contact(s), Aluminum Alloy, Female, Plug	Circular Connector, 4 Contact(s), Aluminum Alloy, Female, Plug	Circular Connector, 4 Contact(s), Aluminum Alloy, Female, Plug
Maker	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Back shell type	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Coupling type	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	84596	84596	84596	84596	84596	84596	84596	84596	84596	84596
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL
Shell material	ALUMINUM	ALUMINUM	ALUMINUM	ALUMINUM	ALUMINUM	ALUMINUM	ALUMINUM	ALUMINUM	ALUMINUM	ALUMINUM
Total number of contacts	3	3	3	4	4	3	3	4	4	4
