Datasheet
EARTH LEAKAGE CURRENT DETECTOR
EARTH LEAKAGE
CURRENT DETECTOR IC
BD54123F
●General
Description
BD54123F integrates leakage detector and amplifier.
Especially, it is suitable for high sensitivity and a high-
speed operation use, and since the operating temperature
range is wide, it can be used for various uses.
●Key
Specifications
■
Operating supply voltage range：
12V to 22V
■
Operating temperature range：
－40°C
to
＋85°C
■
Supply current：
330μA(typ.)
■
Trip voltage：
4.92mV to 11.06mV
■
Output current ability(Ta=－40℃)：
－200μA½(min.)
W(Typ.) x D(Typ.) x H(Max.)
5.00mm x 6.20mm x 1.71mm
●Features
■
Small temperature fluctuation and high input
sensitivity
■
Wide operating temperature range
●Applications
■
Earth leakage circuit breaker
■
Earth leakage circuit relay
●Packages
SOP8

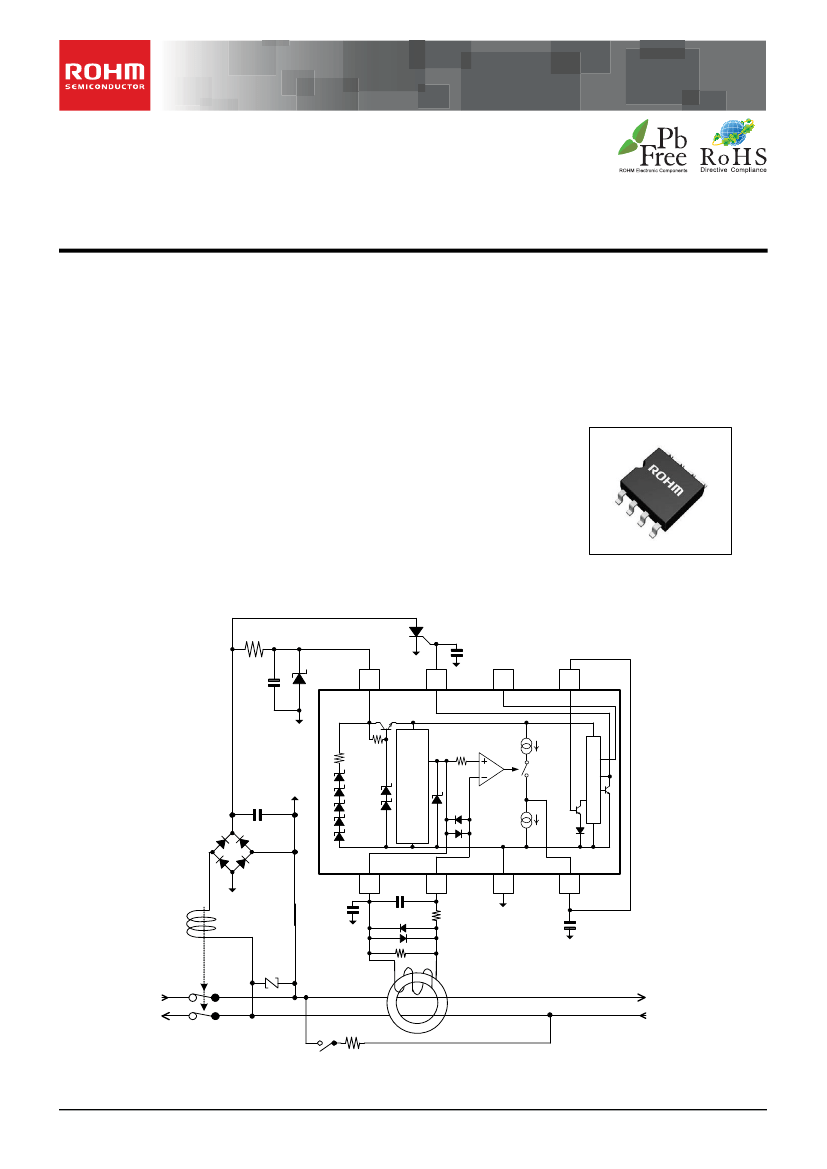

●Typical
Application Circuit Example
R
VS
VZ
SCR
C
OS
C
VS
8
VS
7
OS
6
NR
5
SC
Reference voltage
output block
C1
VR
Trip
Coil
IN
GND
OD
1
C
VR
C
IN
2
R
IN
3
4
C
OD
ZCT:Zero current transformer
TEST SW&R
○Product
structure：Silicon monolithic integrated circuit
www.rohm.co.jp
© 2012 ROHM Co., Ltd. All rights reserved.
TSZ22111・14・001
○This
product is not designed protection against radioactive rays.
1/11
TSZ02201-0RCR1GZ00060-1-2
2012.10.29 Rev.002
Latch block
BD54123F
●Pin
Configurations
SOP8
(TOP VIEW)
8
7
6
5
Reference voltage
output block
Datasheet
●Block
Diagrams
8
VS
7
OS
6
NR
5
SC
1
2
3
4
VR
IN
GND
OD
1
●Pin
Descriptions
Pin No.
1
2
3
4
5
6
7
8
Symbol
VR
IN
GND
OD
SC
NR
OS
VS
Function
Reference voltage
Input
Ground
Output of input comparator
Input of latch circuit
Noise absorption
Output
Power supply
2
3
4
●Absolute
Maximum Ratings
(Ta=25℃)
Parameter
Supply current
IN-VR current
VR pin current
IN terminal current
SC terminal current
Power Supply voltage
Input terminal voltage
OD/SC/NR/OS terminal voltage
Power dissipation
Storage temperature
*1
*2
*1
Symbol
IS
I
IN-VR
I
VR
I
IN
I
SC
VS
V
VR/IN
V
OD/SC/NR/OS
Pd
T
stg
Rating
8
±250
30
30
5
36
17
8
680
*2
－55
to
＋150
Unit
mA
mA
mA
mA
mA
V
V
V
mW
℃
The power-supply voltage is limited by the internal clamping circuit.
To use at temperature above Ta＝25[℃] reduce 5.5mW/℃. Mounted on a glass epoxy PCB (70mm×70mm×1.6mm)
www.rohm.co.jp
© 2012 ROHM Co., Ltd. All rights reserved.
TSZ22111・15・001
2/11
TSZ02201-0RCR1GZ00060-1-2
2012.10.29 Rev.002
Latch block
BD54123F
●Recommended
Operating Ratings
Parameter
Supply voltage
Operating temperature
External capacitor
between VS and GND
External capacitor
between OS and GND
Symbol
VS
T
opr
C
VS
C
OS
Limits
12 to 22
－40
to
＋85
1≦
≦1
Unit
V
℃
μF
μF
Datasheet
●Electrical
Characteristics
(Unless
otherwise specified, VS=12V, GND=0V, Ta=25℃)
Parameter
Symbol
Temperature
range
-40℃
Supply current
IS1
25℃
85℃
Trip voltage
OD Source current
OD Sink current
V
T
I
ODSO
I
ODSI
-40℃ to +85℃
25℃
25℃
-40℃
OS Source current
I
OSSO
25℃
85℃
OS Sink current
SC ON voltage
Input clamp voltage
Differential input clamp
voltage
Maximum current voltage
Supply current 2
＊
1
Limits
Min.
-
-
-
4.92
-27.2
16.7
-200
-100
-75
200
1.00
4.2
0.6
26
-100
0.5
1.8
Typ.
-
330
-
7.50
-20.6
26.0
-
-
-
-
1.24
5.5
1.0
29
-
-
2.9
Max.
520
500
460
11.06
-14.0
35.3
-
-
-
-
1.48
6.7
1.4
32
-
-
4.0
Unit
Conditions
μA
ΔVIN=V
VR
-V
IN
=30mV
mV
μA
μA
V
T
=ΔVIN=V
VR
-V
IN
ΔVIN=V
VR
-V
IN
=30mV,
V
OD
=1.2V
V
OD
=0.8V,
ΔVIN=V
VR
-V
IN
=0mV
μA
V
SC
=2.0V, V
OS
=0.8V
I
OSSI
V
SCON
V
IC
V
IDC
V
SM
I
OS2
V
SOFF
t
ON
-40℃ to +85℃
25℃
-40℃ to +85℃
-40℃ to +85℃
25℃
-40℃ to +85℃
25℃
25℃
μA
V
V
V
V
μA
V
ms
V
SC
=0.2V, V
OS
=0.2V
I
IC
=20mA
I
IDC
=100mA
IS=7mA
IS=900μA,V
SC
=2.0V
V
OS
=0.8V
Latch OFF Supply Voltage
Operating time
＊
2
*1 Supply current 2 is OS source current value when the power supply current(Is=900μA) is given.
*2 Operating time is time until output voltage reaches 0.8V after detecting the leakage signal.
Conditions : Capacitor(0.047μF) is connected between OD(OS) and GND.
www.rohm.co.jp
© 2012 ROHM Co., Ltd. All rights reserved.
TSZ22111・15・001
3/11
TSZ02201-0RCR1GZ00060-1-2
2012.10.29 Rev.002
BD54123F

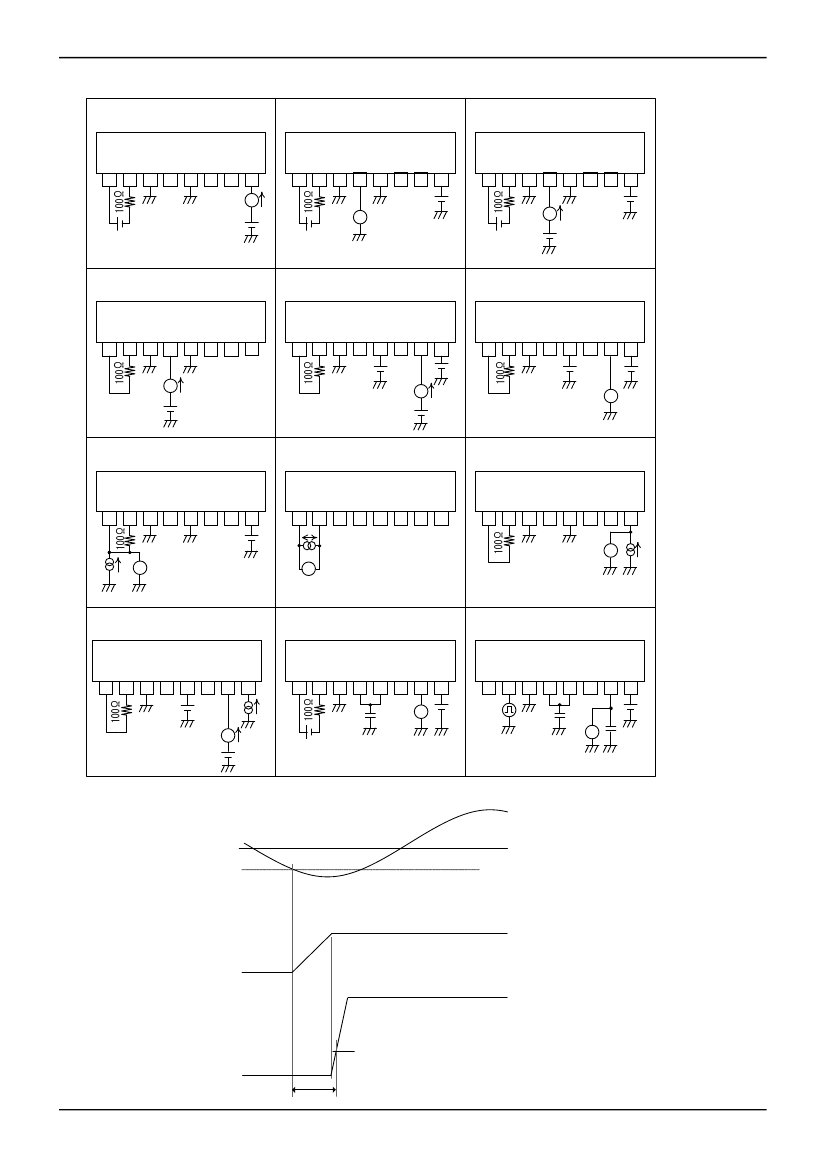

●Test
