Datasheet
Automotive 0.5A Variable Output
LDO Regulator
BDxxGA5MEFJ-M
●General
Description
BDxxGA5MEFJ-M is a LDO regulator with output current 0.5A. The output accuracy is ±1% of output voltage. With external
resistance, it is available to set the output voltage at random (from 1.5V to 13.0V).It has package type: HTSOP-J8. Over
current protection (for protecting the IC destruction by output short circuit), circuit current ON/OFF switch (for setting the
circuit 0μA at shutdown mode), and thermal shutdown circuit (for protecting IC from heat destruction by over load condition)
are all built in. It is usable for ceramic capacitor and enables to improve smaller set and long-life.
●Features
High accuracy reference voltage circuit
Built-in Over Current Protection circuit (OCP)
Built-in Thermal Shut Down circuit (TSD)
With shut down switch
AEC-Q100 Qualified
●Package
HTSOP-J8
(Typ.)
(Typ.)
(Max.)
4.90mm x 6.00mm x 1.00mm
●Key
Specifications
Input power supply voltage range:
4.5V to 14.0V
Output voltage range(Variable type):
1.5V to 13.0V
Output voltage(Fixed type): 1.5V/1.8V/2.5V/3.0V/3.3V
5.0V/6.0V/7.0V/8.0V/9.0V/10V/12V
Output current:
0.5A (Max.)
Shutdown current:
0μA(Typ.)
Operating temperature range:
-40℃ to +105℃
HTSOP-J8
●Typical
Application Circuit
V
CC
C
IN
EN
GND
FIN
V
O
R
1
FB
R
2
C
OUT
C
IN
V
CC
V
O
V
O_S
C
OUT
EN
GND
FIN
C
IN
,C
OUT
: Ceramic Capacitor
C
IN
,C
OUT
: Ceramic Capacitor
○Product
structure：Silicon monolithic integrated circuit
www.rohm.com
© 2012 ROHM Co., Ltd. All rights reserved.
TSZ22111½14½001
○This
product is not designed protection against radioactive rays.
1/21
TSZ02201-0R6R0AN00230-1-2
2012.8.31 Rev.001
BDxxGA5MEFJ-M
●Ordering
Information
Datasheet
B
D
x
x
G
A
5
M
E
F
J
-
M
E
2
Part
Output
Number voltage
00:Variable
15:1.5V
18:1.8V
25:2.5V
30:3.0V
33:3.3V
50:5.0V
60:6.0V
70:7.0V
80:8.0V
90:9.0V
J0:10.0V
J2:12.0V
Voltage
Output
resistance current
G:15V
A5:0.5A
Automotive Package
“M”：M series
EFJ:HTSOP-J8
Packaging and forming specification
E2:Emboss tape reel
www.rohm.com
© 2012 ROHM Co., Ltd. All rights reserved.
TSZ22111½15½001
2/21
TSZ02201-0R6R0AN00230-1-2
2012.8.31 Rev.001
BDxxGA5MEFJ-M
●Block
Diagram
BD00GA5MEFJ-M
GND
3
OCP
SOFT
START
Datasheet
8
VCC
(VO+0.90) to 14.0V
Ceramic
≧
1.0μF
Capacitor
Vo
1
R
1
EN
5
TSD
1.5V to 13.0V
Ceramic
Capacitor
≧
1.0μF
2
FB
R
2
Fig.1 Block Diagram
BDxxGA5MEFJ-M (Fixed type)
V
CC
8
OCP
SOFT
START
4.5½14.0V
Ceramic
≧
1.0μF
Capacitor
EN
5
GND
3
FIN
Fig.2 Block Diagram (Fixed type)
●Pin
Configuration
TOP VIEW
V
O
FB/Vo_s
GND
N.C.
TSD
V
O
1
2
V
O_S
Ceramic
≧
1.0μF
Capacitor
V
CC
N.C.
N.C.
EN
●Pin
Description
Pin No.
Pin name
1
V
O
2
FB/Vo_s
3
GND
4
N.C.
5
EN
6
N.C.
7
N.C.
8
V
CC
Reverse
FIN
Pin Function
Output pin
Feedback pin
GND pin
Non Connection (Used to connect GND or OPEN state.)
Enable pin
Non Connection (Used to connect GND or OPEN state.)
Non Connection (Used to connect GND or OPEN state.)
Input pin
Substrate(Connect to GND)
www.rohm.com
© 2012 ROHM Co., Ltd. All rights reserved.
TSZ22111½15½001
3/21
TSZ02201-0R6R0AN00230-1-2
2012.8.31 Rev.001
BDxxGA5MEFJ-M
●Absolute
Maximum Ratings
(Ta=25℃)
Parameter
Power supply voltage
EN voltage
Power dissipation
HTSOP-J8
Operating Temperature Range
Storage Temperature Range
Junction Temperature
Symbol
V
CC
V
EN
Pd
*2
Topr
Tstg
Tjmax
Limits
15.0 *
1
15.0
2110
*2
-40 to +105
-55 to +150
+150
Unit
V
V
mW
℃
℃
℃
Datasheet
*1 Not to exceed Pd
*2 Reduced by 16.9mW/℃ for each increase in Ta of 1℃ over 25℃. (when mounted on a board 70mm×70mm×1.6mm glass-epoxy board, two layer)
●Recommended
Operating Ratings
(Ta=25℃)
Parameter
Input power supply voltage
EN voltage
Output voltage setting range
Output current
Symbol
V
CC
V
EN
V
O
I
O
Min.
4.5
0.0
1.5
0.0
Max.
14.0
14.0
13.0
0.5
Unit
V
V
V
A
●Electrical
Characteristics
(Unless otherwise noted, EN=3V, Vcc=6V, R
1
=43kΩ, R
2
=8.2kΩ)
Parameter
Circuit current at shutdown
mode
Bias current
Line regulation
Load regulation
Minimum dropout Voltage
Output reference voltage
(Variable type)
Output voltage(Fixed type)
EN Low voltage
EN High voltage
EN Bias current
Symbol
I
SD
I
CC
Reg.I
Reg I
O
V
CO
V
FB
V
O
V
EN
(Low)
V
EN
(High)
I
EN
Temp
25℃
-40~105℃
25℃
-40~105℃
25℃
-40~105℃
25℃
-40~105℃
25℃
-40~105℃
25℃
-40~105℃
25℃
-40~105℃
25℃
-40~105℃
25℃
-40~105℃
25℃
-40~105℃
Min.
-
-
-
-
-
-
-
-
-
-
0.792
0.776
V
O
×0.99
VO×0.97
0
0
2.4
2.4
1
-
Typ.
0
-
600
-
25
-
25
-
0.6
-
0.800
-
V
O
VO
-
-
-
-
3
-
Max.
5
5
900
1200
50
50
75
75
0.9
1.2
0.808
0.824
V
O
×1.01
VO×1.03
0.8
0.8
14.0
14.0
9
9
Unit
μA
μA
mV V
CC
=( Vo+0.9V )→14.0V
mV I
O
=0→0.5A
V
V
V
V
V
µA
V
CC
=5V, I
O
=0.5A
I
O
=0mA
I
O
=0mA
Conditions
V
EN
=0V, OFF mode
www.rohm.com
© 2012 ROHM Co., Ltd. All rights reserved.
TSZ22111½15½001
4/21
TSZ02201-0R6R0AN00230-1-2
2012.8.31 Rev.001
BDxxGA5MEFJ-M

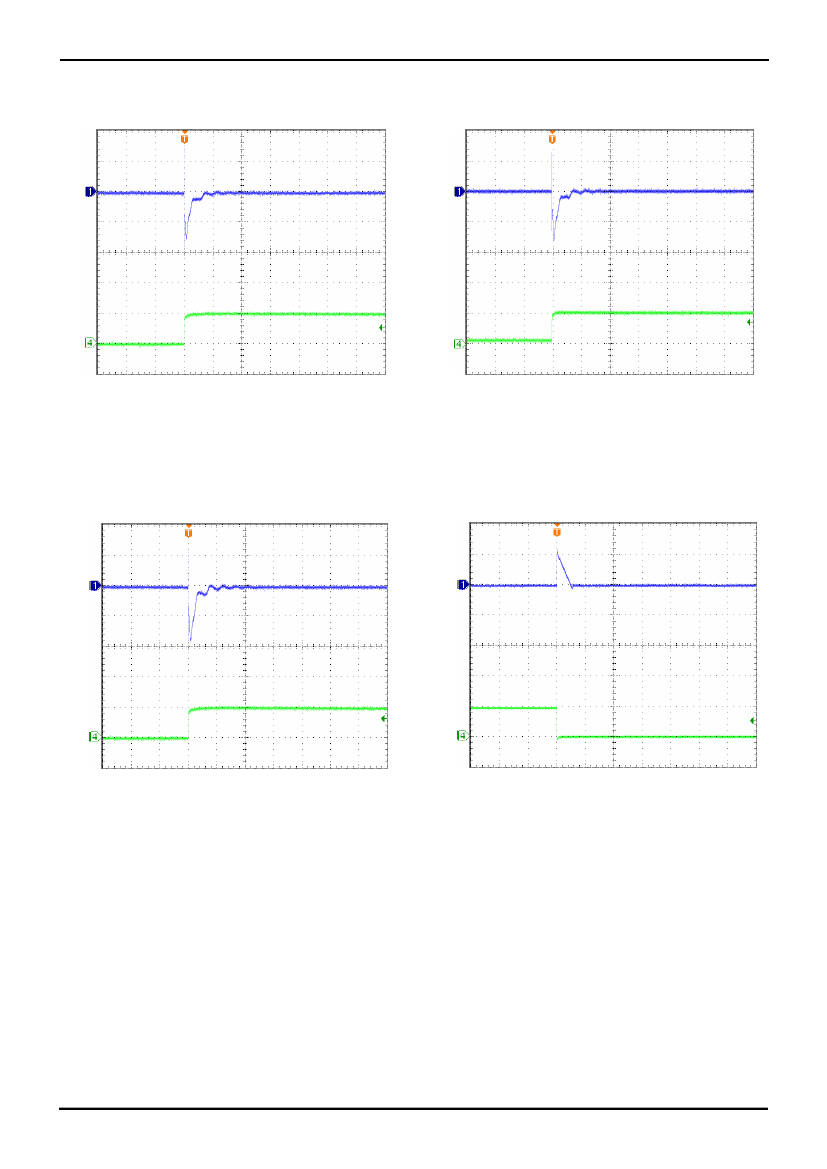

●Typical
Performance Curves
(Unless otherwise noted, EN=3V, V
CC
=6V, R
1
=43kΩ, R
2
=8.2kΩ)
Datasheet
V
O
50mV/div
V
O
50mV/div
I
O
I
O
0.5A/div
I
O
0.5A/div
I
O
Fig.4
10usec/div
10usec/div
Fig.4
10usec/div
10usec/div
Fig.3
Transient Response
(0→0.5A)
Co=1µF, Ta=-40°C
Fig.4
Transient Response
(0→0.5A)
Co=1µF, Ta=25°C
V
O
50mV/div
V
O
50mV/div
I
O
0.5A/div
Fig.4
10usec/div
10usec/div
I
O
0.5A/div
Fig.4
10usec/div
2msec/div
Fig.5
Transient Response
(0→0.5A)
Co=1µF, Ta=105°C
Fig.6
Transient Response
(0.5→0A)
Co=1µF, Ta=-40°C
www.rohm.com
© 2012 ROHM Co., Ltd. All rights reserved.
TSZ22111½15½001
5/21
TSZ02201-0R6R0AN00230-1-2
2012.8.31 Rev.001
