FP7203 Overview

5 MHz - 250 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, FP-4

FP7203 Parametric

Parameter Name	Attribute value
Maker	Spectrum Microwave
package instruction	FL4(UNSPEC)
Reach Compliance Code	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	30 dB
Maximum input power (CW)	13 dBm
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	4
Maximum operating frequency	250 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	FL4(UNSPEC)
power supply	15 V
RF/Microwave Device Types	WIDE BAND LOW POWER
surface mount	YES
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

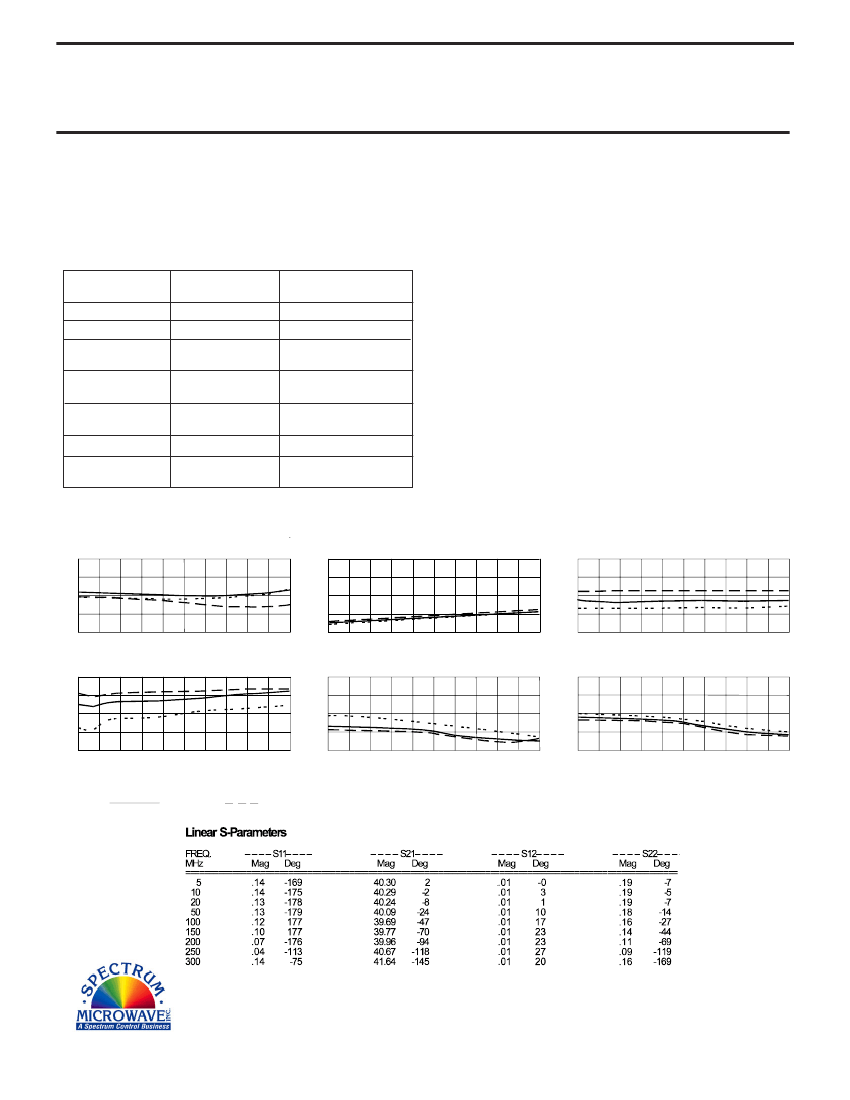

RF AMPLIFIER

MODEL

TM7203

Features

Low Noise Figure: 3 dB Typical

High Gain: 32 dB Typical

Operating Temp. - 55 ºC

to +85

ºC

Environmental Screening Available

Available as:

TM7203, 4 Pin TO-8 (T4)

TN7203, 4 Pin Surface Mount (SM3)

FP7203, 4 Pin Flatpack (FP4)

BX7203,Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point....... +36 dBm (Typ.)

Second Order Two Tone Intercept Point........ +30 dBm (Typ.)

Third Order Two Tone Intercept Point............ +18 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

TYPICAL

Ta= 25 ºC

5-250 MHz

-40

<1.75:1

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

5-250 MHz

30.0 Min.

+6.5 Min.

-37 Max.

2.0:1 Max.

4.0 Max.

+15 Min.

38 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 13 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Noise Figure (dB)

Power

Vdc

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Gain (dB)

- 10

- 20

- 30

- 40

- 50

Reverse Isolation (dB)

Start 5 MHz

Stop 250 MHz

Noise Figure (dB)

Start 5 MHz

Stop 250 MHz

Start 5 MHz

Stop 250 MHz

+10

+ 9

+ 8

+ 7

+ 6

Start 5 MHz

1 dB Comp. (dBm)

2.0

1.5

1.0

Input VSWR

2.0

1.5

1.0

Output VSWR

Stop 250 MHz

Start 5 MHz

Stop 250 MHz

Start 5 MHz

Stop 250 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

6/29/04

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP7203 Related Products

	FP7203	TN7203	TM7203
Description	5 MHz - 250 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, FP-4	5 MHz - 250 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM3, 4 PIN	5 MHz - 250 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, T4, TO-8, 4 PIN
package instruction	FL4(UNSPEC)	QFL4,.4SQ	CAN4,.3
Reach Compliance Code	unknown	unknown	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COMPONENT	COMPONENT
Gain	30 dB	30 dB	30 dB
Maximum input power (CW)	13 dBm	13 dBm	13 dBm
Number of functions	1	1	1
Number of terminals	4	4	4
Maximum operating frequency	250 MHz	250 MHz	250 MHz
Minimum operating frequency	5 MHz	5 MHz	5 MHz
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	METAL
Encapsulate equivalent code	FL4(UNSPEC)	QFL4,.4SQ	CAN4,.3
power supply	15 V	15 V	15 V
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2
Characteristic impedance	50 Ω	-	50 Ω
Installation features	SURFACE MOUNT	SURFACE MOUNT	-
surface mount	YES	YES	-
Base Number Matches	-	1	1
