F54A-30 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> F54A-30

F54A-30: Description0MHz - 42000MHz RF/MICROWAVE FIXED ATTENUATOR; CategoryWireless rf/communication Radio frequency and microwave; File Size130KB，1 Pages; ManufacturerCobham Semiconductor Solutions

Download Datasheet Parametric View All

F54A-30 Overview

0MHz - 42000MHz RF/MICROWAVE FIXED ATTENUATOR

F54A-30 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Cobham Semiconductor Solutions
Reach Compliance Code	unknown
Other features	SMA-F, I/P POWER-MAX(PEAK)=200W
Nominal attenuation	30 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
JESD-609 code	e4
Maximum operating frequency	42000 MHz
Minimum operating frequency
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Terminal surface	Gold (Au)
Maximum voltage standing wave ratio	1.45

Preview

Download Datasheet

View All

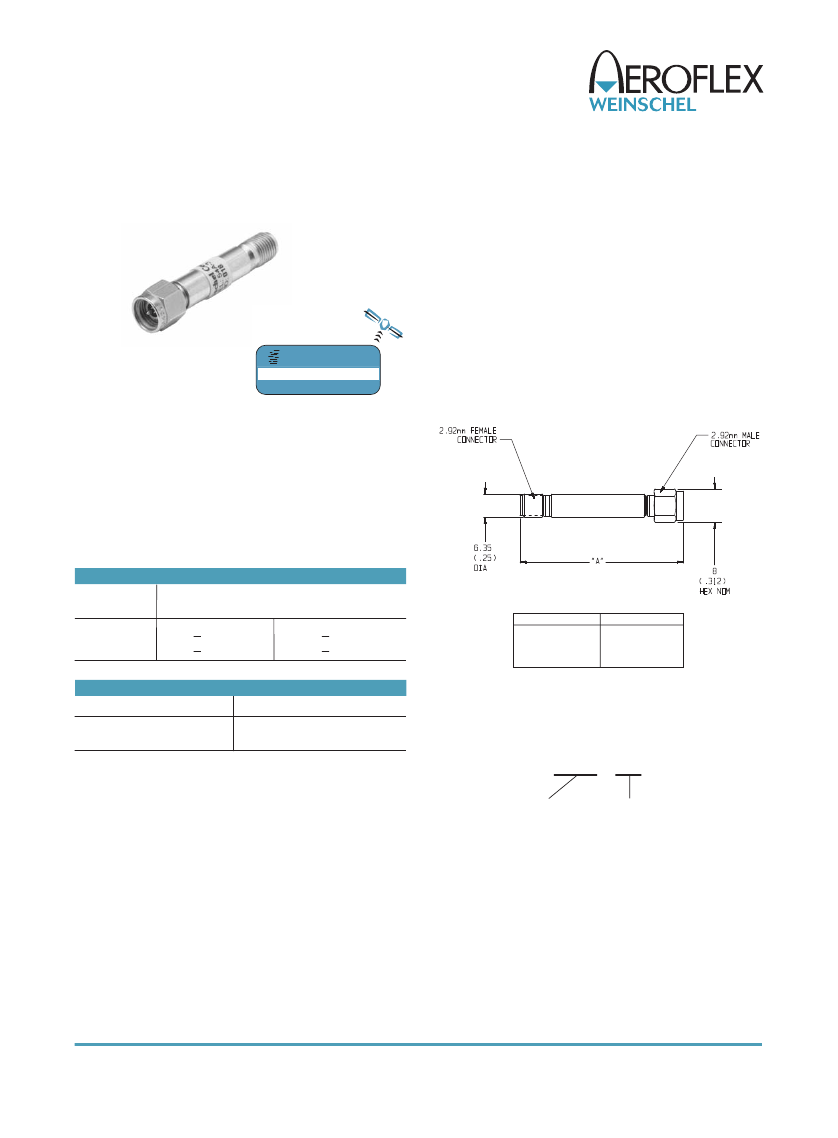

Fixed Coaxial Attenuators

Model 54A

SMK Connectors

dc to 40.0 GHz

2 Watts

RoHS

CONNECTORS:

SMK (2.92mm) connectors - mate nonde-

structively with SMA, 3.5mm and SMK (2.92mm)

connectors.

www.argosysales.com

800-542-4457

EXPRESS

CONSTRUCTION:

Stainless steel body and connectors;

gold plated beryllium copper contacts.

WEIGHT:

13 g (0.46 oz.) maximum

PHYSICAL DIMENSIONS:

Features

Useable to 42 GHz.

Designed to meet environmental requirements of

MIL-DTL-3933.

Specifications

NOMINAL IMPEDANCE:

FREQUENCY RANGE:

dc to 40.0 GHz

MAXIMUM DEVIATION OVER FREQUENCY:

Nominal

ATTN (dB)

3, 6

10, 20, 30

MAXIMUM SWR:

Deviation (dB)

dc-26.5

+ 0.50

+ 0.80

26.5-40

+ 1.00

+ 1.50

Model

54A

F54A

M54A

DIM A

39.9 (1.57)

37.9 (1.49)

42.0 (1.64)

NOTE:

Frequency (GHz)

dc - 26.5

26.5 - 40

SWR

1.25

1.45

Example:

All dimensions are given in mm (inches) and are

maximum, unless otherwise specified.

MODEL NUMBER DESCRIPTION:

POWER RATING:

2 watts

average

to 25 °C ambient tem-

perature, derated linearly to 0.1 watt at 125 °C. 200 watts

peak

μsec

pulse width; 0.5 % duty cycle).

POWER COEFFICIENT:

< 0.005 dB/dB/watts

TEMPERATURE COEFFICIENT:

< 0.0004 dB/dB/°C

TEMPERATURE RANGE:

-55 °C to +125 °C

TEST DATA:

Swept data plots of attenuation and SWR

from 50 MHz to 40 GHz is available at additional cost.

*54A - XX

Basic

Model

Number

Attenuation

Value (dB)

* Add Prefix M for double male and F for double female connectors.

5305 Spectrum Drive, Frederick, MD 21703-7362

TEL: 301-846-9222, 800-638-2048

Fax: 301-846-9116

web: www.aeroflex.com/weinschel

email: weinschel-sales@aeroflex.com

Revision Date: 8/16/2013
