BFR183T/BFR183TW
Vishay Telefunken
Silicon NPN Planar RF Transistor
Electrostatic sensitive device.
Observe precautions for handling.
Applications
For low noise and high gain broadband amplifiers at
collector currents from 2 mA to 30 mA.
Features
D
Low noise figure
D
High power gain
1
1
13 581
94 9280
13 652
13 570
2
3
2
3
BFR183T Marking: RH

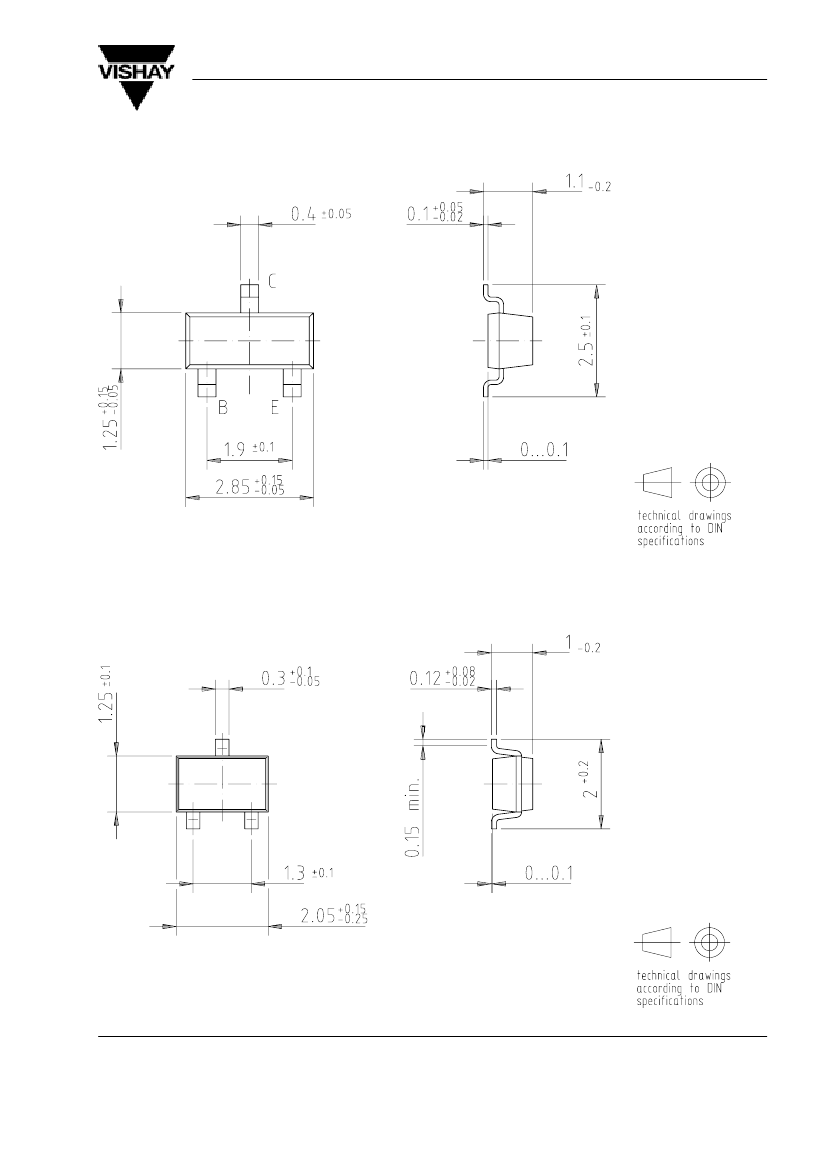

Plastic case (SOT 23)
1 = Collector, 2 = Base, 3 = Emitter
BFR183TW Marking: WRH
Plastic case (SOT 323)
1 = Collector, 2 = Base, 3 = Emitter
Absolute Maximum Ratings
T
amb
= 25
_
C, unless otherwise specified
Parameter
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Base current
Total power dissipation
Junction temperature
Storage temperature range
Test Conditions
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
B
P
tot
T
j
T
stg
Value
15
10
2
65
5
200
150
–65 to +150
Unit
V
V
V
mA
mA
mW
°
C
°
C
T
amb
≤
60
°
C
Maximum Thermal Resistance
T
amb
= 25
_
C, unless otherwise specified
Parameter
Test Conditions
Junction ambient on glass fibre printed board (25 x 20 x 1.5) mm
3
plated with 35
m
m Cu
Symbol
R
thJA
Value
450
Unit
K/W
Document Number 86026
Rev. 2, 20-Jan-99
www.vishay.de
•
FaxBack +1-408-970-5600
1 (4)
BFR183T/BFR183TW
Vishay Telefunken
Electrical DC Characteristics
T
amb
= 25
_
C, unless otherwise specified
Parameter
Collector cut-off current
Collector-base cut-off current
Emitter-base cut-off current
Collector-emitter breakdown voltage
Collector-emitter saturation voltage
DC forward current transfer ratio
Test Conditions
V
CE
= 15 V, V
BE
= 0
V
CB
= 10 V, I
E
= 0
V
EB
= 1 V, I
C
= 0
I
C
= 1 mA, I
B
= 0
I
C
= 30 mA, I
B
= 3 mA
V
CE
= 6 V, I
C
= 5 mA
V
CE
= 8 V, I
C
= 20 mA
Symbol Min
I
CES
I
CBO
I
EBO
V
(BR)CEO
10
V
CEsat
h
FE
50
h
FE
50
Typ
Max Unit
100
m
A
100 nA
1
m
A
V
0.4
V
150
0.1
90
110
Electrical AC Characteristics
T
amb
= 25
_
C, unless otherwise specified
Parameter
Transition frequency
q
y
Test Conditions
V
CE
= 8 V, I
C
= 15 mA, f = 500 MHz
V
CE
= 8 V, I
C
= 30 mA, f = 500 MHz
Collector-base capacitance
V
CB
= 10 V, f = 1 MHz
Collector-emitter capacitance V
CE
= 8 V, f = 1 MHz
Emitter-base capacitance
V
EB
= 0.5 V, f = 1 MHz
Noise figure
V
CE
= 6 V, I
C
= 5 mA, Z
S
= 75
W
,
f = 10 MHz
V
CE
= 6 V, I
C
= 5 mA, Z
S
= Z
Sopt
,
f = 900 MHz
V
CE
= 6 V, I
C
= 5 mA, Z
S
= Z
Sopt
,
f = 1.75 GHz
Power gain
V
CE
= 8 V, I
C
= 30 mA, Z
S
= 50
W
,
Z
L
= Z
Lopt
, f = 900 MHz
V
CE
= 8 V, I
C
= 30 mA, Z
S
= 50
W
,
Z
L
= Z
Lopt
, f = 1.75 GHz
Transducer gain
V
CE
= 8 V, I
C
= 30 mA, f = 900 MHz,
Z
0
= 50
W
Symbol
f
T
f
T
C
cb
C
ce
C
eb
F
F
F
G
pe
G
pe
S
21e
2
Min
Typ
7.2
7.4
0.4
0.2
0.8
0.9
1.2
1.8
14.0
10.5
14
Max
Unit
GHz
GHz
pF
pF
pF
dB
dB
dB
dB
dB
dB
www.vishay.de
•
FaxBack +1-408-970-5600
2 (4)
Document Number 85026
Rev. 2, 20-Jan-99
BFR183T/BFR183TW
Vishay Telefunken
