BZX384B3-V-GS08 datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> diode> BZX384B3-V-GS08

BZX384B3-V-GS08: DescriptionDIODE 3 V, 0.2 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, LEAD FREE, PLASTIC PACKAGE-2, Voltage Regulator Diode; CategoryDiscrete semiconductor diode; File Size252KB，9 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric Compare View All

BZX384B3-V-GS08 Overview

DIODE 3 V, 0.2 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, LEAD FREE, PLASTIC PACKAGE-2, Voltage Regulator Diode

BZX384B3-V-GS08 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Vishay
package instruction	R-PDSO-G2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JESD-30 code	R-PDSO-G2
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.2 W
Certification status	Not Qualified
Nominal reference voltage	3 V
surface mount	YES
technology	ZENER
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	40
Maximum voltage tolerance	2%
Working test current	2 mA

Preview

Download Datasheet

View All

BZX384-V-Series

Vishay Semiconductors

Small Signal Zener Diodes

Features

• Silicon Planar Power Zener Diodes

• The Zener voltages are graded according

to the international E 24 standard.

• Standard Zener voltage tolerance is ± 5 %.

Replace "C" with "B" for ± 2 % tolerance.

Mechanical Data

Case:

SOD-323 Plastic case

Weight:

approx. 5.0 mg

Packaging Codes/Options:

GS18 / 10 k per 13 " reel (8 mm tape), 10 k/box

GS08 / 3 k per 7 " reel (8 mm tape), 15 k/box

17431

Absolute Maximum Ratings

amb

= 25 °C, unless otherwise specified

Parameter

Power dissipation

Test condition

Symbol

tot

Value

200

Unit

Device on fiberglass substrate

Thermal Characteristics

amb

= 25 °C, unless otherwise specified

Parameter

Thermal resistance junction to

ambient air

Junction temperature

Storage temperature range

Test condition

Symbol

thJA

Value

650

150

- 65 to + 150

Unit

°C/W

°C

Valid that electrodes are kept at ambient temperature

Document Number 85764

Rev. 1.5, 10-Mar-05

www.vishay.com

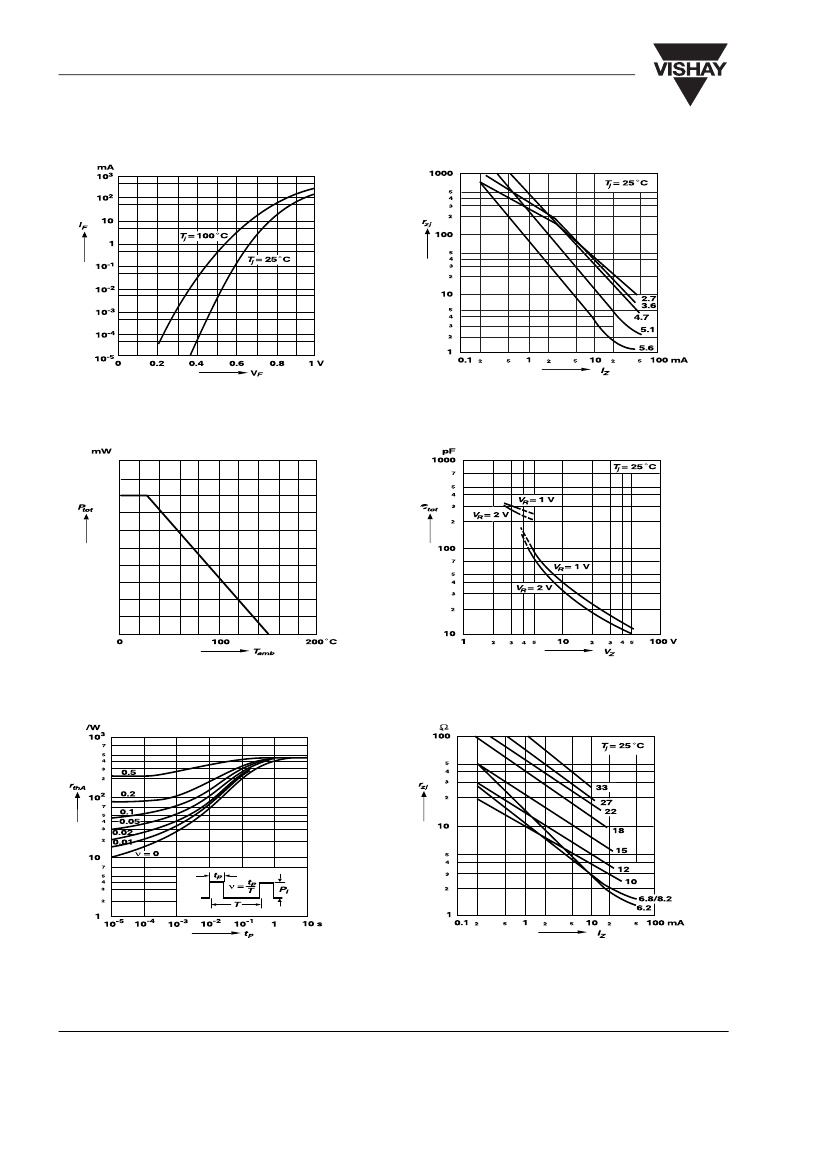

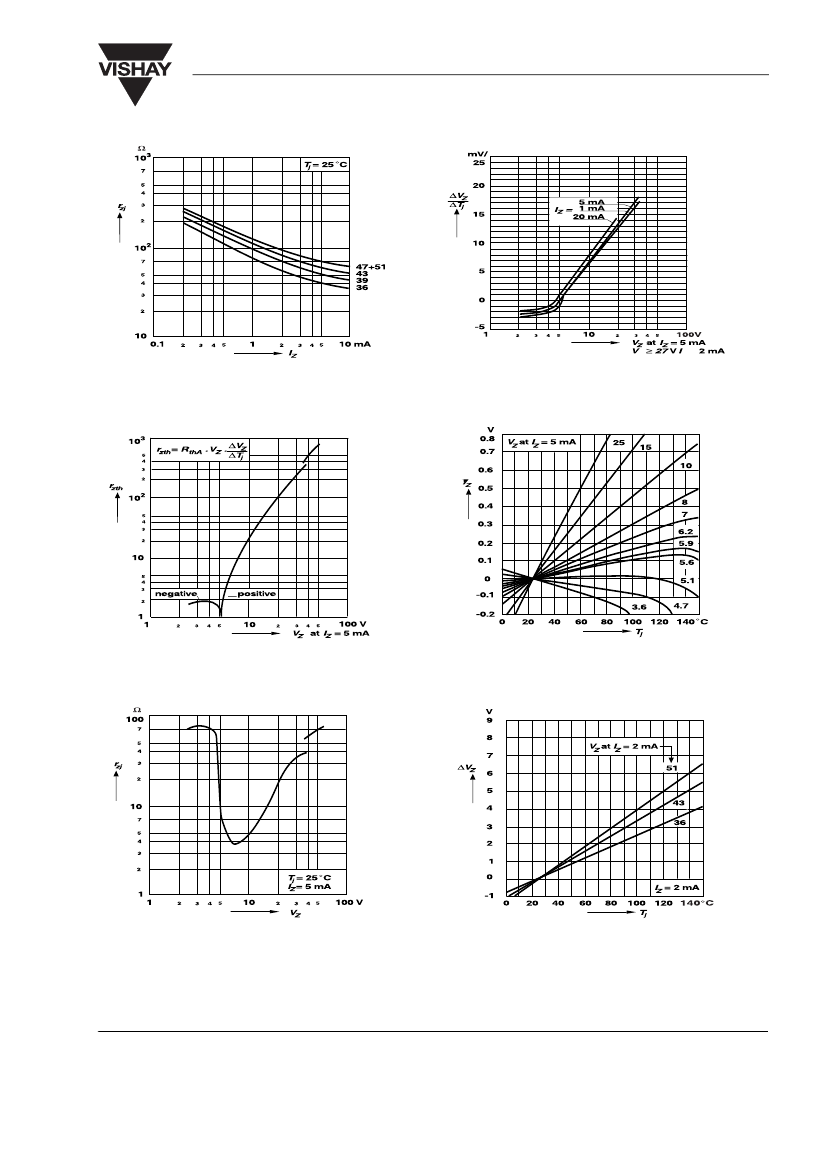

BZX384B3-V-GS08 Related Products

	BZX384B3-V-GS08	BZX384C3-V-GS08	BZX384B3-V-GS18	BZX384B3-V	BZX384C3-V-GS18	BZX384C3-V
Description	DIODE 3 V, 0.2 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, LEAD FREE, PLASTIC PACKAGE-2, Voltage Regulator Diode	DIODE 3 V, 0.2 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, LEAD FREE, PLASTIC PACKAGE-2, Voltage Regulator Diode	DIODE 3 V, 0.2 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, LEAD FREE, PLASTIC PACKAGE-2, Voltage Regulator Diode	DIODE 3 V, 0.2 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, LEAD FREE, PLASTIC PACKAGE-2, Voltage Regulator Diode	DIODE 3 V, 0.2 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, LEAD FREE, PLASTIC PACKAGE-2, Voltage Regulator Diode	DIODE 3 V, 0.2 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, LEAD FREE, PLASTIC PACKAGE-2, Voltage Regulator Diode
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Vishay	Vishay	Vishay	Vishay	Vishay	Vishay
package instruction	R-PDSO-G2	R-PDSO-G2	R-PDSO-G2	R-PDSO-G2	R-PDSO-G2	R-PDSO-G2
Contacts	2	2	2	2	2	2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE
JESD-30 code	R-PDSO-G2	R-PDSO-G2	R-PDSO-G2	R-PDSO-G2	R-PDSO-G2	R-PDSO-G2
JESD-609 code	e3	e3	e3	e3	e3	e3
Humidity sensitivity level	1	1	1	1	1	1
Number of components	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL
Maximum power dissipation	0.2 W	0.2 W	0.2 W	0.2 W	0.2 W	0.2 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal reference voltage	3 V	3 V	3 V	3 V	3 V	3 V
surface mount	YES	YES	YES	YES	YES	YES
technology	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	40	40	40	40	40	40
Maximum voltage tolerance	2%	5%	2%	2%	5%	5%
Working test current	2 mA	6.67 mA	2 mA	2 mA	6.67 mA	6.67 mA
