BTA12 Series
TRIAC
FEATURE
Glass passivated triacs in a plastic TO220 package.
The bta12 series is suitable for general purpose.
They can be used as an ON/OFF function in
applications such as static relays,heating regulation,
induction motor starting circuits... or for
phaseoperation in light dimmers, motorspeed
controllers,...
Compliance to RoHS.
A2
A1
G
ABSOLUTE MAXIMUM RATINGS
Value
BTA12-600B BTA12-800B
V
DRM
V
RRM
I
T(RMS)
I
TSM
T
stg
T
j
Repetitive peak off-state voltage
Repetitive peak reverse voltage
RMS on-state current
Non-repetitive peak on-state current
Storage temperature range
Operating junction temperature
600
600
12
120
-45 to +150
110
800
800
V
A
A
°C
°C
Symbol
Ratings
Unit
THERMAL CHARACTERISTICS
Symbol
R
∂j-c
R
∂j-a
Ratings
Thermal resistance junction to case
Thermal resistance junction to ambient
Value
≤
2.3
≤
60
Unit
°C/W
29/09/2012
COMSET SEMICONDUCTORS
1|3
SEMICONDUCTORS
BTA12 Series

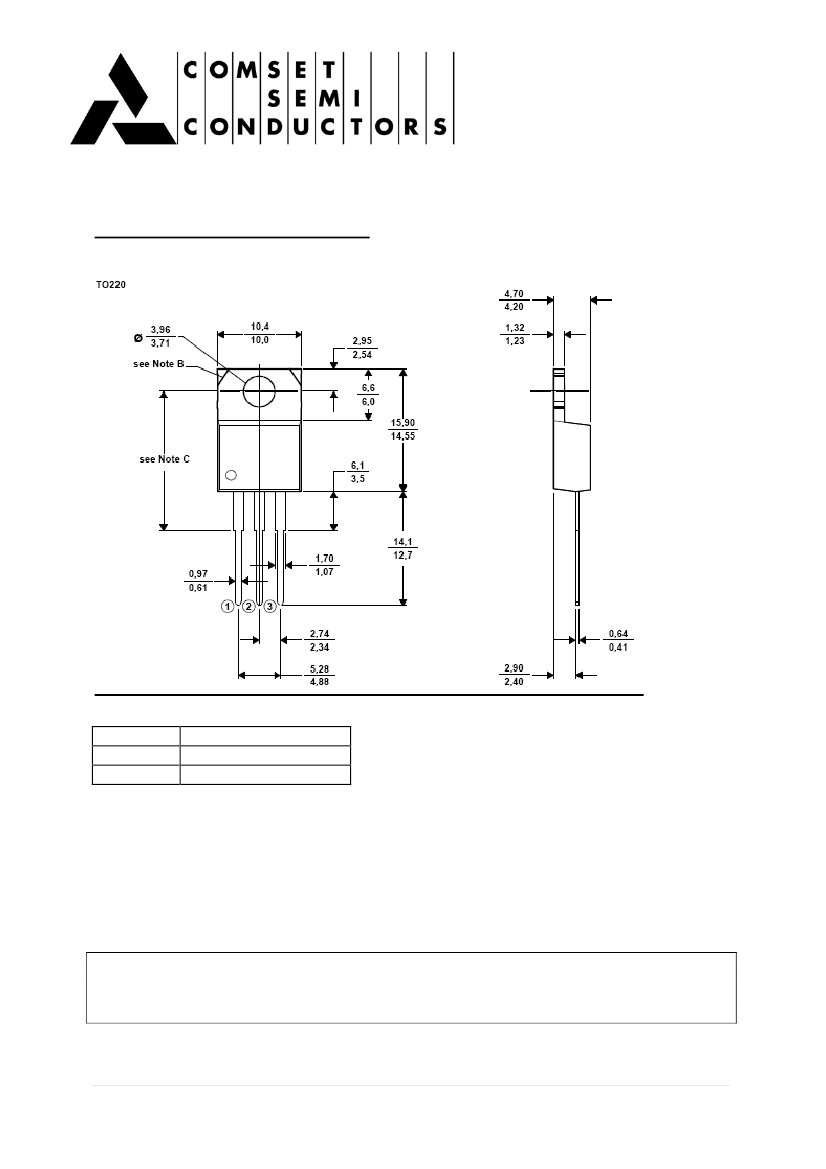

MECHANICAL DATA CASE TO-220
Pin 1 :
Pin 2 :
Pin 3 :
Anode 1
Anode 2
Gate
Revised August 2012
Information furnished is believed to be accurate and reliable. However, Comset Semiconductors assumes no responsibility for the consequences of
use of such information nor for any infringement of patents or other rights of third parties which may results from its use. Data are subject to change
without notice. Comset Semiconductors makes no warranty, representation or guarantee regarding the suitability of its products for any particular
purpose, nor does Comset Semiconductors assume any liability arising out of the application or use of any product and specifically disclaims any
and all liability, including without limitation consequential or incidental damages. Comset Semiconductors’ products are not authorized for use as
critical components in life support devices or systems.
www.comsetsemi.com
29/09/2012
COMSET SEMICONDUCTORS
info@comsetsemi.com
3|3
