LT1125MJ/883 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> LT1125MJ/883

LT1125MJ/883: DescriptionIC IC,OP-AMP,QUAD,BIPOLAR,DIP,14PIN,CERAMIC, Operational Amplifier; CategoryAnalog mixed-signal IC Amplifier circuit; File Size234KB，2 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric Compare View All

LT1125MJ/883 Overview

IC IC,OP-AMP,QUAD,BIPOLAR,DIP,14PIN,CERAMIC, Operational Amplifier

LT1125MJ/883 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Linear ( ADI )
Parts packaging code	DIP
package instruction	DIP, DIP14,.3
Contacts	14
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.03 µA
frequency compensation	YES
Maximum input offset voltage	290 µV
JESD-30 code	R-XDIP-T14
JESD-609 code	e0
low-dissonance	YES
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	4
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-15 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
minimum slew rate	2 V/us
Maximum slew rate	13 mA
Supply voltage upper limit	22 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Minimum voltage gain	700000

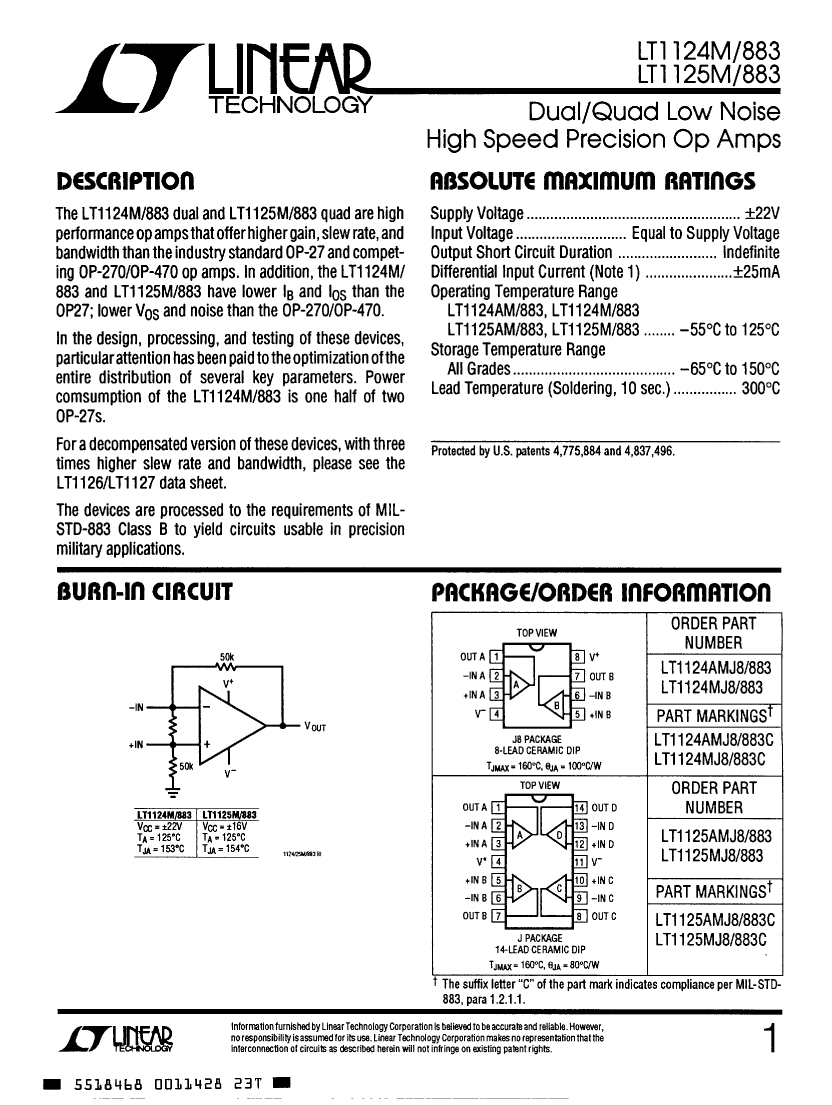

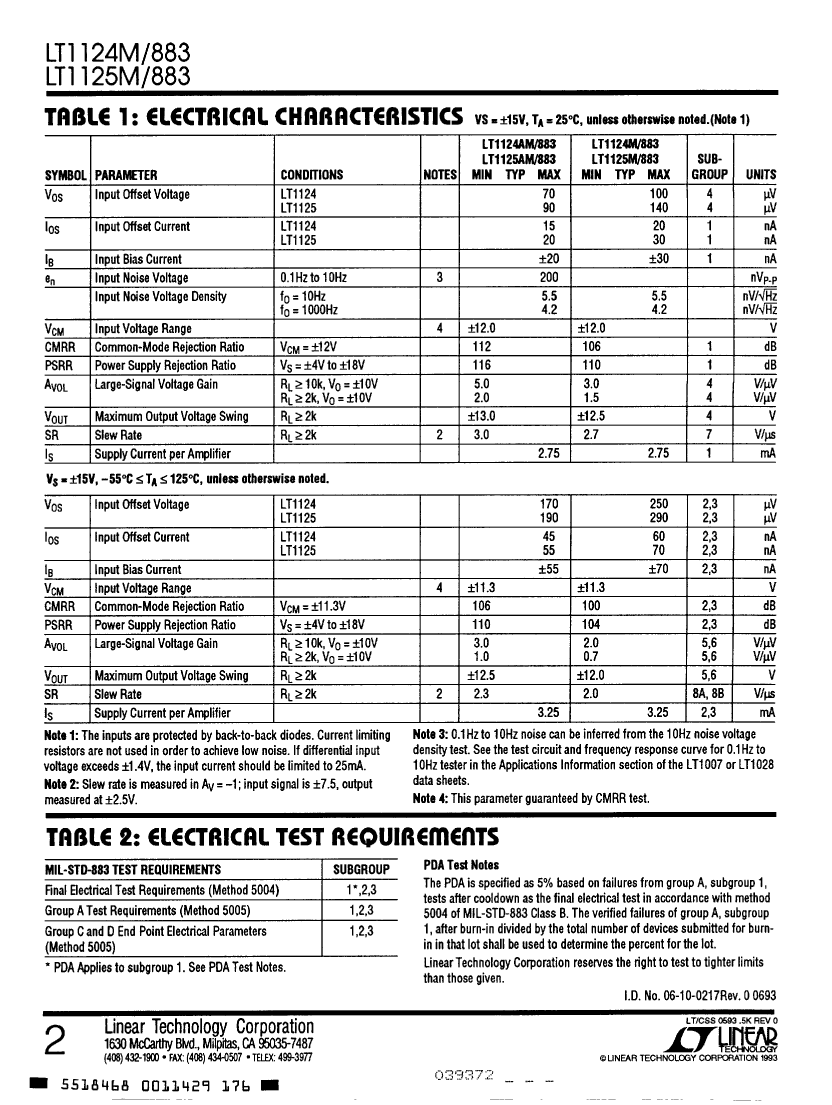

LT1125MJ/883 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

LT1125MJ/883 Related Products

	LT1125MJ/883	LT1124MJ8/883	LT1124AMJ8/883	LT1125AMJ/883	LT1125AMJ/883C	LT1125MJ/883C
Description	IC IC,OP-AMP,QUAD,BIPOLAR,DIP,14PIN,CERAMIC, Operational Amplifier	IC IC,OP-AMP,DUAL,BIPOLAR,DIP,8PIN,CERAMIC, Operational Amplifier	IC IC,OP-AMP,DUAL,BIPOLAR,DIP,8PIN,CERAMIC, Operational Amplifier	IC IC,OP-AMP,QUAD,BIPOLAR,DIP,14PIN,CERAMIC, Operational Amplifier	IC IC,OP-AMP,QUAD,BIPOLAR,DIP,14PIN,CERAMIC, Operational Amplifier	IC IC,OP-AMP,QUAD,BIPOLAR,DIP,14PIN,CERAMIC, Operational Amplifier
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )
Parts packaging code	DIP	DIP	DIP	DIP	DIP	DIP
package instruction	DIP, DIP14,.3	DIP, DIP8,.3	DIP, DIP8,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3
Contacts	14	8	8	14	14	14
Reach Compliance Code	unknown	unknown	unknown	unknown	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.03 µA	0.03 µA	0.02 µA	0.02 µA	0.02 µA	0.03 µA
frequency compensation	YES	YES	YES	YES	YES	YES
Maximum input offset voltage	290 µV	250 µV	170 µV	190 µV	190 µV	290 µV
JESD-30 code	R-XDIP-T14	R-CDIP-T8	R-CDIP-T8	R-XDIP-T14	R-XDIP-T14	R-XDIP-T14
JESD-609 code	e0	e0	e0	e0	e0	e0
low-dissonance	YES	YES	YES	YES	YES	YES
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of functions	4	2	2	4	4	4
Number of terminals	14	8	8	14	14	14
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP14,.3	DIP8,.3	DIP8,.3	DIP14,.3	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	MIL-STD-883 Class B	MIL-STD-883 Class B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
minimum slew rate	2 V/us	2 V/us	2.3 V/us	2.3 V/us	2.3 V/us	2 V/us
Maximum slew rate	13 mA	6.5 mA	6.5 mA	13 mA	13 mA	13 mA
Supply voltage upper limit	22 V	22 V	22 V	22 V	22 V	22 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Minimum voltage gain	700000	700000	1000000	1000000	1000000	700000
