PDW-8996-03-NNN-05 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> PDW-8996-03-NNN-05

Preview

PDW-8996-03-NNN-05: DescriptionRF/Microwave Splitter/Combiner, 890 MHz - 960 MHz RF/MICROWAVE SPLITTER, 0.3 dB INSERTION LOSS; CategoryWireless rf/communication Radio frequency and microwave; File Size59KB，1 Pages; ManufacturerArtysen Embedded Technologies

Download Datasheet Parametric View All

PDW-8996-03-NNN-05 Overview

RF/Microwave Splitter/Combiner, 890 MHz - 960 MHz RF/MICROWAVE SPLITTER, 0.3 dB INSERTION LOSS

PDW-8996-03-NNN-05 Parametric

Parameter Name	Attribute value
Maker	Artysen Embedded Technologies
Reach Compliance Code	unknown
Other features	N-F, ISOLATION-MIN (DB):20
structure	COAXIAL
Maximum input power (CW)	40 dBm
Maximum insertion loss	0.3 dB
Maximum operating frequency	960 MHz
Minimum operating frequency	890 MHz
RF/Microwave Device Types	SPLITTER
Maximum voltage standing wave ratio	1.3

Preview

Download Datasheet

View All

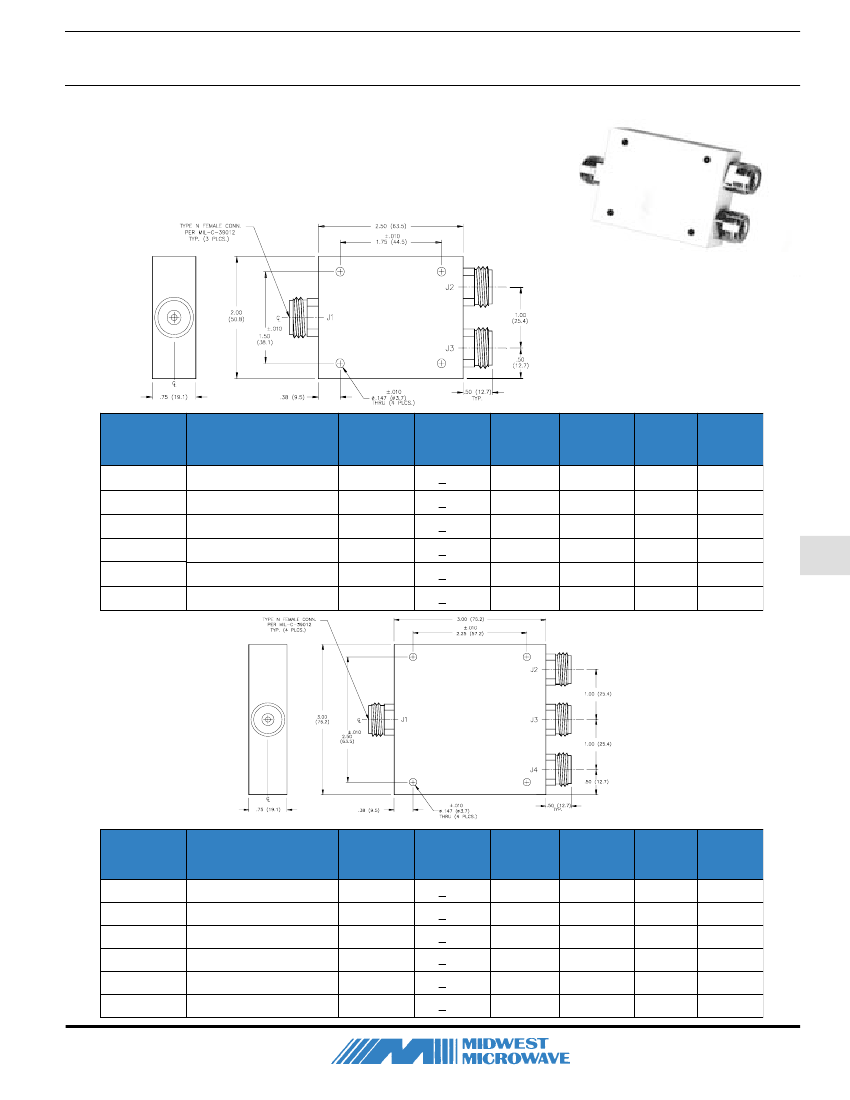

Wireless - Cellular Products

2 & 3 Way - Type N Connector Interface

•

Wireless Frequency Bands

PCS and Cellular applications

Excellent Phase and Amplitude Tracking

Low VSWR - High Isolation

Power Dividers

2 Way

Type N

Frequency

R an g e

(MH z )

800 - 900

800 - 960

890 - 960

1429 - 1501

1700 - 1990

2400 - 2500

Model N umber

PD W-8090-02-N N N -05

PD W-8096-02-N N N -05

PD W-8996-02-N N N -05

PD W-1415-02-N N N -05

PD W-1719-02-N N N -05

PD W-2425-02-N N N -05

Amplitude

B alance

(dB )

0.2

P h ase

B alance

(deg)

+ 3.0

+ 5.0

Insertion

L o ss

(dB )max

0.25

0.30

0.35

Isolation

(dB )min

20

VSWR

(max)

1.20

Input

P o w er

(W)max

10.0

3 Way

Type N

Frequency

R an g e

(MH z )

800 - 900

800 - 960

890 - 960

1429 - 1501

1700 - 1990

2400 - 2500

Model N umber

PD W-8090-03-N N N -05

PD W-8096-03-N N N -05

PD W-8996-03-N N N -05

PD W-1415-03-N N N -05

PD W-1719-03-N N N -05

PD W-2425-03-N N N -05

Amplitude

B alance

(dB )

0.3

P h ase

B alance

(deg)

+ 5.0

+ 7.0

Insertion

L o ss

(dB )max

0.30

0.40

0.50

Isolation

(dB )min

20

VSWR

(max)

1.30

Input

P o w er

(W)max

10.0
