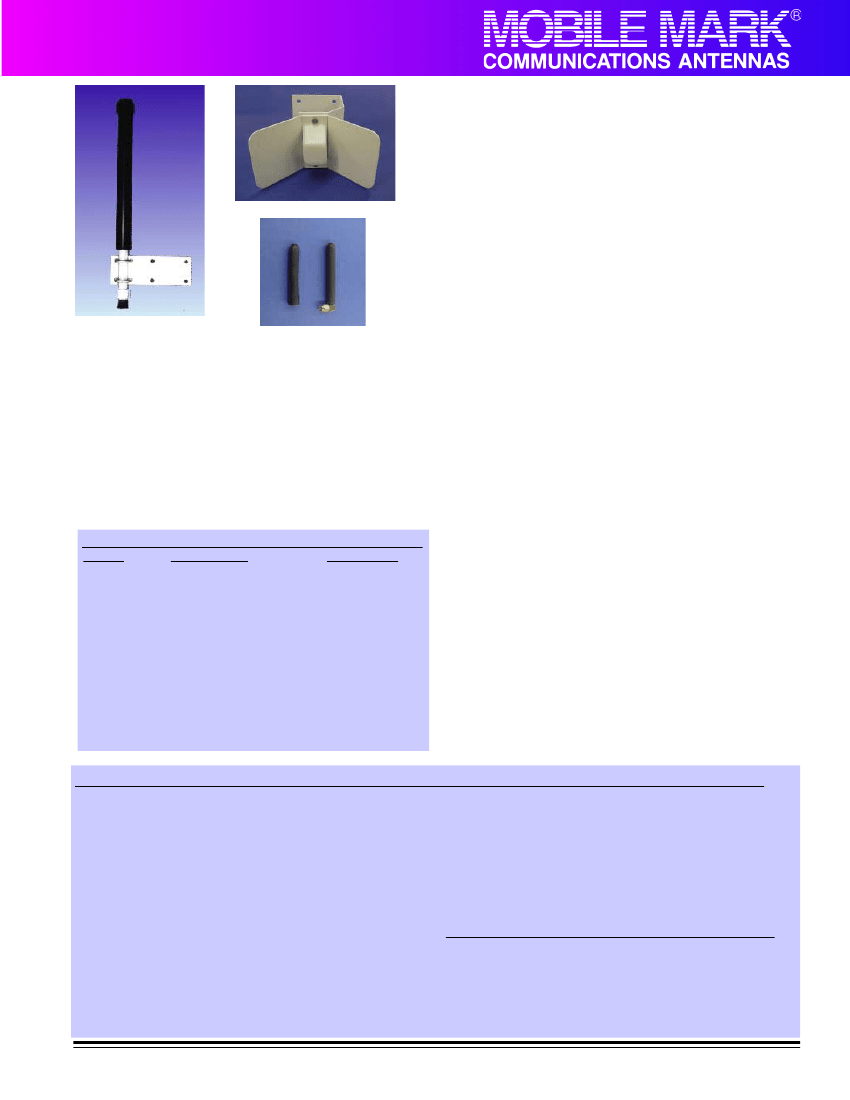

Product
Specifications
5 GHz Antennas
(Pat.Pend.)
Omni, Directional & Device
s
14 dBi Corner Reflector for point to
point applications
SCR Directional Series
s
6 & 9 dBi Omni for multipoint
applications
s
2.2 dBi Portable/Device Antenna
OD Series
Device Series
Straight & 90
o
Right Angle
s
Models available for 5.15 - 5.83 GHz
band. The panels are weather protected with white
powder-coat, each is only 3" x 3". The element is pro-
tected in an ABS radome. The female N connector exits
at the back. Mounting hardware is provided for pole,
surface and corner mount.
The omni antennas use an array of uniquely phased
elements. They provide a uniform pattern and excellent
frequency response. The array is enclosed in black
polycarbonate. Windloading on the antennas is negli-
gible. Hardware allows pole, ceiling or surface/offset
mount. The antennas terminate with a female N connec-
tor.
The PSTN Series device antennas provide a great
solution for laptops, NICS, and access point products.
These antennas are matched half-wave designs, provid-
ing up to 2.2 dBi gain. Radiation pattern is omni with a
broad vertical "donut". The antennas require no
groundplane for operation. The lower band model
radome is 2.5" (7 cm), the upper band model is only 2.3"
(6 cm). Both use a PVC jacket, stylized injection mold
can be accommodated. The connector is a male SMA.
This is a new product with limited availability at the
present.
Mobile Mark's high frequency antennas are designed for
new microwave systems, including U-NII networking.
These advanced designs accommodate the high-speed
wideband performance.
The Corner reflectors use a half-wave element. A unique
balun fed design provides high efficiency without skewing
the radiation pattern. The result is excellent bandwidth,
gain and match. One model covers both of the lower
bands (5.15 - 5.35 GHz) and another covers the upper
Model Numbers
Model
Description
SCR14-5150 14 dBi Corner Reflector
SCR14-5725 14 dBi Corner Reflector
ODN6-5250 6 dBi Omnidirectional
ODN9-5250 9 dBi Omnidirectional
ODN9-5725 9 dBi Omnidirectional
Frequency
5.15-5.35 GHz
5.72-5.83 GHz
5.15-5.35 GHz
5.15-5.35 GHz
5.72-5.83 GHz
PSTN3-5250 2.2 dBi Straight Dipole 5.15-5.35 GHz
PSTN3-5725 2.2 dBi Straight Dipole 5.72-5.83 GHz
PSWN3-5250 2.2 dBi 90
o
Dipole
5.15-5.35 GHz
o
PSWN3-5725 2.2 dBi 90 Dipole
5.72-5.83 GHz
Special configurations are available upon request.
Please consult factory for more information.
Specifications
Frequency/Gain:
Bandwidth @2:1 SWR:
Impedance:
Max Power:
ODN6 Beamwidth:
ODN9 Beamwidth:
SCR Series Beamwidth:
Front-to-Back ratio:
Lightning Protection:
SCR Series Aperture:
SCR Panel Size:
ODN6 Antenna Size:
ODN9 Series Size:
Max Wind Velocity:
SCR Series Material:
See above
200 MHz or better
50 Ohm nominal
100 Watts (ODN/SCR Series)
25
o
vertical, 360
o
horizontal
14
o
vertical, 360
o
horizontal
30
o
vertical, 60
o
horizontal
30 dB for SCR Series
External recommended
3"x5.5" (8x14 cm) front face
3"x3"(8x8 cm) each
14"L x1" (36 x 3 cm) OD
18"L x1" (46 x3 cm) OD
100 mph, all models
Powder Coated aluminum,
ABS radome
Polycarbonate radome &
irridited aluminum feed
Weight:
<1 lbs, ODN/SCR models
Mounting:
Pole, surface mount,
hardware included.
Mounting Dimension:
Mounts up to 2"(5 cm) mast
Connector, ODN & SCR:
N female
Device Series Unique Specifications - Preliminary
5250 Models :
2.6"Lx0.5"D (7x1.3 cm)
5725 Models Size:
2.2"Lx0.5"D (6x1.3 cm)
Max Power:
10 Watts
Connector:
SMA Male, Straight or 90
o
PSTN Material:
PVC Jacket
Frequency/Gain:
See above
ODN Series Material:
US Office & Headquarters: 3900-B River Road, Schiller Park, IL 60176 Tel: 800-648-2800 or 847-671-6690 Fax: 847-671-6715
UK Office: 106-108 Anglesey Business Park Hednesford, Staffs WS12 5NR Phone (+44) 1543-878343 Fax (+44) 1543-871714
Visit our web page at www.mobilemark.com. Specifications subject to change without notice (08/2001).
