LS320(TO-92)

Description
Transistor
CategoryDiscrete semiconductor    The transistor
File Size291KB,1 Pages
ManufacturerMicross
Websitehttps://www.micross.com
Download Datasheet Parametric View All

LS320(TO-92) Overview

Transistor

LS320(TO-92) Parametric

Parameter NameAttribute value
MakerMicross
package instruction,
Reach Compliance Codecompliant

LS320(TO-92) Preview

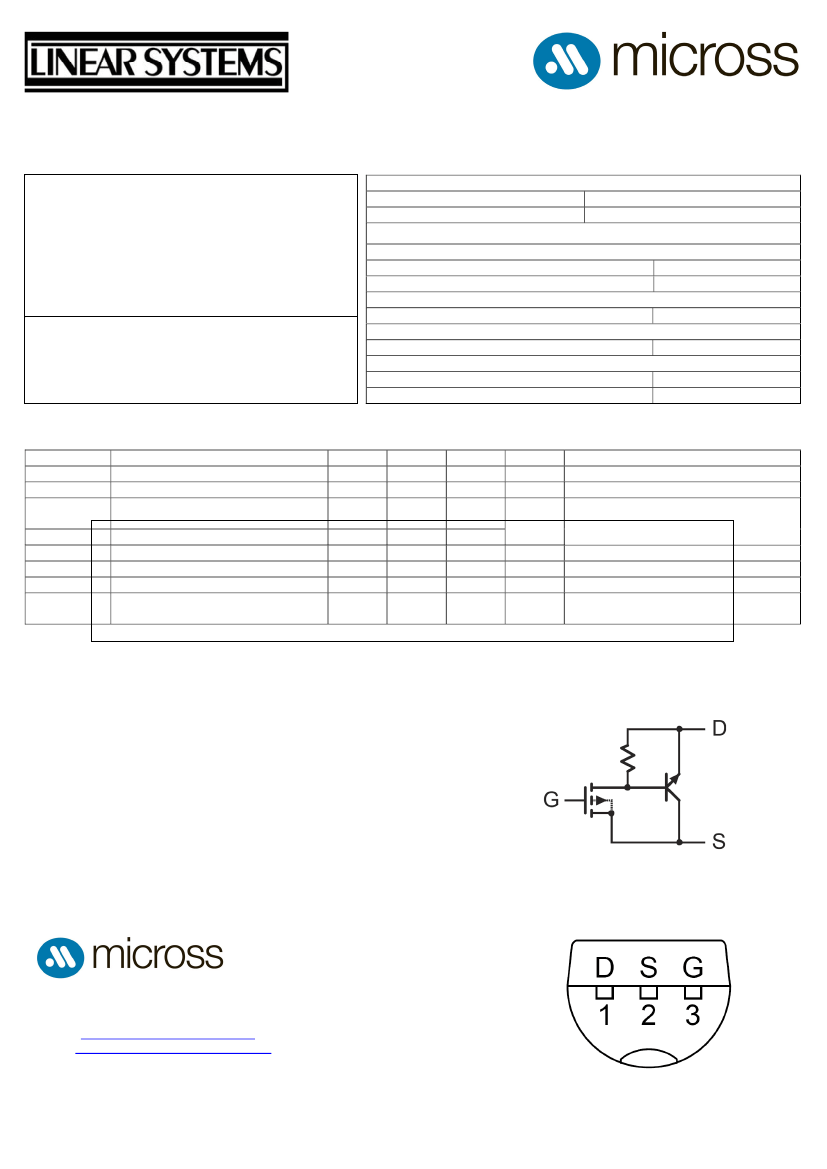

LS320
BiFET Amplifier
Linear Systems High Input Impedance BiFET Amplifier
The LS320 is a high input impedance amplifier
produced using a BiFET process and packaged in
TO-92.
The TO-92 package is well suited for cost sensitive
applications and mass production.
(See Packaging Information).
LS320 Features:
High Input Impedance
High Transconductance
FEATURES
HIGH INPUT IMPEDANCE
r
Gs
 ≥ = 100GΩ
HIGH TRANSCONDUCTANCE
Y
FS
 = 30,000µS
1
ABSOLUTE MAXIMUM RATINGS
@ 25°C (unless otherwise noted)
Maximum Temperatures
Storage Temperature
Operating Junction Temperature
Maximum Power Dissipation
Continuous Power Dissipation @ +125°C
Maximum Currents
Drain Current
Maximum Voltages
Drain to Source
Gate to Source

‐65°C to +150°C
‐55°C to +125°C
200mW
2.3mW/°C
I
D
 = 25mA
V
DSO
= 20V
V
GSS
= 20V


ELECTRICAL CHARACTERISTICS @ 25°C (unless otherwise noted)
SYMBOL
CHARACTERISTICS
MIN.
V
DS

Drain to Source Voltage
‐20
V
GS

Collector to Source Voltage
‐12
g
fs

Common Source Forward
30000
Transconductance
g
oss

Common Source Output Conductance
‐‐
r
Gs

Gate to Source Input Resistance
100
C
ISS

Input Capacitance
‐‐
C
RSS

Reverse Transfer Capacitance
‐‐
e
n

Noise Voltage
‐‐
TYP.
‐‐
‐10
‐‐
300
‐‐
1.5
25
MAX.
‐‐
‐7
‐‐
‐‐
‐‐
‐‐
‐‐
‐‐
UNITS
µS
Notes:
1. Absolute Maximum ratings are limiting values above which serviceability may be impaired
2. The gate to source voltage must never exceed 100V, t < 10ms
3. Additional screening available




Click To Buy
Functional Schematic
Available Packages:
LS320 in TO-92
LS320 in bare die.
Please contact Micross for full
package and die dimensions
TO-92 (Bottom View)
GΩ
pA
pF
µV
CONDITIONS
I
DS
= 100µA, V
GS
= 0
I
DS
= 10mA, V
GS
= ‐10V
23


I
DS
= 10mA, V
GS
= ‐10V, f =1kHz

V
GS
= 0 to 20V, T
J
 to 125°C
I
DS
= 100µA, V
DS
= ‐10V
I
DS
= 10mA, V
GS
= ‐10V
I
DS
= 10mA, V
DS
= 10V, BW = 50 to 15 kHz

Micross Components Europe
Tel: +44 1603 788967
Email:
chipcomponents@micross.com
Web:
http://www.micross.com/distribution
