DF2S5.1FS
ESD Protection Diodes
Silicon Epitaxial Planar
DF2S5.1FS
1. Applications
•
ESD Protection
This product is designed for protection against electrostatic discharge (ESD) and is not intended for any other
purpose, including, but not limited to, voltage regulation.
Note:
2. Packaging and Internal Circuit
1 : Cathode
2 : Anode
fSC
25
3. Absolute Maximum Ratings (Note) (Unless otherwise specified, T
a
= 25
)
Characteristics
Electrostatic discharge voltage (IEC61000-4-2)(Contact)
Junction temperature
Storage temperature
Symbol
V
ESD
T
j
T
stg
Rating
±30
150
-55 to 150
Unit
kV
Note:
Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the
significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even
if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum
ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
("Handling Precautions"/"Derating Concept and Methods") and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).
1
2013-08-06
Rev.2.0
DF2S5.1FS
4. Electrical Characteristics (Unless otherwise specified, T
a
= 25
)
25
V
RWM
: Working peak reverse
voltage
V
BR
: Reverse breakdown voltage
I
BR
: Reverse breakdown current
I
R
: Reverse current
V
C
: Clamp voltage
I
PP
: Peak pulse current
R
DYN
: Dynamic resistance
V
F
: Forward voltage
I
F
: Forward current
V
Z
: Zener voltage
I
Z
: Zener current
Z
Z
: Dynamic impedance
Fig. 4.1 Definitions of Electrical Characteristics
Characteristics
Reverse breakdown voltage
Dynamic impedance
Reverse current
Clamp voltage
Total capacitance
Symbol
V
BR
Z
Z
I
R
V
C
C
t
Note
I
BR
= 5 mA
I
Z
= 5 mA
V
RWM
= 1.5 V
(Note 1) I
PP
= 1 A
V
R
= 0 V, f = 1 MHz
Test Condition
Min
4.8
Typ.
5.1
5.5
45
Max
5.4
70
1
Unit
V
Ω
µA
V
pF
Note 1: Based on IEC61000-4-5 8/20
µs
pulse.
5. Guaranteed ESD Protection (Note)
Test Condition
IEC61000-4-2 (Contact discharge)
ESD Protection
±30
kV
Note:
Criterion: No damage to devices.
2
2013-08-06
Rev.2.0
DF2S5.1FS
6. Marking
Fig. 6.1 Marking
7. Land Pattern Dimensions (for reference only)
Fig. 7.1 Land Pattern Dimensions (Unit: mm)
3
2013-08-06
Rev.2.0
DF2S5.1FS

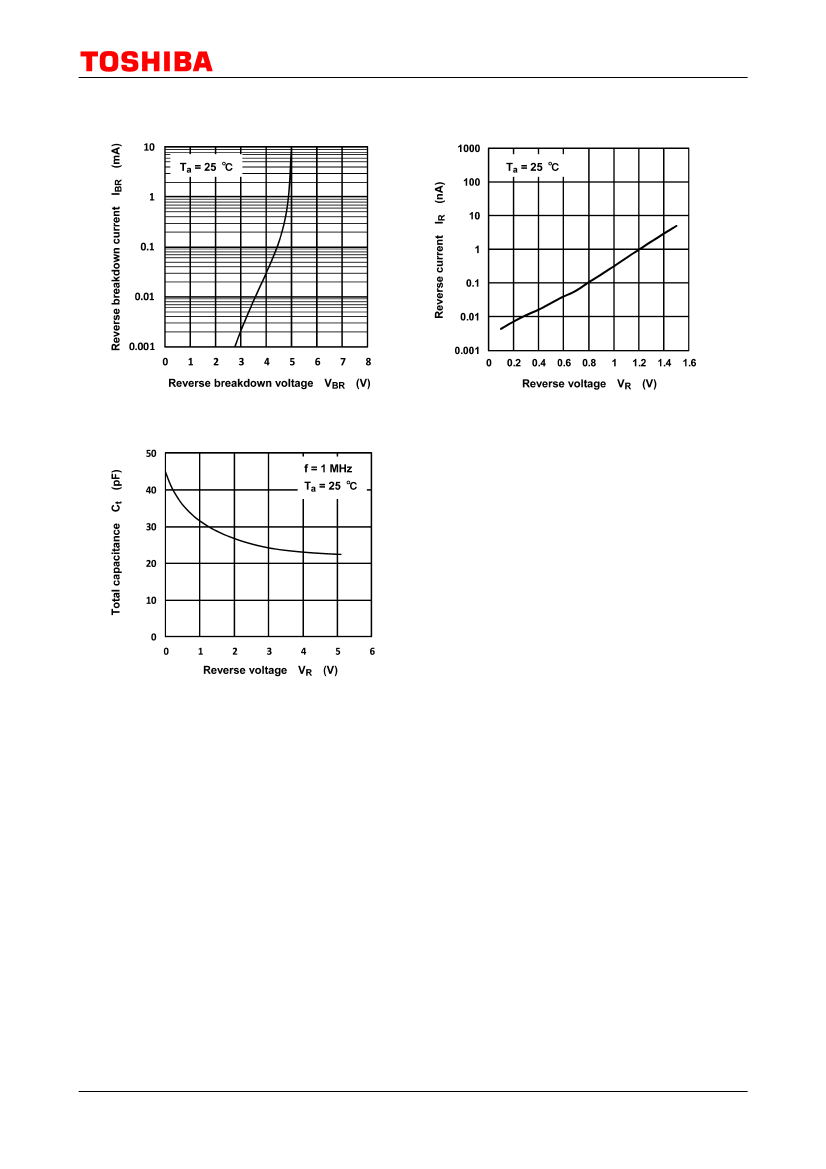

8. Characteristics Curves (Note)
Fig. 8.1 I
BR
- V
BR
Fig. 8.2 I
R
- V
R
Fig. 8.3 C
t
- V
R
Note:
The above characteristics curves are presented for reference only and not guaranteed by production test,
unless otherwise noted.
4
2013-08-06
Rev.2.0
DF2S5.1FS
9. Clamp Voltage V
C
- Peak Pulse Current (I
PP
) (Note)
Fig. 9.1 V
C
- I
PP
Note:
Fig. 9.2 Based on IEC61000-4-5 8/20
µ
s pulse.
The above characteristics curves are presented for reference only and not guaranteed by production test,
unless otherwise noted.
5
2013-08-06
Rev.2.0
