BL-HD1X1B423T-TR datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> BL-HD1X1B423T-TR

BL-HD1X1B423T-TR: DescriptionTriple Color LED, Super Red/high Efficiency Green/super Blue, Diffused White, 2mm, PLASTIC PACKAGE-4; CategoryLED optoelectronic/LED photoelectric; File Size300KB，6 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/

Download Datasheet Parametric Compare View All

BL-HD1X1B423T-TR Overview

Triple Color LED, Super Red/high Efficiency Green/super Blue, Diffused White, 2mm, PLASTIC PACKAGE-4

BL-HD1X1B423T-TR Parametric

Parameter Name	Attribute value
Maker	BRIGHT
package instruction	PLASTIC PACKAGE-4
Reach Compliance Code	unknown
color	SUPER RED/HIGH EFFICIENCY GREEN/SUPER BLUE
Configuration	COMMON ANODE, 3 ELEMENTS
Maximum forward current	0.03 A
Lens type	DIFFUSED WHITE
Nominal luminous intensity	30.0/25.0/60.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	4
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	TRIPLE COLOR LED
total height	1.1 mm
method of packing	TAPE AND REEL
peak wavelength	660/568/470 nm
shape	RECTANGULAR
size	2 mm
surface mount	YES
perspective	140 deg

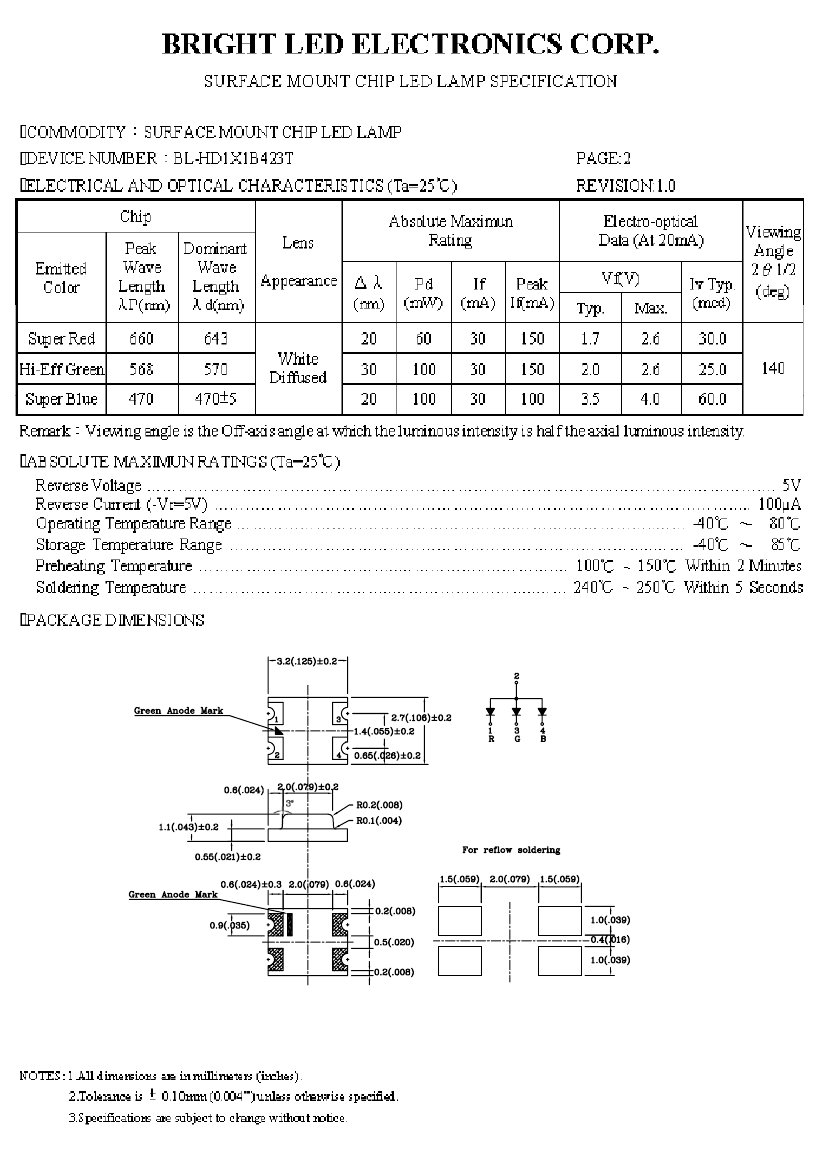

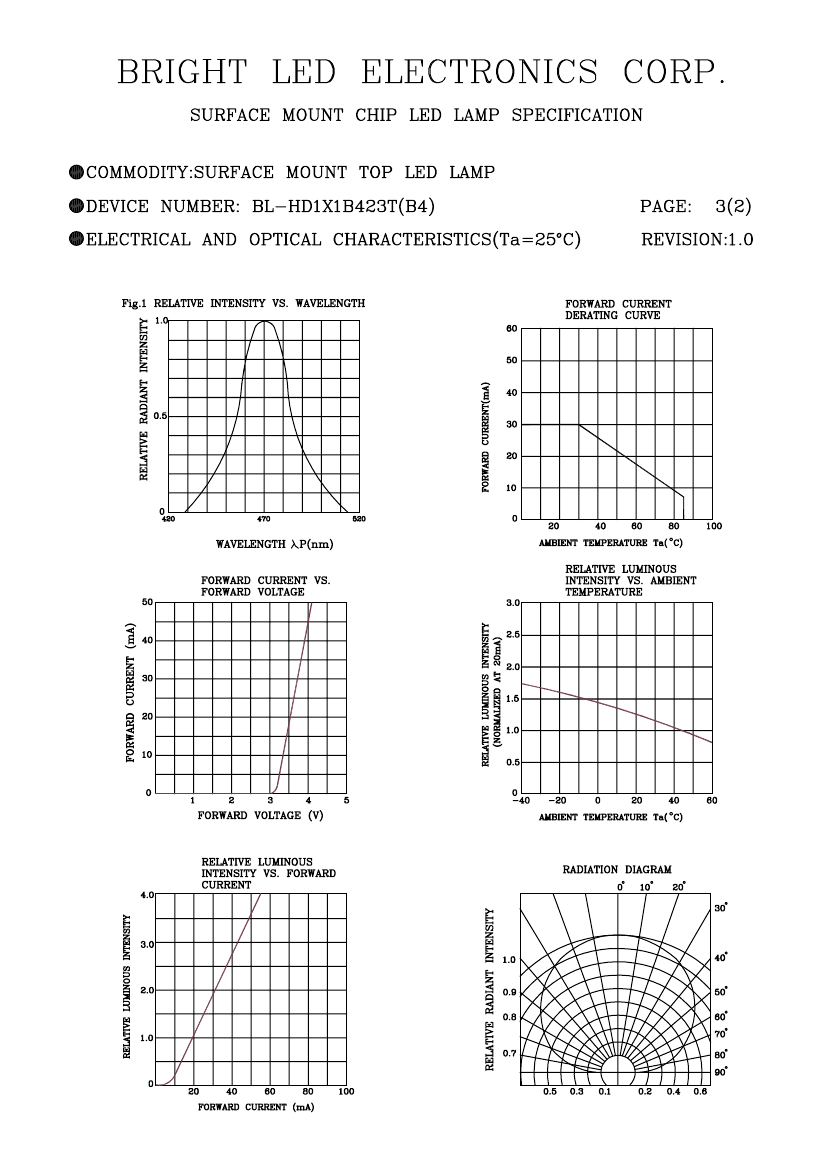

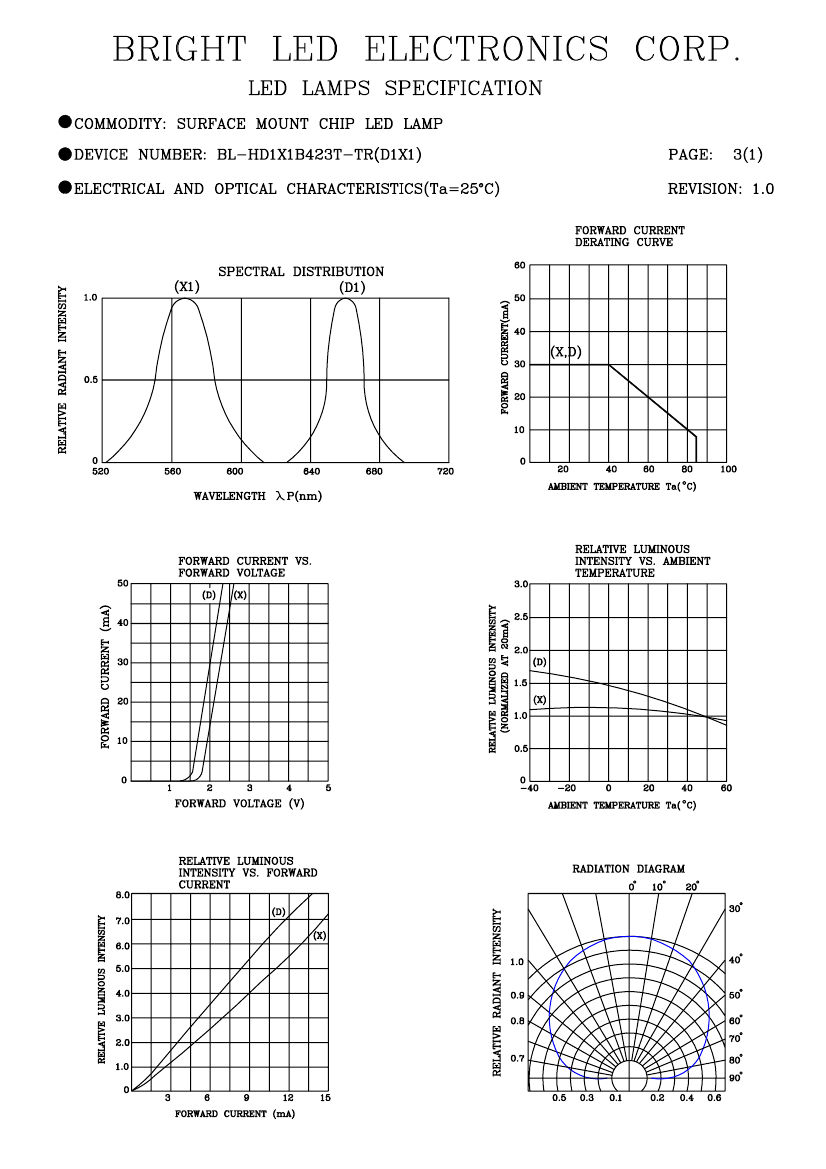

BL-HD1X1B423T-TR Preview

!" # "$%$&'()

# "$%$**+'

, &( -$

45/

! # "$%$((+-

45/4 6 , &( -$

45/

# "$%$**+*

, &( -$

! , $$&( -$(

! # "$%$((&%

# "$%$&''

# "$%$**+

, &( $

//; # "$%$((&%

# "$%$&''

# "$%$**+

# "$%$(((

# "$%$&'(+

, &( $

,1%#

@@ "1@

4" - " A

# 5

, 5

@.<5

= ?

<1>(

= ?

<1>(

" 6

<=?

-.C'

1/ !!!/ <

(# /B;B.(/ /!/<B

B!/

./!. 0(

01!

02/

07)''

4089$8'9

02/

45/07*''

02/

".0$+''

02/

$+' :7(' :7*' :7('

)( ) (

0'6

7*'' :$+''

( (

$)2./(

!/5

(+'

=#>?2./

=#>?

!"#$""!"$%!"&! !"!'(()*+,-

."!'%/%$%0%"&&%1

!" 2(34(

5."!,#"%

$"!" ,'*) 6-."!(%/%) 7-

)18/! -

TEMPERATURE

10 SEC. MAX.

235 C MAX.

140~160 C

4 C/SEC. MAX.

OVER 2 MIN.

TIME

% )91 -

!" ,(3*(5."!,(3:(%/

$"!" ,2*

."!*%/,4( ) 7-

)18/! -

TEMPERATURE

Soldering heat Max. 260 C

245

120~150 C

Preheat

120~180 sec.

5 C within 5 sec.

TIME

#%"&";""/%""!$7<%$"

%.!"%7$%"! !"#$"

#%"&";"&"!$7<%$"=

%."!!

%!$"/%/!%"!%&%""!#"!;

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

BL-HD1X1B423T-TR Related Products

	BL-HD1X1B423T-TR	BL-HD1X1B423T
Description	Triple Color LED, Super Red/high Efficiency Green/super Blue, Diffused White, 2mm, PLASTIC PACKAGE-4	Triple Color LED, Super Red/high Efficiency Green/super Blue, Diffused White, 2mm, PLASTIC PACKAGE-4
Maker	BRIGHT	BRIGHT
package instruction	PLASTIC PACKAGE-4	PLASTIC PACKAGE-4
Reach Compliance Code	unknown	unknown
color	SUPER RED/HIGH EFFICIENCY GREEN/SUPER BLUE	SUPER RED/HIGH EFFICIENCY GREEN/SUPER BLUE
Configuration	COMMON ANODE, 3 ELEMENTS	COMMON ANODE, 3 ELEMENTS
Maximum forward current	0.03 A	0.03 A
Lens type	DIFFUSED WHITE	DIFFUSED WHITE
Nominal luminous intensity	30.0/25.0/60.0 mcd	30.0/25.0/60.0 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1
Number of terminals	4	4
Maximum operating temperature	80 °C	80 °C
Minimum operating temperature	-40 °C	-40 °C
Optoelectronic device types	TRIPLE COLOR LED	TRIPLE COLOR LED
total height	1.1 mm	1.1 mm
method of packing	TAPE AND REEL	BULK
peak wavelength	660/568/470 nm	660/568/470 nm
shape	RECTANGULAR	RECTANGULAR
size	2 mm	2 mm
surface mount	YES	YES
perspective	140 deg	140 deg
